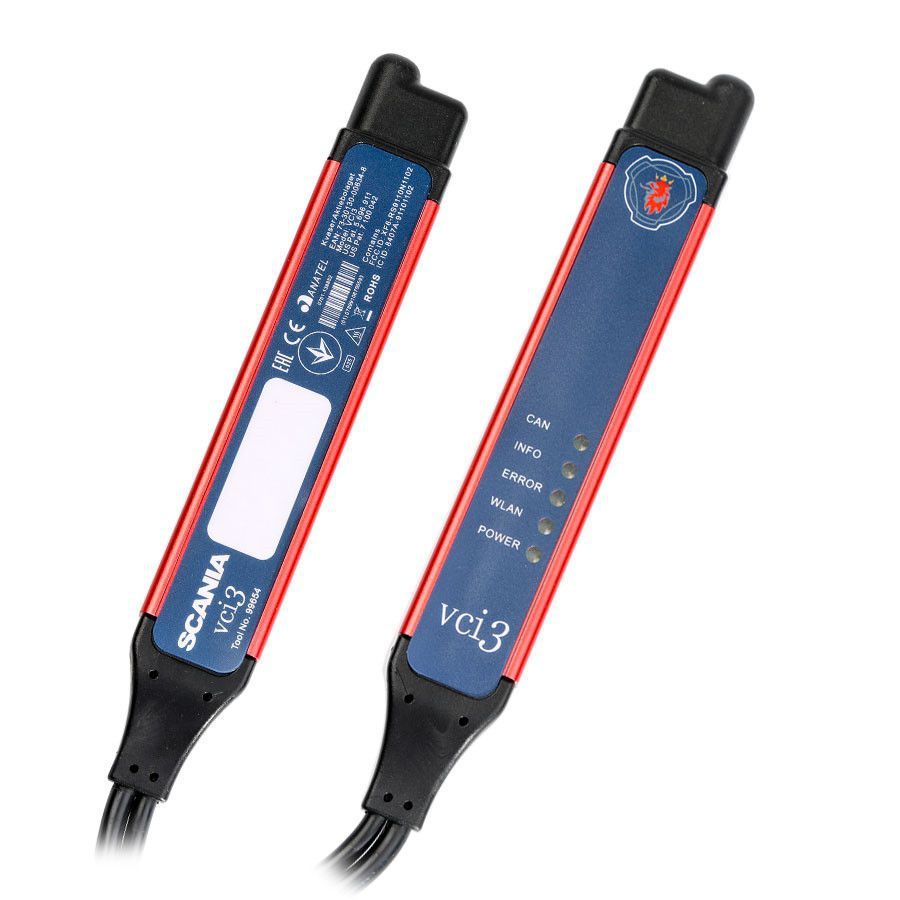

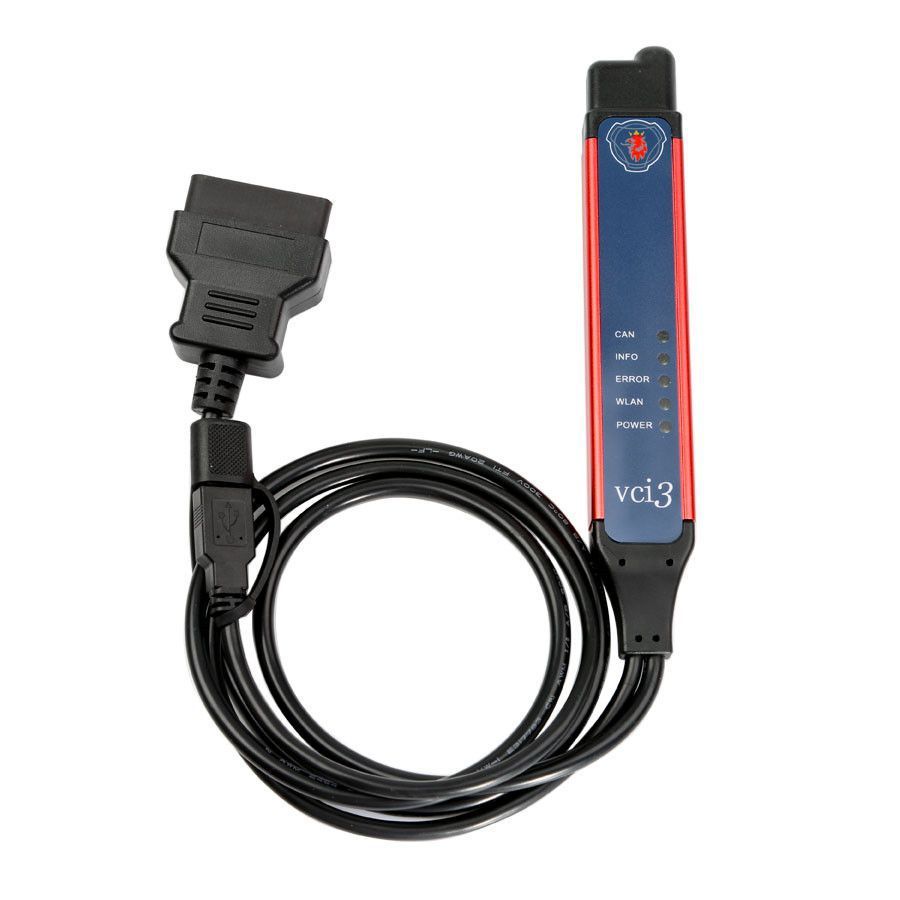

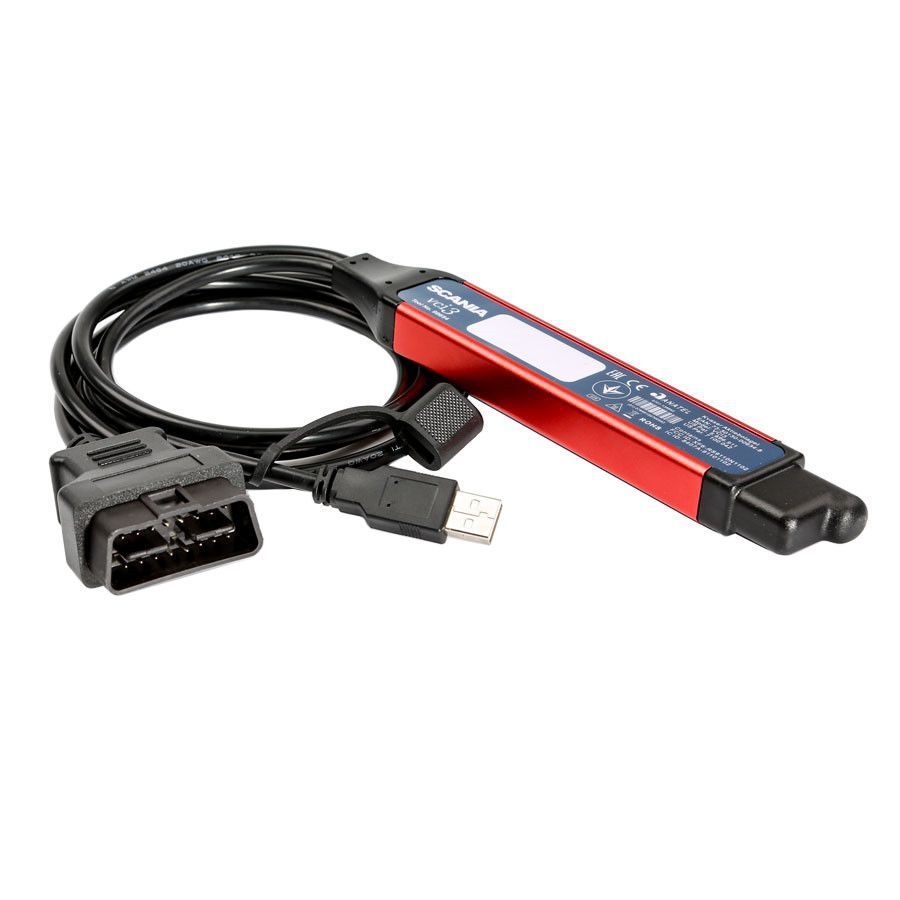

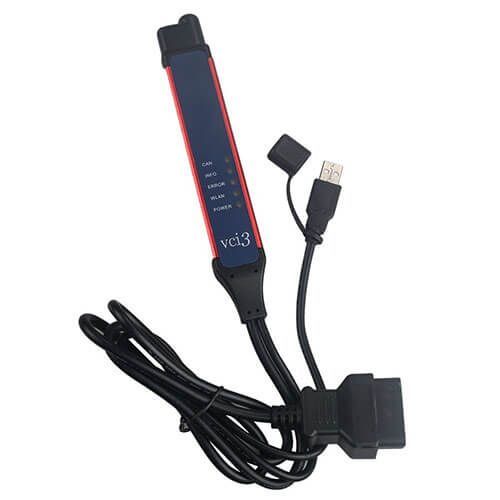

Wifi Wireless Scania VCI3 Adapter Truck Diagnostic Tool + SDP3 Diagnostic Software

SCANIA VCI3 Diagnostic Tester

• VCI3 Support All Scania Trucks, Buses and other Heavy Vehicles or Heavy Duty Engines Made by Scania.  Adapter works in conjunction with software SDP-3.
• Wifi Available. Work through a high-speed WI-FI connection. Also in the device has a USB port.
• With SDP3 Software.Version: V2.53.5 and V2.54.1, V2.58.3 for choose. (Note: software will be downloaded and installed by remote help, and the activation is one time for one pc only) Updatable (Buy New Software)
• Support Languages:English, German, Spanish, French, Japanese, Dutch, Polish, Portuguese, Swedish, Norwegian, Suomi, Turkish, Italian, Czech, Russian, Chinese

SCANIA VCI3 Features:

1. WLAN version 802.11b/g
2. Encryption protocols: WPA2/WPA/WEP128/WEP64
3. USB 2.0 (compatible with USB 1.1)
4. Lightweight aluminum housing with IP67 protection
5. Polyurethane cables for extreme conditions.
6. Operating voltage CAN BUS (7 - 40V DC)

SOPS EDITOR INCLUDED:

Download with SDP3 from truck SOPS export file;
Decrypt SOPS export file to XML format;
Edit XML file with any XML editor;
Modify more than 300 parameters: like AdBlue, EGR, NOx Control, see whole list;
Encrypt XML file to SOPS import file;
Upload SOPS import file to truck with SDP3;
Scania XCOM - is a diagnostic tool to read, save and modify ECU data such as trouble codes, parameters, statistic data etc. VCI2/VCI3 interface is used to connect to ECU via CAN protocol.

Supported modification of ECU data of the following types:

EMS – Engine management system.
GMS – Gearbox management system.
RET – Retarder system.
AWD – All wheel drive system.
CLS – Clutch Control.
EEC – Exhaust Emission Control.
COO (COO7) – Coordinator.
BWS (BCI1) – Bodywork system.

Supported resolving trouble codes to text description for the following types:

EMS (S6, S7, S8).
GMS (OPC4, OPC5).
RET (RET1, RET2).
AWD (AWD1).
EEC (SCR1, EEC3).
COO (COO6, COO7).
HMS (HMS1).

Some Interesting Options (Need Extra XCOM Software):

AdBlue ON/OFF.
EGR ON/OFF.
Chassis ID/VIN Change.
Immobilizer ON/OFF.
Truck Power INCREASE.
ECU Recovery.
ECU Reset.
ECU Unlock.

Scania diagnostic software works with VCI 3 interface:

Highest level access
Internal Scania
Industry & Marine
Authorized Scania Workshops
Bodybuilder

SCANIA VCI3 Package Included:
 1pc x Scania VCI 3 Adapter
