Top 4 Reasons to Get X-PROG M V5.55 Box
- 1. Language: English
- 2. Newest Version: V5.55
- 3. Operating system: Microsoft Windows XP 32-bit or Microsoft Windows 7 64-bit
- 4. NO need dongle, easier to use!
Notice:
- 1. no dongle .
- 2. Close all of the computer anti-software. If not, X-prog software may be killed.
- 3. Disconnect the internet. If not, the internet may damage the hardware.
- 4. Uninstall all the old xprog m, or xprog box software, make sure that your PC only install our software for our xprog box 5.55 , our xprog box hardware cannot work with other lower or higher software. If not, the hardware will be damaged, and will lose its warranty...
- 5. Never try to UPDATE, the hardware will be damaged if you want to try to upgrade it online, without any warranty.
- 6. We cannot refund, cannot exchange, can not repair if you do not listen to those advices. It means that you accept Above conditions once you have ordered our xprog-box. THANK YOU!
- 7. Notice for Xprog-box software version 5.55. Please use our CD software in the package only!!!! If you use other version software (lower or higher) or try to update the software or hardware, the hardware will be damaged, and lose its warranty.
XPROG-M V5.5.5 Authorizations:
AUTH-0001 Motorola HC05 family authorization (allows to read/write EEPROM)
AUTH-0002 Motorola HC08 family authorization (allows to read/write EEPROM)
AUTH-0003 Motorola HC11 family authorization (allows to read/write EEPROM)
AUTH-0004 Motorola HC12, 9S12 family authorization (allows to read/write EEPROM and flash memory)
AUTH-0005 Texas Instruments TMS370/TMS374 family authorization (allows to read/write EEPROM)
AUTH-0006 Motorola HC05Bxx and HC05Xxx family bypass security authorization (allows to read/write secured EEPROM and flash memory)
AUTH-0007 ST M35080 authorization. Read/Write/Erase device to delivery state.
AUTH-0008 BM-W EWS3 authorization
AUTH-0009 ATMEGA family authorization (allows to read/write EEPROM and flash memory)
AUTH-0010 MB ZGS001 authorization
AUTH-0011 Motorola HC11EA9/E9 bypass security authorization (allows to bypass security bit and read EEPROM and RAM memory)
AUTH-0012 National CR16 authorization (allows to read/write EEPROM memory)
AUTH-0014 ST7, ST10 family authorization (allows to read/write internal flash)
AUTH-0015 MPC5xx authorization (depending on device program automatically detects MPC5xx, M95xxx device type, flash, external flash and configuration memory size)
AUTH-0018 Motorola HC12, HC912, MC9S12, MC9S12X bypass security authorization (allows to read/write secured EEPROM and flash memory)
AUTH-0020 ARM (Micronas, ...) Family authorization (allows to read/write internal flash and external serial EEPROM)
AUTH-0021 ARM (Micronas, ...) Family bypass security authorization (allows to read/write secured and non-secured internal flash and external serial EEPROM, view/change mileage,chassis number (VIN), serial number and PIN code).
AUTH-0023-1 MAC7xxx
AUTH-0023-2 XC23xx
AUTH-0024-1 MC9S12Cxx
AUTH-0024-2 MC9S12XE
AUTH-0024-3 9S12XE SECURITY
AUTH-0024-4 MC9S12HA/HY/P
AUTH-0025-1 MPC/SPC5xxx Authorized 11/4/2014

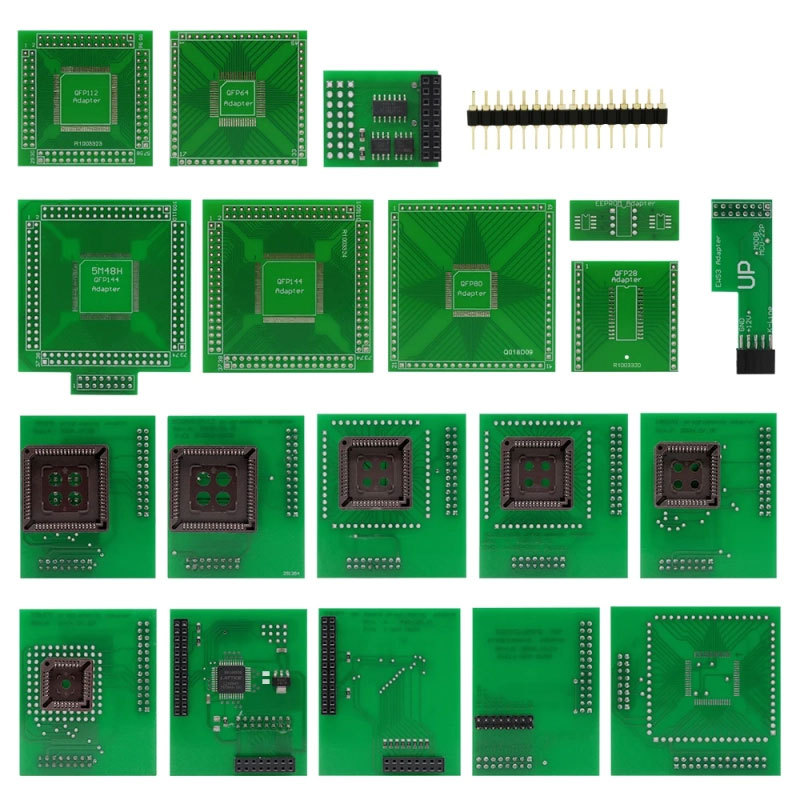

XPROG-M V5.5.5 Adapters:
ADP-0001 TMS370 PLCC28 programming adapter
ADP-0002 TMS370 PLCC44 programming adapter
ADP-0003 TMS370 PLCC68 programming adapter
ADP-0004 Motorola HC05B/X PLCC52 programming adapter
ADP-0005 Motorola HC05B/X QFP64 programming adapter
ADP-0006 ST M35080 in-circuit programming adapter
ADP-0008 TMS374 family in-circuit programming adapter
ADP-0009 MC68HC05V12 programming adapter
ADP-0010 TMS374 on-board programming adapter
ADP-0011 HC11EA9/E9 programming adapter
ADP-0017 HC(S)12 BDM / ARM Micronas in-circuit programming/bypass security adapter

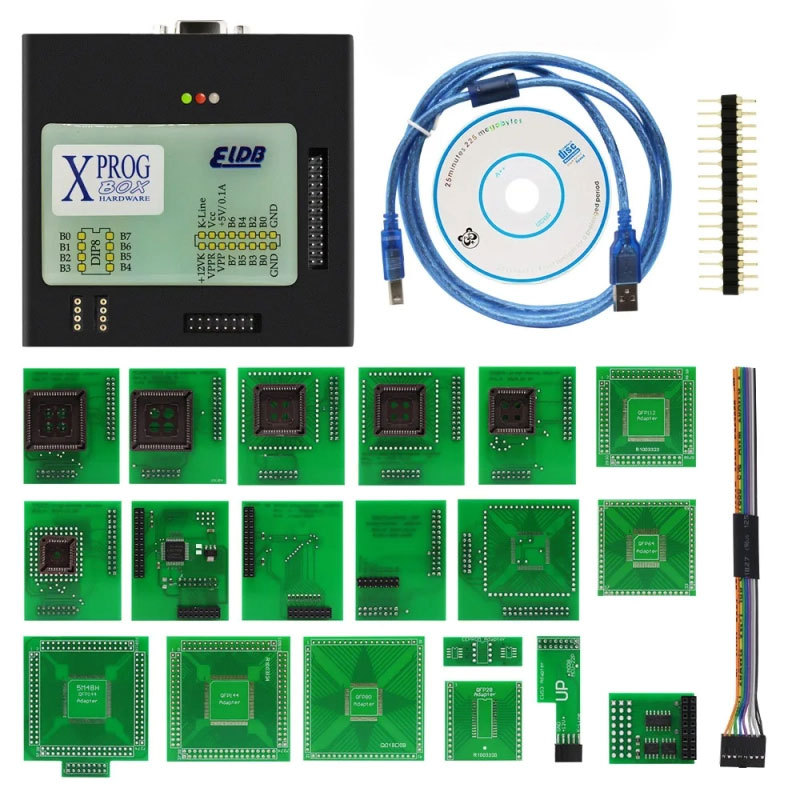

Package List:

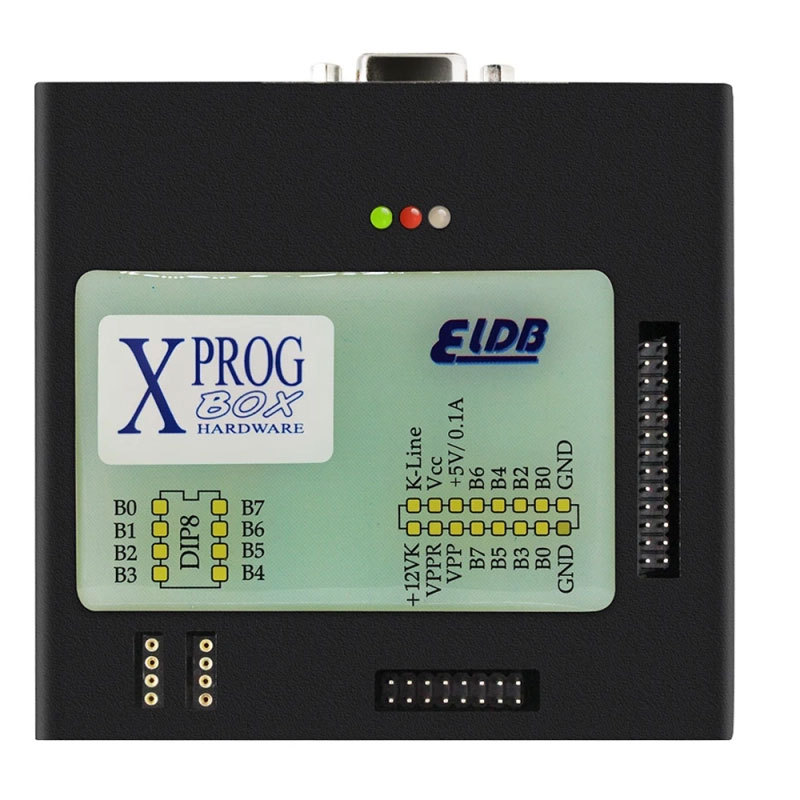

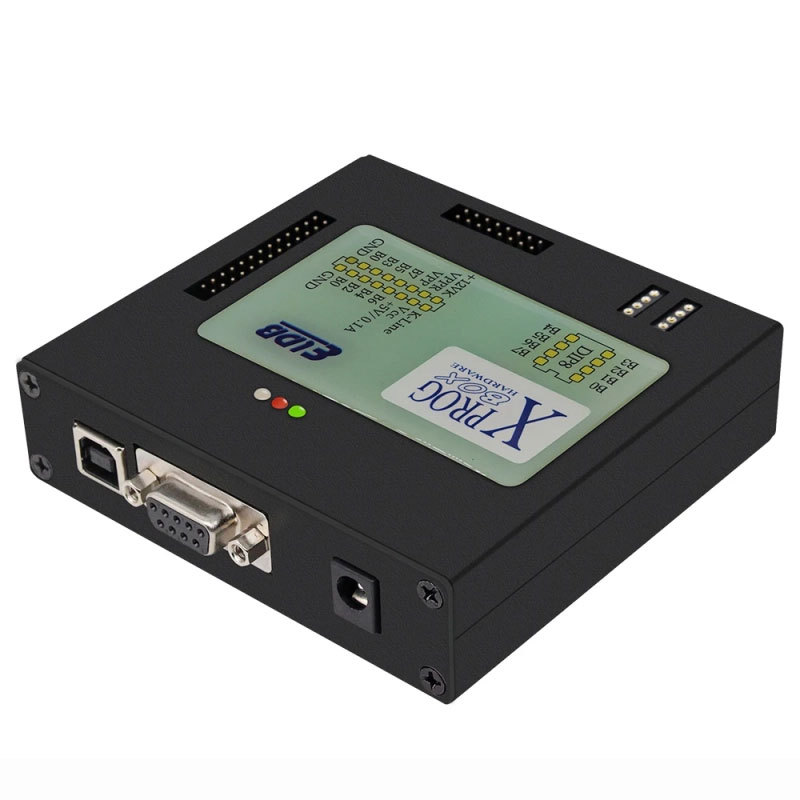

1pc x XPROG-Box Hardware (Aluminum Enclosure) .
19pcs x Basic Software Authorizations and Programming Adapters Set
1pc x CD with XPROG-Box Software (V5.5.5)
