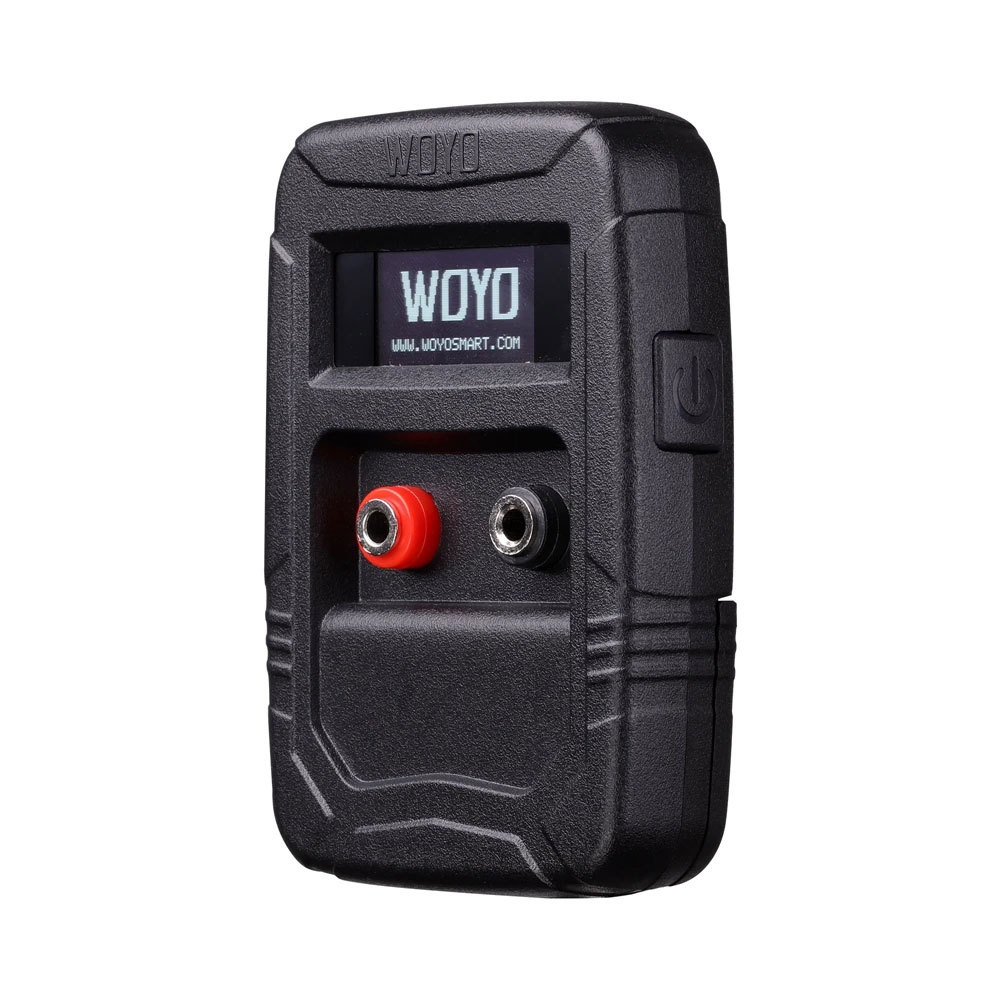

A digital tester designed specifically for automotive electronics, which can detect whether the CAN and LIN communication status is normal and whether there is data online or offline.
Features
1. The tester automatically recognizes CAN-High, CAN-Low, and automatically detects baud rate.

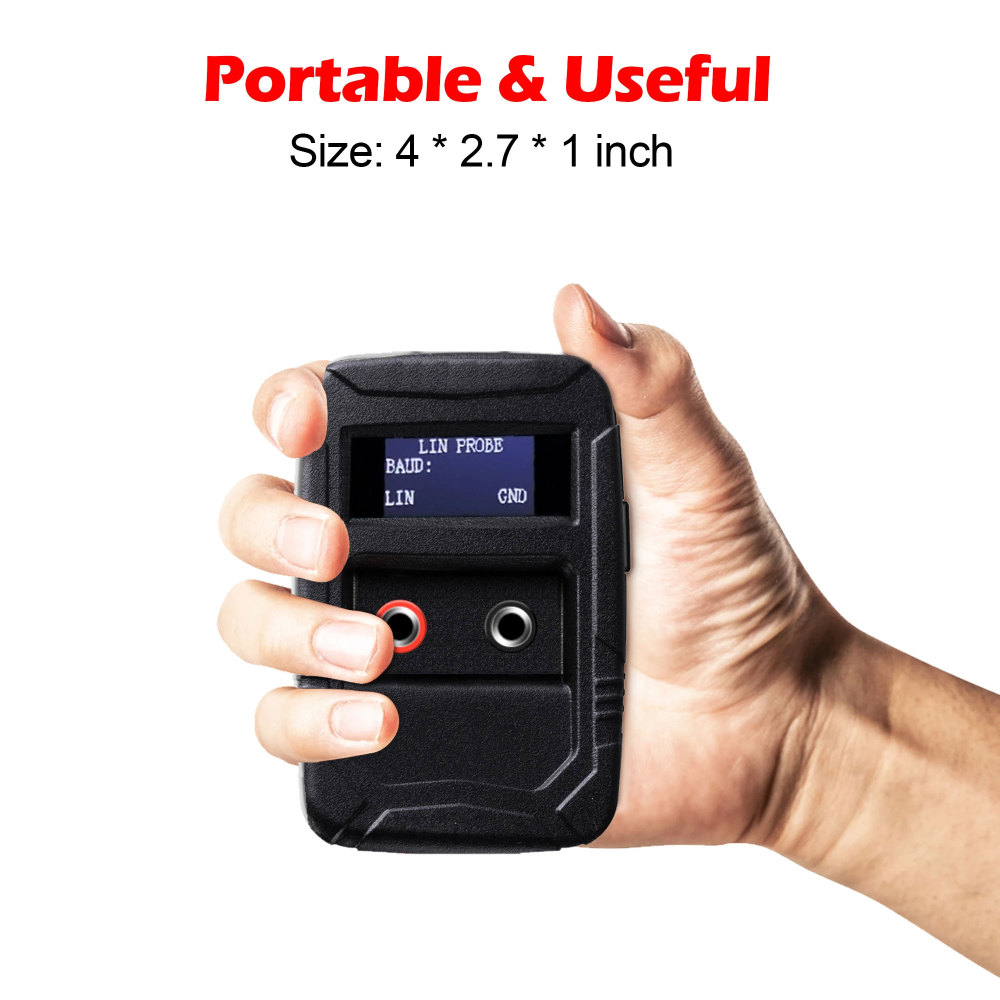

2. Small size, portable to use. Size: Size: 4* 2.7*1 inch
Advantages:
For communication measurement and maintenance of Can and LIN lines, it is more convenient and real-time than before to connect a computer or oscilloscope through a CAN analyzer. It is portable and intelligent to start maintenance work anytime and anywhere!
Function:

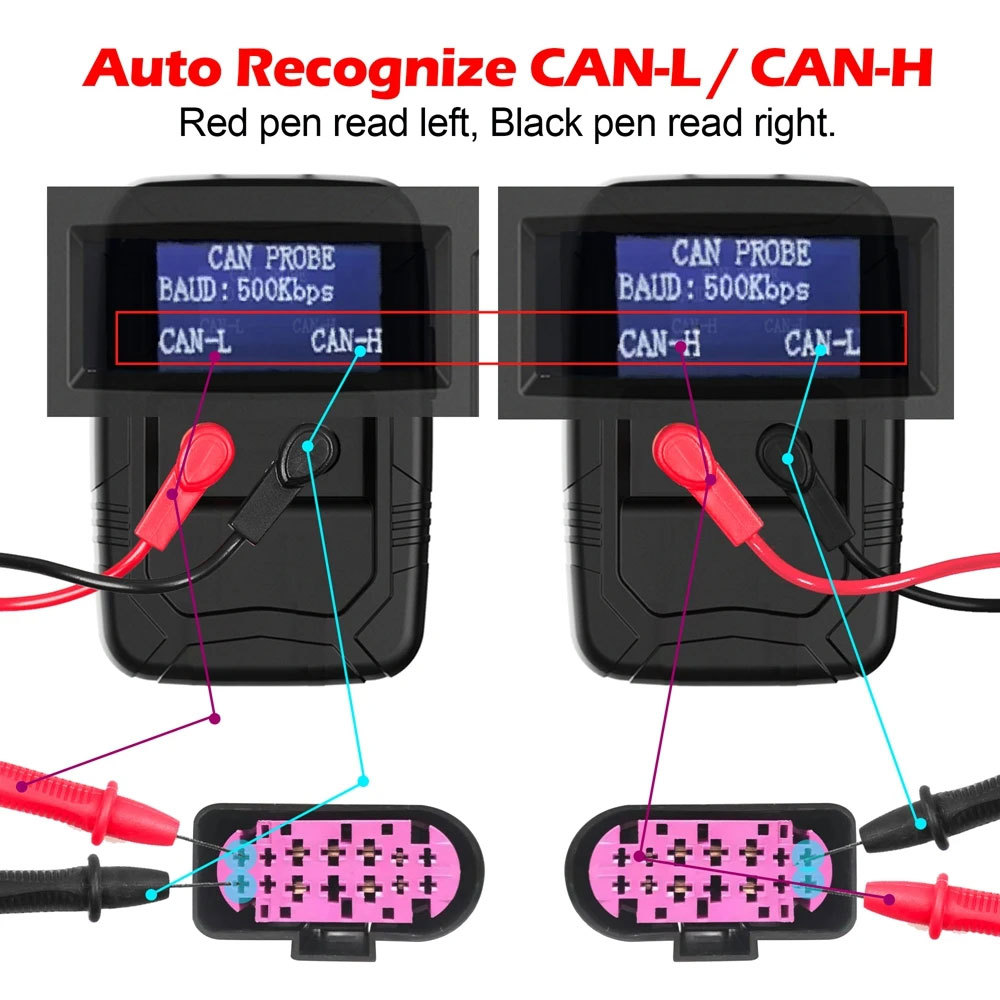

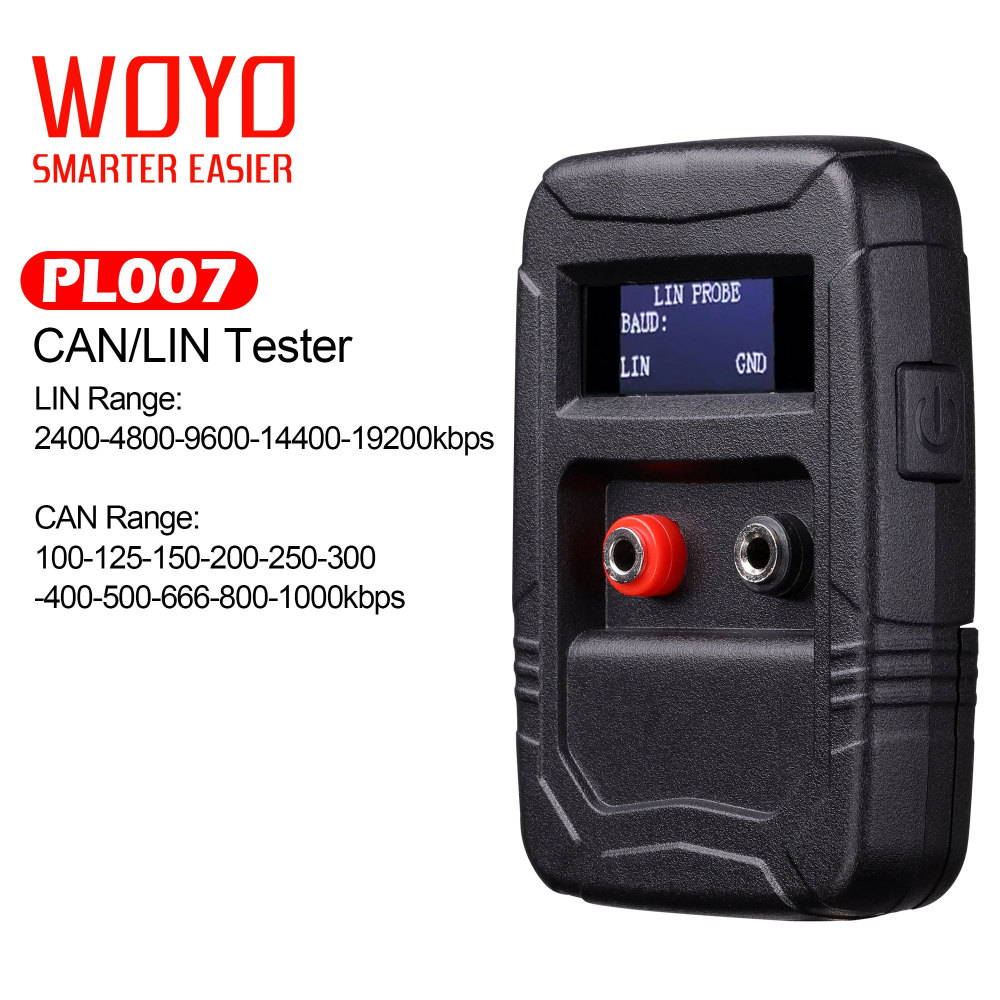

1: CAN signal digital measurement. CAN baud rate, data, ID can be displayed, and CAN high and low signal lines can be automatically distinguished.
2: LIN signal digital measurement. Can display LIN baud rate,Data, ID.
3: The internal 9V (6F22) battery is used for power supply.
How to use:

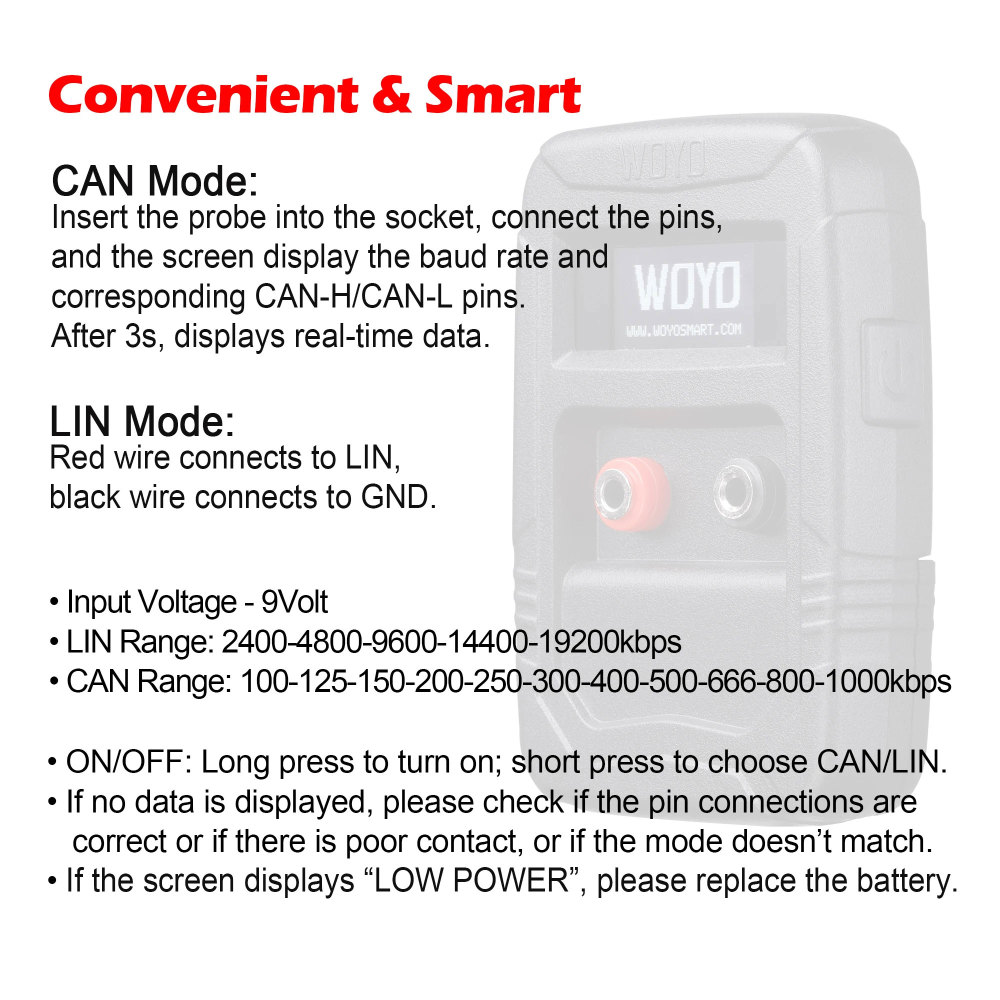

CAN Mode:

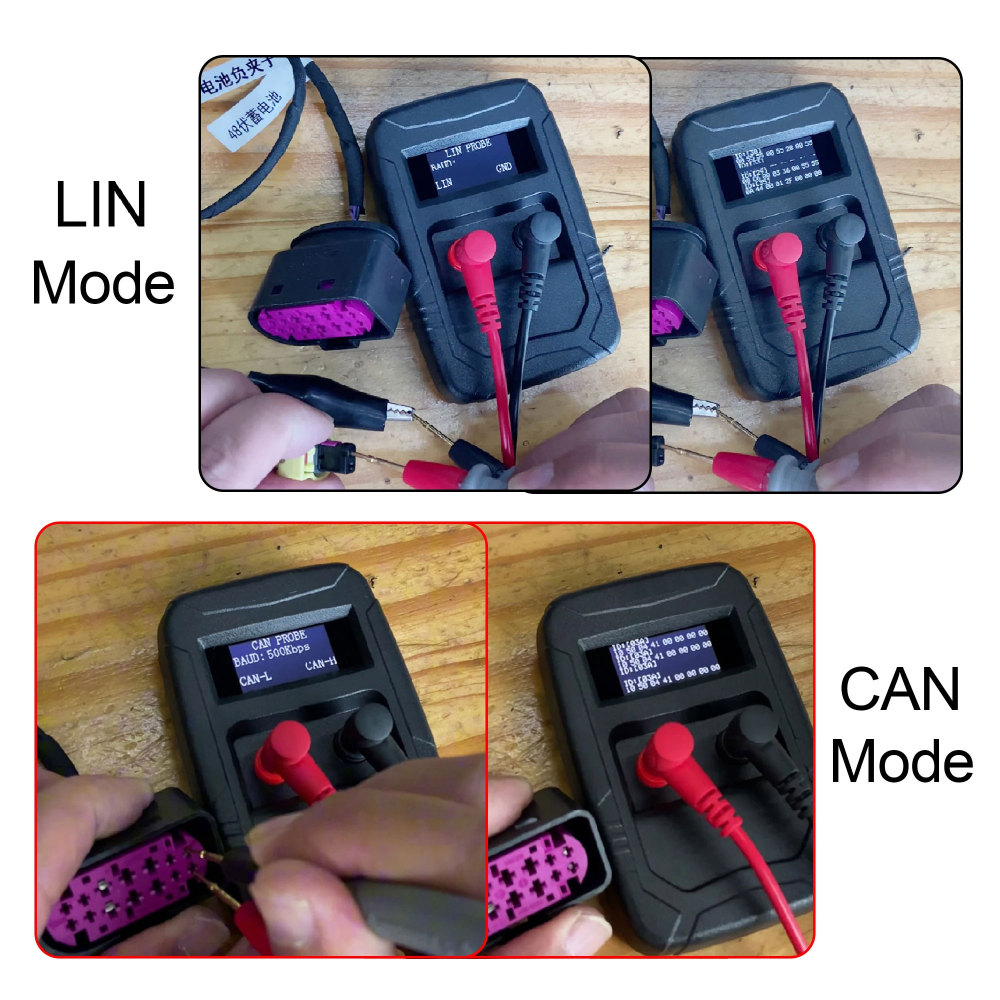

Insert the probe into the socket, connect the pins, and the screen display the baud rate and corresponding CAN-H/CAN-L pins.
After 3s, displays real-time data.
LIN Mode:
Red wire connects to LIN, black wire connects to GND.
If no data is displayed, please check if the pin connections are correct or if there is poor contact, or if the mode doesn’t match.
If the screen displays “LOW POWER”, please replace the battery.
