1.Drive test ignition coil:including independent ignition,coil type,Module Type.
2.Drive test fuel injector:including gasoline-powered car 12V fuel injector.
3.Drive and test solenoid valves and fuel metering valves controlled by various duty ratios.
4.Drive and test motors controlled by various duty ratios,urea pump motors,etc.
5.Drive and test idle stepping motors,instrument stepping motors,headlight follow-up steering stepping motor and so on.
6. You can test ≤12V Motor, include the motor of vehicle ,Motorcycle,Toy, Alarm, Instrument...
7.Built-in PWM Signal Adjustable output frequency,amplitude and duty ratio.Used to simulate various duty cycle sensors,such as air conditioning pressure sensor(duty cycle type), air flowmeter(duty cycle type),etc.
8.Power supply voltage:12V,with reverse connection protection,overcurrent protection.
9. Language: English and Spanish switchable
How to change the languages?
1. Choose "Language" on Main Page to enter next page.
2. Press "up" & "Down" button to choose the language you need.
3. Press "correct" button to confirm your choice.
4. Press "back" button and show you the language page you want.
Note: If without power suuply connect, long press "back""up"button. and connect to 12V power supply at the same time. the Screen wake up, the languages has been change. (Chinese/ English/ Espanol)
![]() |
![]() |

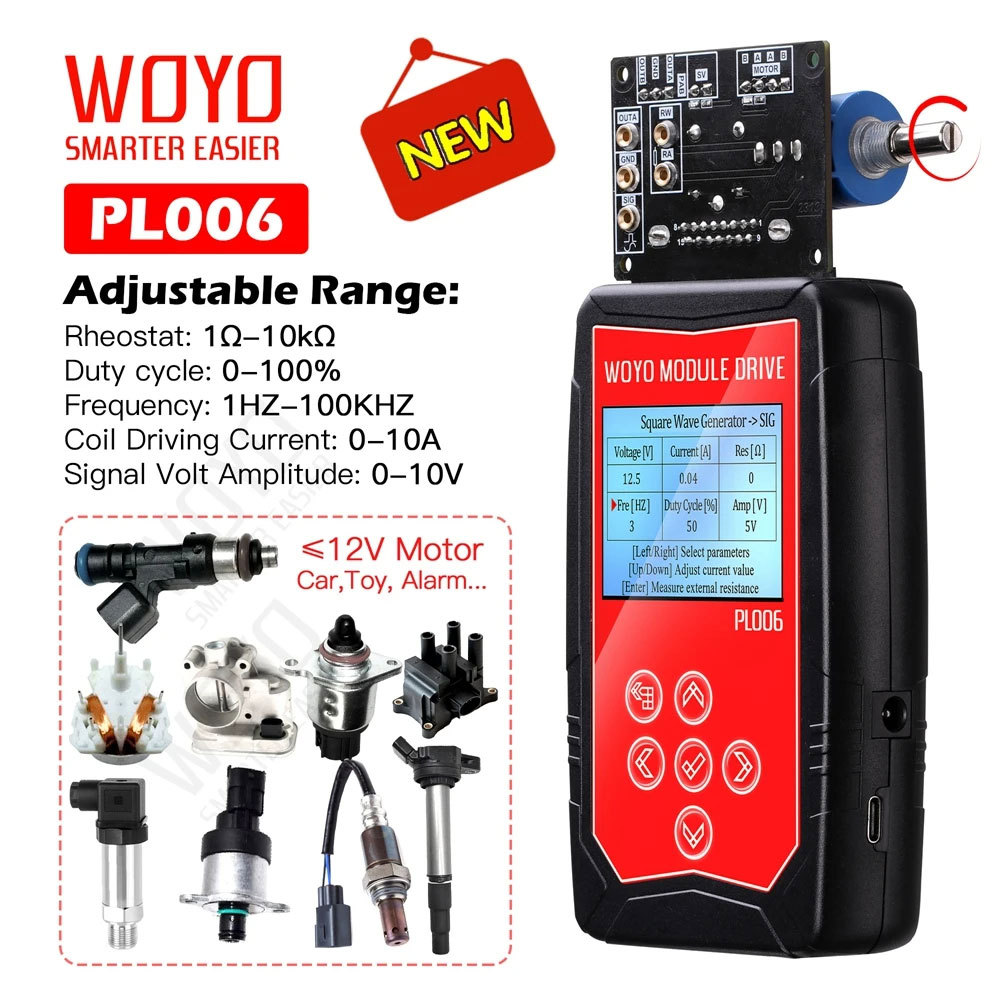

Support to adjust:
1.Electromagnetic coil driving current range: 0-10A
2.Output frequency range: 1HZ-100KHZ
3.Duty cycle range: 1%-100%
4.Signal Voltage Range: 0.1V-10V (Depend on different motor)
5.Rheostat‘s resistance range: 0-10kΩ
How to adjust the Rheostat:

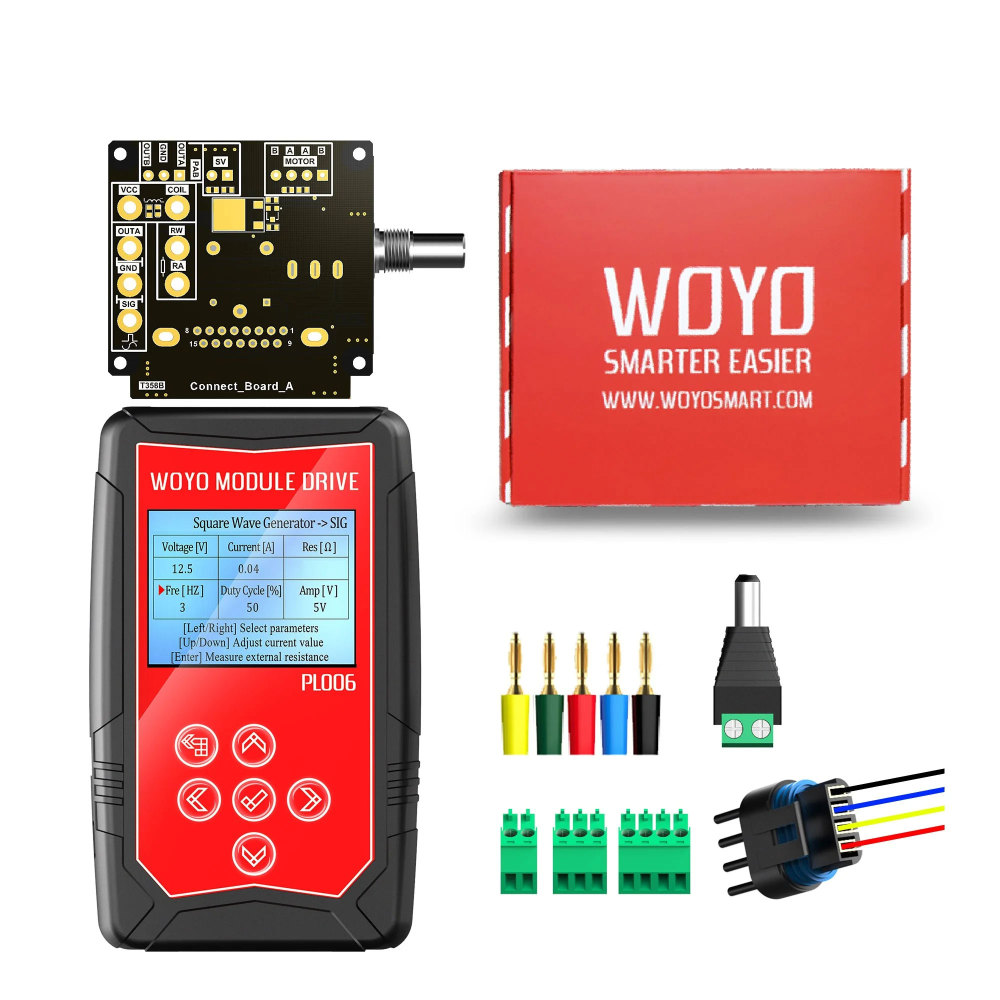

Here is the package list
Main circuit board detail:

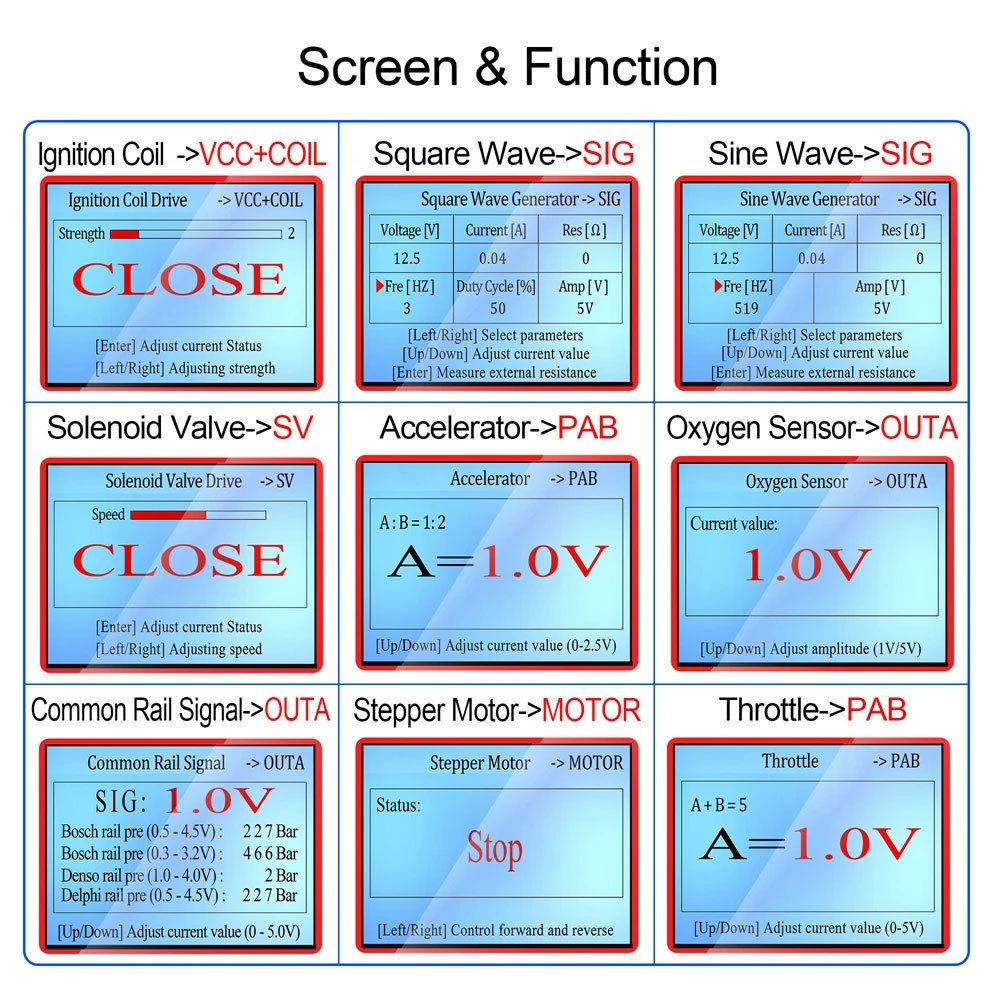

You can choose the page you need to test and adjust the range you need.
The keyword you see on the Upper right corner of the screen, it means you need to connect on the PCB.
Operation:
