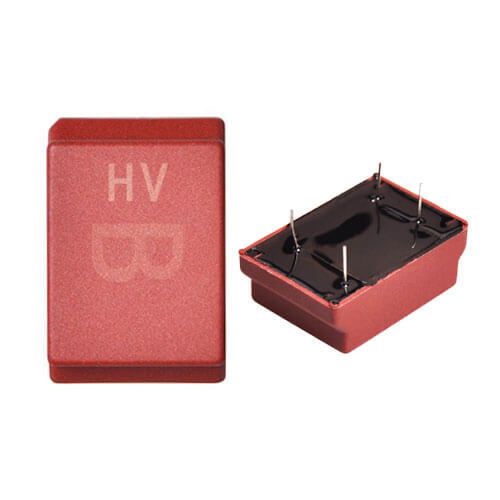

VOGT Transformer B for 2000-2005 Mercedes W220 Dashboard Backlight Repair

Aftermarket 4 Pins Mercedes VOGT Transformer A BOSCH high voltage transformer replacement for 2000-2005 W220 instrument cluster backlight illumination repair.
(1000 available)
Shipping Cost:
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Reviews

Mercedes W220 VOGT Transformer B with 4 Pins

Mercedes Benz S Class W220 owner have many problems with this car instrument xxxxx problems include no lighting,partial lighting and /or flickering or intermittent lighting,or cann’t see the miles badly. Mainly to repair this dashboard you need replace defective lighting transformer with a new one.

This VOGT Transformer is designed for BOSCH high voltage transformer 2000-2005 Mercedes S Class W220 CL-Class W215, R230 instrument cluster backlight / illumination repair. which include no color LCD lighting, partial lighting and / or flickering or intermittent lighting.

Mercedes VOGT Transformer B Application Models:

  • For BOSCH high voltage transformer 9 948 411 098, 9 948 411 025, 9 948 411 09 027. For Mercedes S Class W220 cars year 2000-2005 (dashboards with 24c04 EEPROM inside).

Exceptions/Problem areas:

At high mileage the instrument cluster for these 1998 – 2005 model S500, S600, SL500, SL600, SL65 AMG, CL500, CL600, CL55 AMG experience a problem where the instrument cluster’s lighting intermittently dims, flickers and then eventually turns off. At the beginning you will observe the malfunctions on hot days or if the car is parking in the sun and some time later they will stop their function. You will only need to buy (1) to fix the problem. These are Brand New directly from the original manufacturer, not cheap replicas. Please make sure this is what you need before buying because there will be no returns.

Please be aware that BUZ102S transistors may be defective also – check or in the best case scenario exchange them before putting the new transformer.

OE numbers were the item has/can been applied on:

The high voltage transformer have been successfully tested on the OE: 2205401411, 2205402811, 2205400911, 2205404611, 2205402011, 2205400211
