Toyota Lexus Denso/Fujitsu Ten ECU Flasher Support NEC 7F00XX Series MCU

Click below links to download the driver and software
Download Toyota Lexus ECU Flasher Driver
Download Toyota lexus ecu flash v1.19 software
Download Wiring diagram of Toyota Lexus ECU Flasher

Caution
DO NOT USE:  External 12V power for programmer powering in OBD mode!!!
Please USB powering ONLY !!!

TOYOTA/ LEXUS ECU FLASHER

A joint project by Autokey and PCMflash, is a multipurpose programmer for Denso and Fujitsu Ten ECUs with NEC processors installed For TOYOTA, LEXUS and SCION vehicles with petrol and diesel engines through JTAG interface. OBD writing via CAN bus is supported.

It is a unique solution in the chip tuning world.

It covers almost all the models beginning from 2003 - 2004.

It can read, flash, clear, verificate internal flash memory of microcontrollers if connected to the appropriate connector on the ECU circuit board.

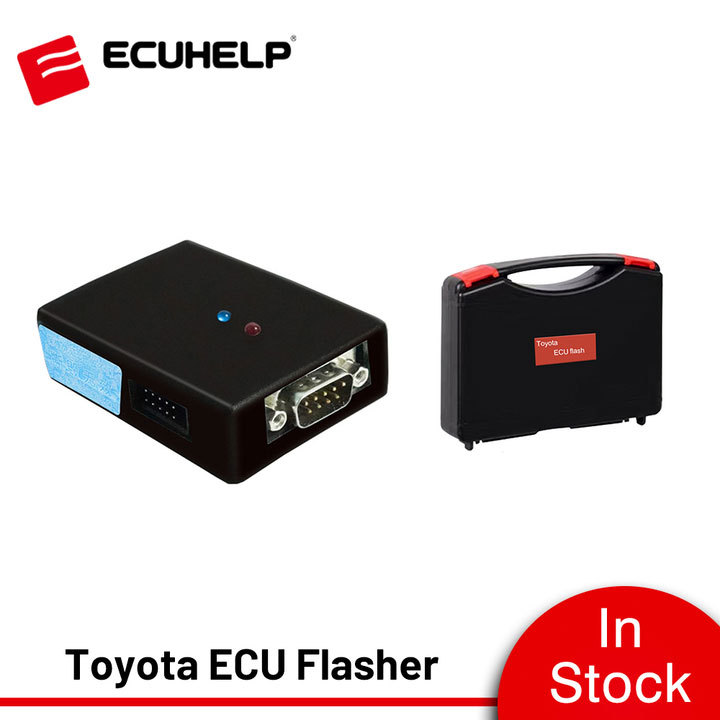

[In Stock]Toyota Lexus Denso ECU Flasher - Professional Toyota Denso/Fujitsu Ten ECU programmer

Note: work offline mode.

Top reasons to own one:
1. Professional Toyota Denso ECU programmer
2. Support Toyota/Lexus 2015 + OBD Write
3. Support Some Toyota/Lexus 2015 + OBD Read

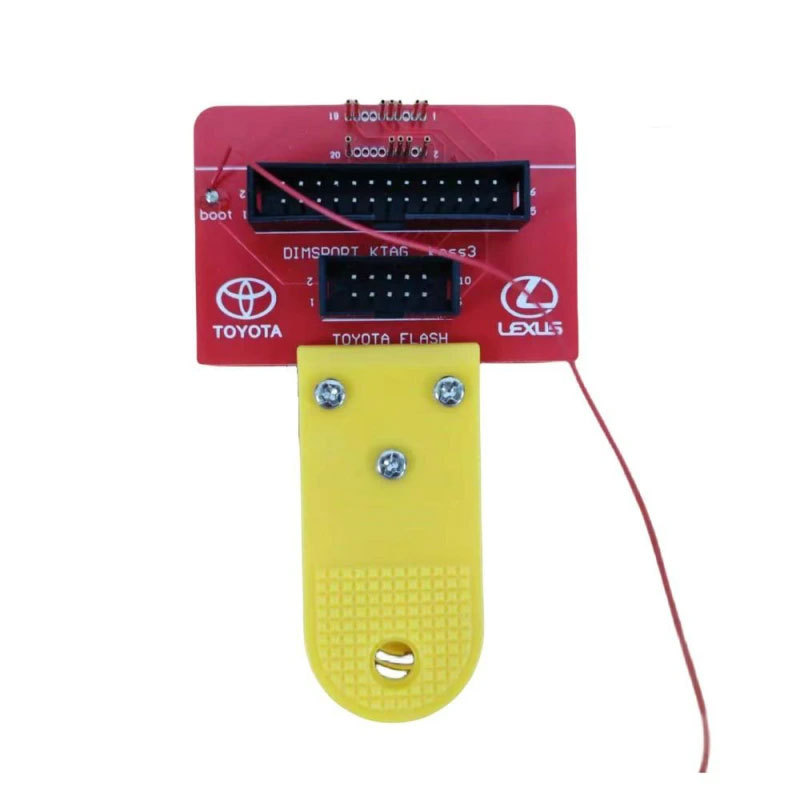

4. Can Read and Write via internal 20 pin or 26 pin JTAG connector.
5. Files can be stored in an open format, promoting ease of access and utilization.
6. Firmware integrity is fortified through checksum validation and recalculation, assuring data reliability.
7. No annual or monthly subscription
8. Its proprietary hardware interface ensures seamless operation, mitigating compatibility issues and driver complexities.
9. It guarantees unhindered access to ECU memory, executing operations at remarkable speeds surpassing 100 KB/s.

Storing Data: Standard mode storage
Free from any master-slave dependencies
Exclusive to the master device
Support Automated CHECKSUM CORRECTION

Compatible Systems:
for TOYOTA's DENSO ECU using NEC 7F00XX series microcontrollers, including:
76F0038
7F0038A
76F0039
76F0039A
76F0040
76F0040A
76F0070 BGA
76F0085 BGA

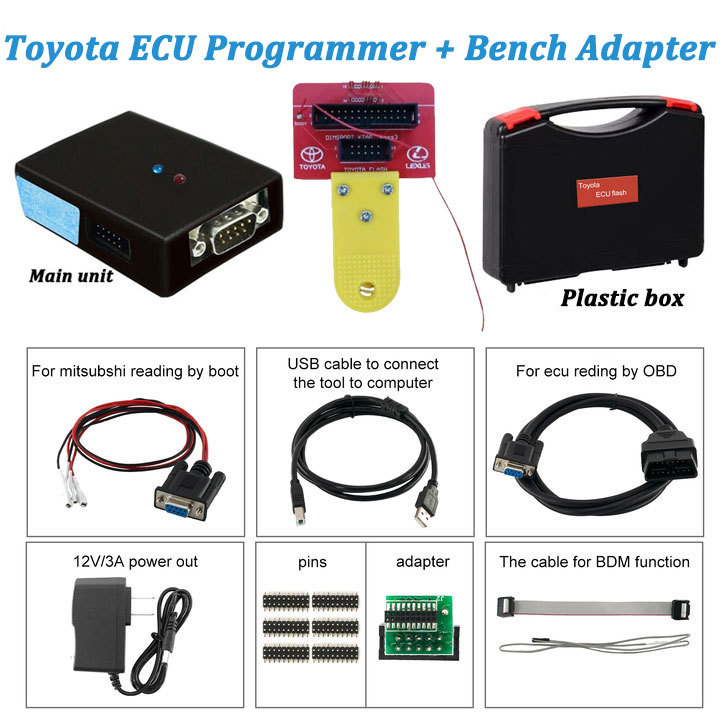

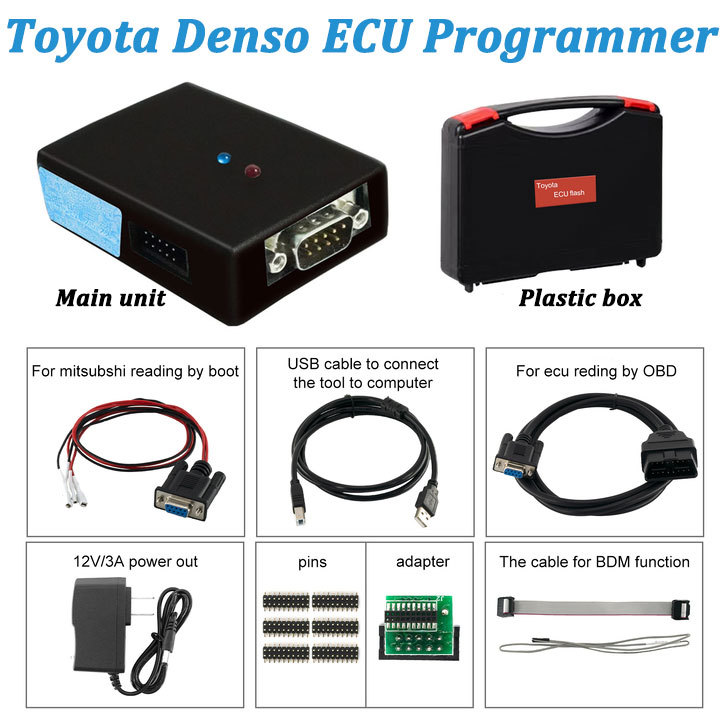

Package List:
1pc*Host device of Toyota Lexus Denso ECU Flasher
1pc*12V/3A power out
1pc*16pin cable for ecu reading by OBD
1pc*cable for BDM function
1pc*adapter for Mitsubshi reading by boot
1pc*USB cable to connect the tool to the computer
1pc*adapter
pcs*pins
1pc*Suitcase
