Renaul*t Immo Emulator Bypass Immobiliser Module

Renaul*t Immo Emulator

• Works on all Renaul*t models, fitted with single-data-wire coded immobilizers. I.E.from 1994 approx. until the introduction of CAN (2001 to 2003, dependingon exact model).
• For Petrol ECU’s
  • – SIEMENS FENIX3B
  • – SIEMENS FENIX5
  • – SIEMENS SIRIUS32
  • – SAGEM SAFIR (55pin)
  • – SAGEM SAFIR2 (35pin)
  • – BOSCH MOTRONIC MP7.0
  • – MAGNETI MARELLI IAW 06R
  • – MAGNETI MARELLI IAW 8R.30
• For Die-sel ECU’s
  • – BOSCH MSA15.5 (DTI)
  • – BOSCH EDC15C3 (DCI)
  • – LUCAS DCU3R (1.9D)
  • • – Coded fuel cut-off valve (1.9D DDS)
    •

Why need Re-nault immobilizer emulator?
The engine ECU won’t run the engine until it receives a coded message (a ‘unique’ number) from the immobilizer. The ‘unique’ part means that every immobilizer is different, and so swapping immobilizers won’t help get a car running. There is no starter motor cut on Re-nault models. The immobilizer may be a stand alone unit, or it maybe built in to a larger control unit.
Once the ecu has been decoded, the emulator should be fitted as shown, this can be done direct to the ecu or along the immobilizer wiring loom.
After decoding of Re-nault injection computer using RE-NAULT RESET TOOL or by entering security code, in most cases you can start engine, but some of injection computers can not operate without immobilizer code stored in their memory. Die-sel EDC15C3, DCU3R and MSA15, petrol SIRIUS32 (except those for 1.4Lengine) and FENIX5 for 2.0L 16V engine require working unlocked (with good key) immobilizer unit or Re-nault immobilizer emulator. Use together with RE-NAULT ECU DECODER for a complete kit.

As the name suggests, the Emulator Module is capable of emulating an immobilizer data stream to the ecu. It can do this every time ignition is turned on, meaning that you have a car which simply starts, even just using a steel (non electronic) key.

Note: once the module is fitted to a car, the original equipment immobilizer is effectively disabled. you need to make your customer aware of this, so that they can arrange to fit an alternative device as required.


Features

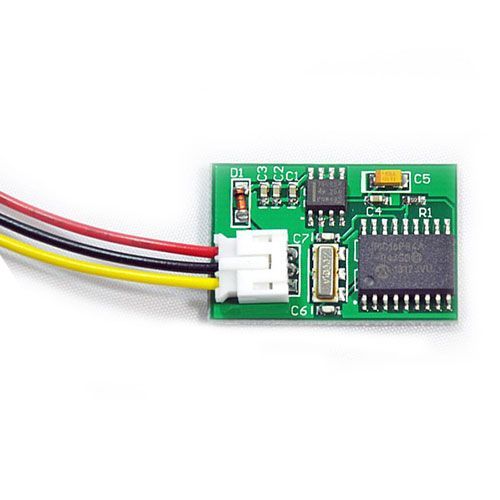

• Small module size like a mini pcb board.
• Easy install. Only 3 wires to connect: Ignition, Ground and Data.
• Decode the ecu using the renualt ecu decoder together. No Immo pin code will be required.
• Module is designed to be left permanently connected to the car.
• Non-volatile memory means no data loss, even after flat batteries or jump startS.
•

•
  After connecting the emulator cut the immobilizer line from the immobilizer unit as shown.


  Fitting Process:
  1. Ensure that the ecu has been decoded. This can be done with the Re-nault ecu decoder
  2. Connect the module to the car’s wiring harness: Red wire to ignition feed, black wire to earth, and yellow wire to the data wire
  3. Cut the wire to the immobilizer, so that the module is connected directly to the engine ECU, and the immobilizer is out of the circuit.
  4. Turn ignition back on, the car should now start.


  Package include:
  1x For Re-nault Immo Emulator
