Renault CAN BUS Emulator for Instrument Cluster Repair

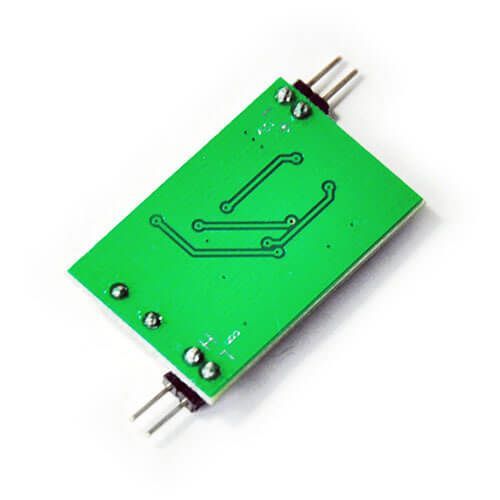

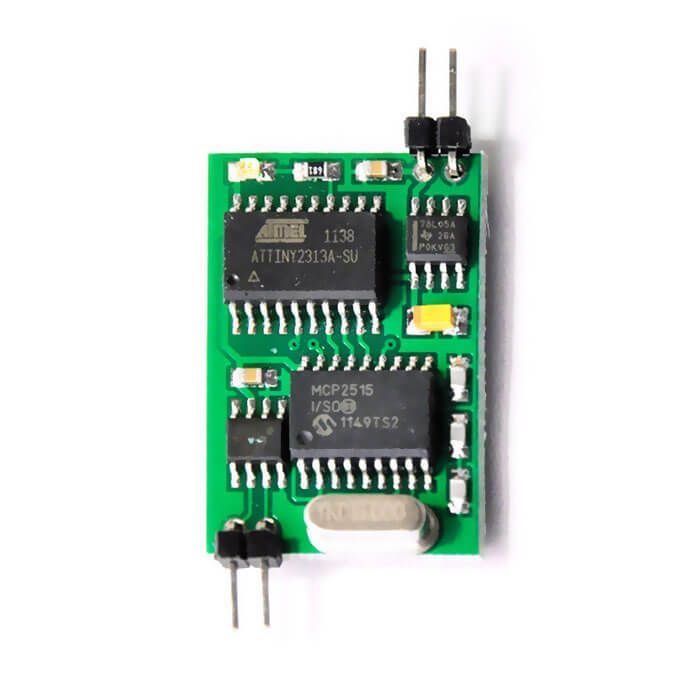

Renaul*t CAN BUS Emulator

• for Renaul*t Scenic, Laguna,  Megane Instrument Cluster Repair
• Simple connection-4 wires only: CAN Low, CAN High, +12v, GND.

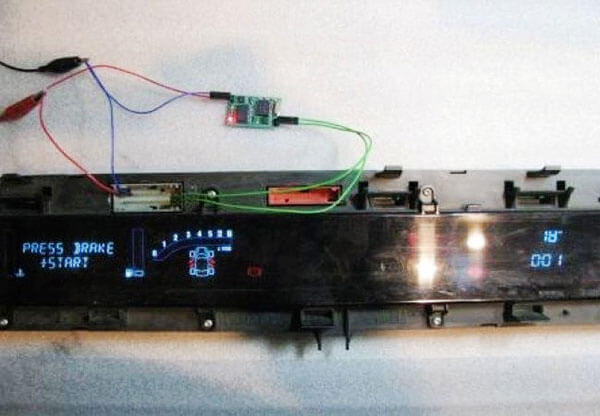

• After power on emulator turns on dashboard. If everything is connected correctly and there are no CAN faults RED LED on emulator board is blinking.
•

DASHBOARD CONNECTOR:

Re-nault Scenic, Laguna

1 +12v

2 GND

29 CAN Low

30 CAN High

Re-nault Megane

1 CAN High

4 CAN Low

15 +12v

30 GND
