1.Latest Master Version: Firmware V4.3
2.With USB Dongle. No need activation.
3. Software language: English
4. Only works on Windows XP System (Attention: Close anti-virus software when installing the software.)
Attention:
The Si9241AEY is a monolithic bus transceiver designed to provide bi directional seria lcommunication in automotive diagnostic applications. The device incorporates protection against overvoltages and short circuits to VBAT. The transceiver pin is protected and can be driven beyond the VBAT voltage. The Si9241AEY is built on the Vishay Siliconix BiC/DMOS process. An epitaxial layer prevents latchup. The RX output is capable of driving CMOS or 1 x LSTTL load. The Si9241AEY is available in a space efficient 8-pin SO package. It operates reliably over the automotive temperature range (- 40 to 125 °C). The Si9241AEY is available in both standard and lead (Pb)-free packages.

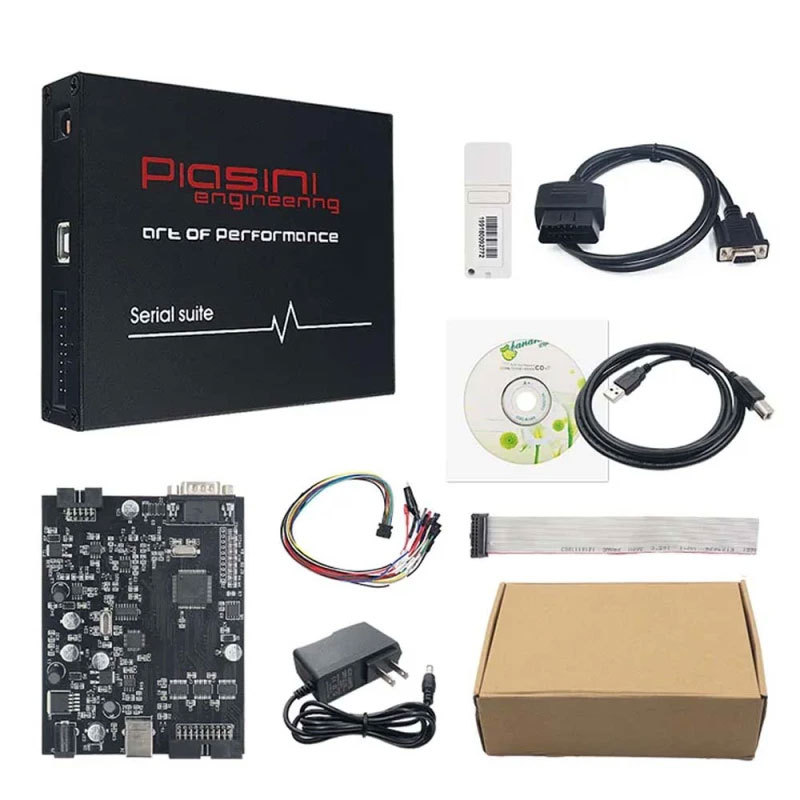

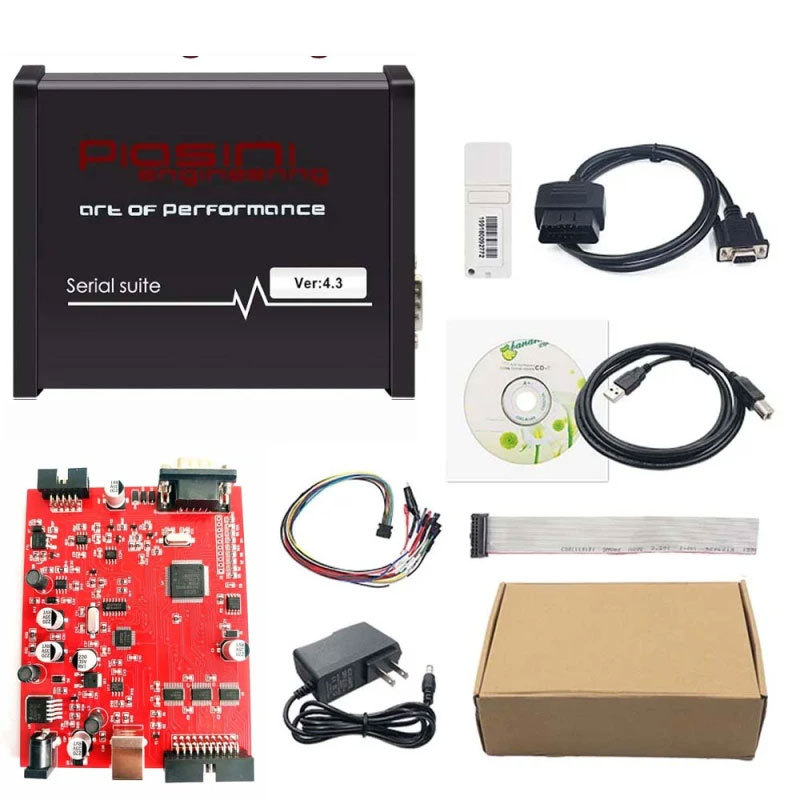

PCB Shows :
| Black PCB | Red PCB |
 |
 |
Top Reasons to get V4.3 Master Version:
1.Latest Mater Version:V4.3
2.With USB Dongle,No need activated,install&use directly
3. Software language: English
4. Windows XP System (Attention:Close anti-virus software when installing the software.)
Attached 9241A Pin Map for Rerference:
Power Supply 12V , Programming With Pins Out Supports 16V
Please be sure to connect the car and test, it can't be measured without the car.
The multimeter is not accurate. So please do not use this tester .
The ECU is connected and not , the car is connected or not , the ports used are different, and the voltage will all be different.
Functions:
JTAG – BDM – K-line – L-line – RS232 – CAN-Bus
Read/Write Programmer
Checksum Correction Incorporated for Mitsubishi/Denso/Hitachi
Server On-line Updates and Security Survey
New ECU Implementation Free of Charge
Difference Between Master And Slave Version:
• PIASINI Master is full kit of PIASINI and master version.it include all function in list of the following it can read all dump of chip by bin file.and you can write or edit this dump by yourself.
• PIASINI Slave is full kit of PIASINI and slave version,it include all function like master version, but it can only read a part dump of chip by encrypt file,this dump is only for turning file and you have to send dump to profession company for turning file.

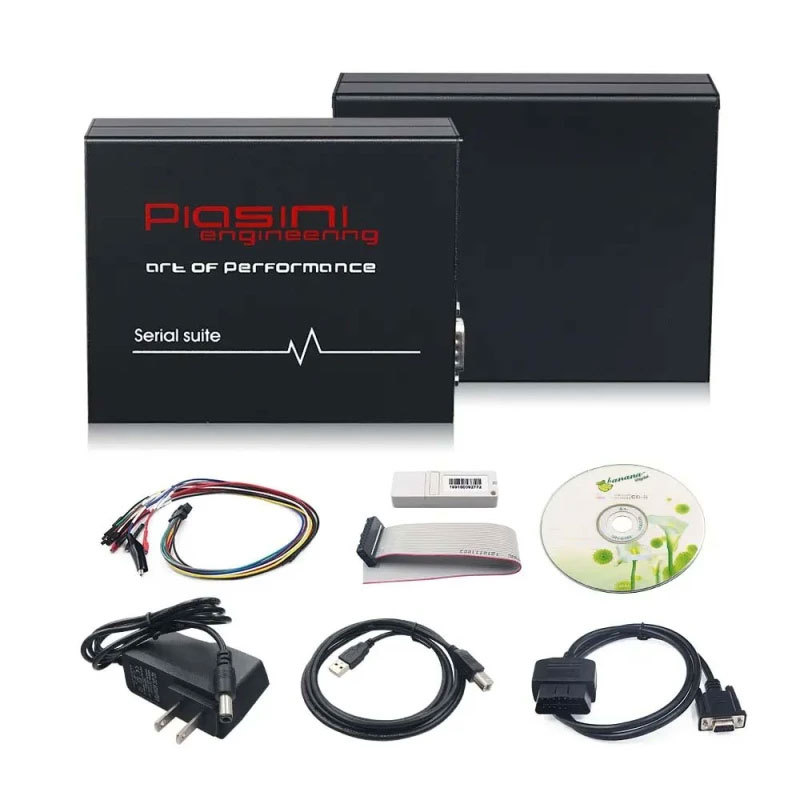

Packing List:
1 x PAISINI V4.3
1 x OBD Cable
1 x Color General Purposes Cable
1 x USB Cable
1 x Device Serial Suite V3.0HW
1 x USB Dongle protection
1 x Power Supply
1 x CD Software
