Advantages
1. Portable Design
2. Easy Operation
3. High Performance
Instructions
Works with OBDSTAR IMMO series tablets.
Functions
1. Continental PCR 2.1 reading CS, PinCode, MAC value
2. Bosch MED17.4.4 reading eeprom , PinCode
3. Bosch EDC17C60 reading eeprom , PinCode
4. Bosch MD1CS018 reading eeprom, PinCode
5. Bosch MED17XX/EDC17XX reading eeprom, flash, CS, PinCode, MAC value
6. Bosch ME17XX reading & writing eeprom, flash
7. T87A, 6HP reading & writing TCM eeprom, flash
8. Add compatibility with P002 adapter (need to use with OBDSTAR IMMO series tablets).
9. Support below special models:
ME9.0
MED9.1
MED9.6.1
ME9.6.1
MED9.5.10
EDC16C39
EDC16CP35
EDC16C8
...
Supported list
1. Continental PCR2.1(TC1796)
-
2010-2014 Audi A1 (8X) 1.6L Diesel
-
2009-2012 Audi A3 (8P) 1.6L Diesel
-
2009-2013 Seat Altea 1.6L Diesel
-
2010-2016 Seat Ibiza IV (6J) 1.6L Diesel
-
2010-2012 Seat Leon II 1.6L Diesel
-
2014 Seat Toledo (KG) 1.6L Diesel
-
2010-2013 Skoda Octavia II (1Z) 1.6L Diesel
-
2010-2013 Skoda Fabia II (5J) 1.6L Diesel
-
2010-2011 Skoda Roomster (5J) 1.6L Diesel
-
2013-2014 Skoda Rapid (NH) 1.6L Diesel
-
2011-2013 Skoda Superb (3T) 1.6L Diesel
-
2012/2015 Skoda Yeti (5L) 1.6L Diesel
-
2010-2015 VW Caddy (2K) 1.6L Diesel
-
2009-2013 VW Golf VI 1.6L Diesel
-
2010-2013 VW Golf Plus 1.6L Diesel
-
2011-2014 VW New Beetle (9C) 1.6L Diesel
-
2011 VW Passat (B7) 1.6L Diesel
-
2009-2014 VW Polo V 1.6L Diesel
-
2010-2015 VW Touran (1T) 1.6L Diesel
...
2. Bosch MED17.4.4(TC1793)
-
Citroen C3 Mk2
-
Citroen C4 Gran Picasso
-
Citroen C4 MK2
-
Citroen C5 (RD/TD)
-
Citroen C6
-
DS DS3
-
DS DS5
-
DS DS6
-
Peugeot 2008
-
Peugeot 208
-
Peugeot 3008 (P84)
-
Peugeot 3008 (T84)
-
Peugeot 308 (T9)
-
Peugeot 4008
-
Peugeot 408
-
Peugeot 508
...
3. Bosch EDC17C60(TC1793)
-
Citroen Berlingo
-
Citroen C-Elysee
-
Citroen C3 Aircross
-
Citroen C3 MK2
-
Citroen C3 Picasso
-
Citroen C4 Cactus
-
Citroen C4 MK2
-
Citroen C4 Picasso
-
Citroen Jumpy
-
Citroen Spacetourer
-
DS DS3
-
DS DS4
-
DS DS5
-
Peugeot 2008
-
Peugeot 208
-
Peugeot 3008 (P84)
-
Peugeot 308 (T9)
-
Peugeot 5008 (T87-P87)
-
Peugeot 508
-
Peugeot Expert
-
Peugeot Ranch/Partner
-
Peugeot Traveller
-
Opel/Saturn/Vauxhall Combo E
-
Opel/Saturn/Vauxhall Crossland X
-
Opel/Saturn/Vauxhall Grandland X
-
ToyotaProace
...
4. Bosch MD1CS018
...
5. Bosch MED17XX/EDC17XX
-
EDC17U01(TC1766)
-
EDC17C46(TC1767)
-
EDC17C54(TC1797)
-
EDC17C64(TC1797)
-
EDC17CP44(TC1797)
-
EDC17CP44 MS(TC1797)
-
MED17.5(TC1766)
-
MED17.5.1(TC1766)
-
MED17.5.20(TC1766)
-
MED17.5.5(TC1766)
-
MED17.5.5 HW2(TC1766)
-
MED17.5.2(TC1767)
-
MED17.5.5(TC1767)
-
MED17.5.5 HW2(TC1767)
-
MED17.5.21(TC1782)
-
MED17.5.25(TC1782)
-
MED17.1.1(TC1797)
-
MED17.1.1 MS(TC1797)
-
MED17.1.6(TC1797)
...
6. Bosch ME17XX
-
ME17.5.6(TC1767)
-
ME17.5.20(TC1767)
-
ME17.1.1(TC1797)
-
ME17.1.6(TC1797)
...

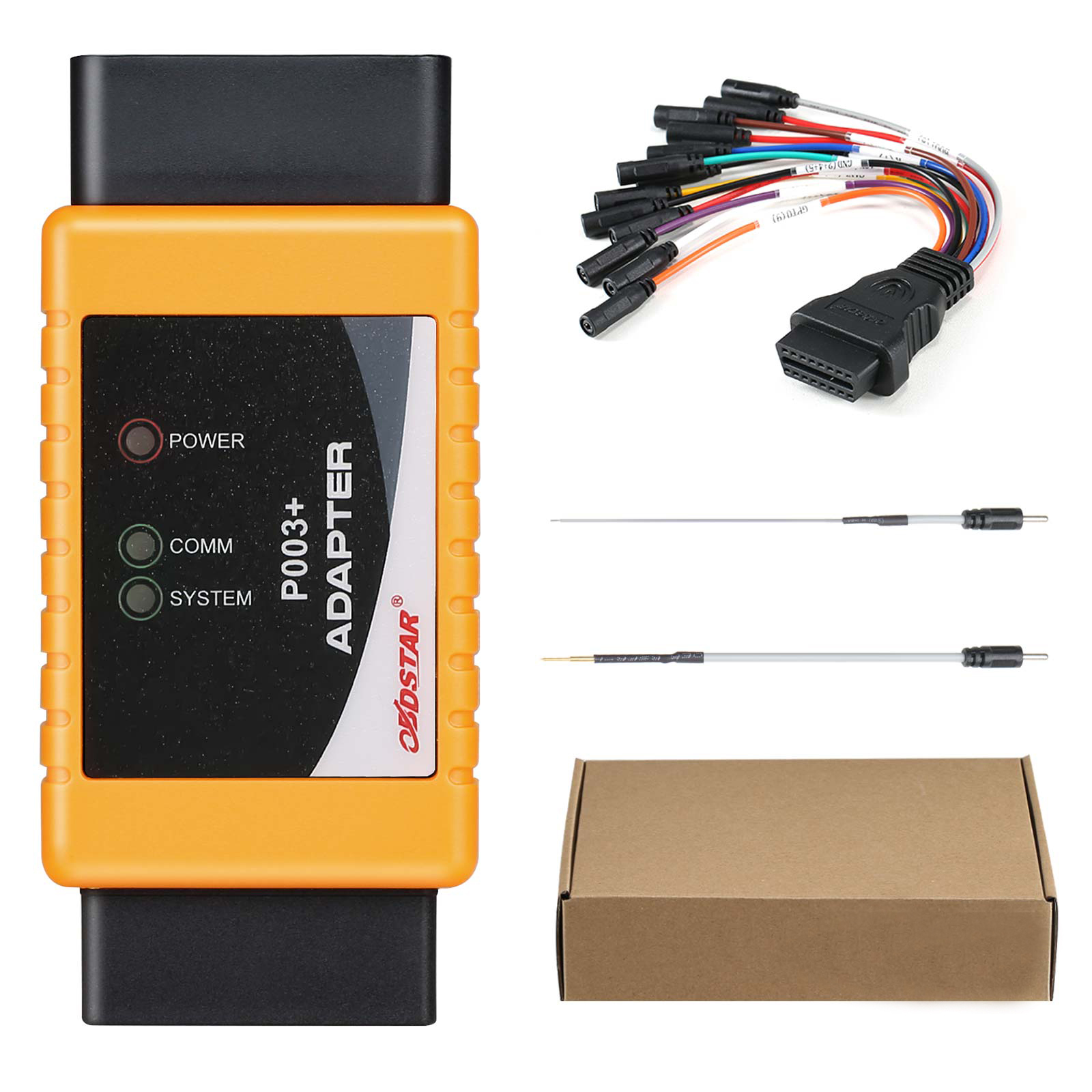

OBDSTAR P003+ KIT Package:

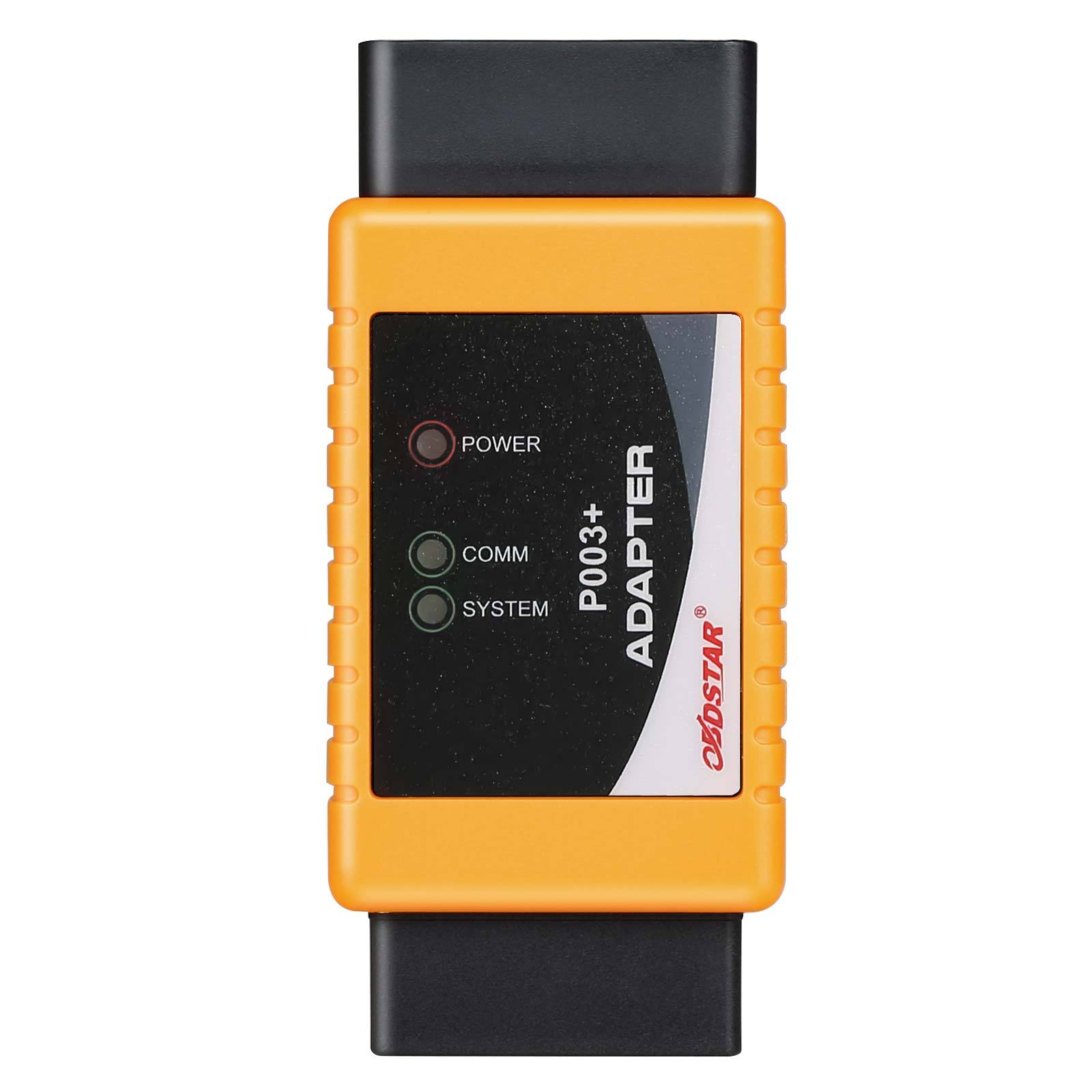

1. P003+ adapter

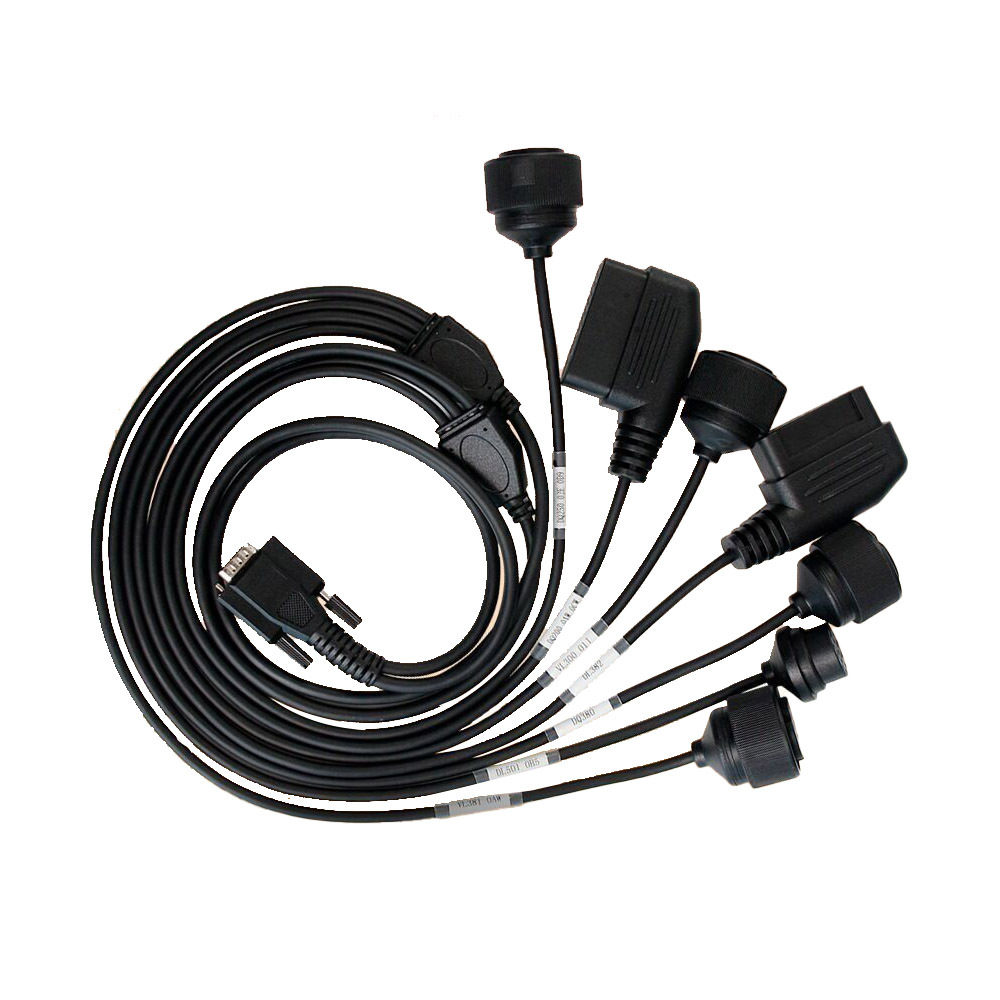

2. ECU BENCH cables
Q: What is the difference between P003+ and P003?
A: There are two main differences between P003+ and P003
1. P003 + is the upgraded model of P003, P003 + supports all the functions of P003, and at the same time, due to the higher frequency clock used inside the P003 +, so it supports more types of ECU than P003, and more specific models are as follows:
ME9.0
MED9.1
MED9.6.1
ME9.6.1
MED9.5.10
EDC16C39
EDC16CP35
EDC16C8 etc.
2. Meanwhile, the compatibility of P002 adapter has been added(need to use with OBDSTAR IMMO series tablets).
