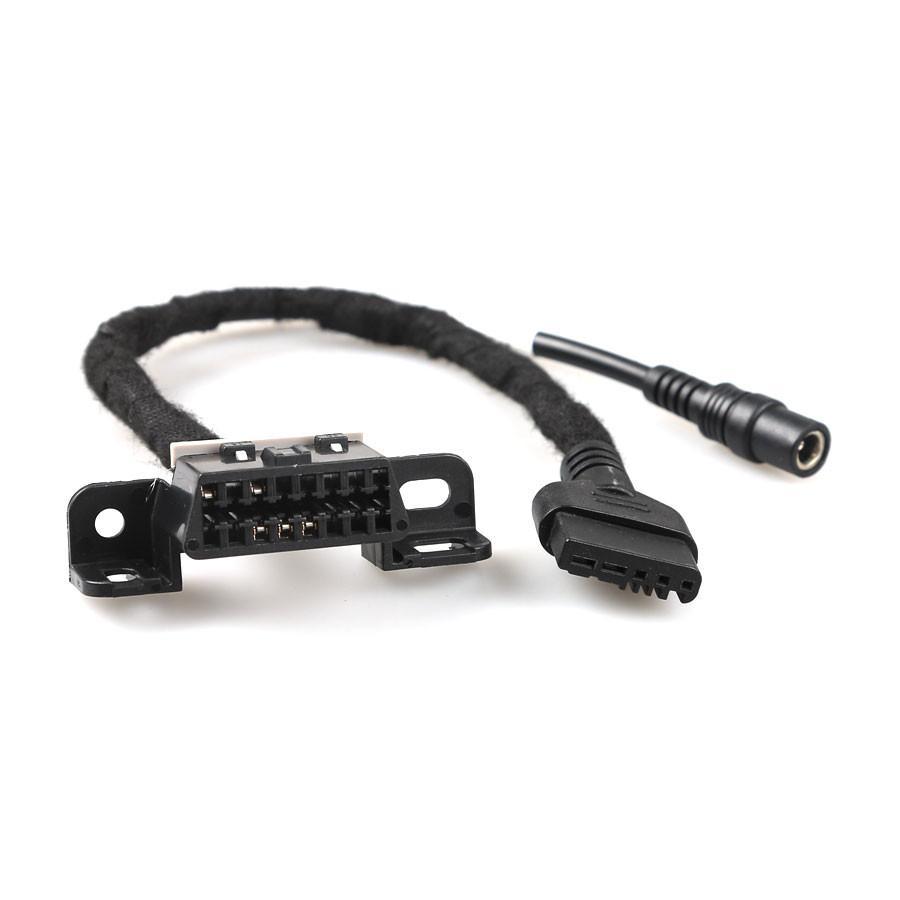

Mercedes Benz ISM Intelligent Servo Module Test Platform Renew Cable

Mercedes Benz ISM Intelligent Servo Module Test Platform Renew Cable

The Intelligent Servo Module(ISM) purposely built for DIRECT SELECT can be found and mounted on the transmission housing.

This Mercedes Benz Intelligent Servo Module for DIRECT SELECT reads its signal from internal sensors such as the angle sensor which records actual position of range selector lever and shaft.


Besides, Intelligent Servo Module(ISM) receives connection from the Controller Area Network(CAN) which enables it share information with other units such as the;

• Central Gate-way Unit
• Transmission Control Unit
• Electronic Ignition Switch (EIS) control Unit
• Steering Column Module
• Instrument Cluster
• Electronic Stability Program(ESP) control unit

Mercedes Intelligent Servo Module comes with huge cost in terms of replacement and a bit moderate in-terms of repairs.

Major causes of a faulty Intelligent Servo Module(ISM) is as a results of a blown fuse/relay, in-built component failures or crashed software code.


Moreover, Intelligent Servo Modules are purposely built for one specific car and installing a different or used ISM on a different vehicle requires programming and adaptation.

Besides, is advisable to try fixing it on the vehicle and see if it works, if not then you need to program it in order to match the vehicles Identification Number (VIN) information.

The only way to get a used Intelligent Servo Module to work on your Mercedes-Benz is to find a third party that program ISM Modules.

This procedure may be referred to as flashing ISM(Intelligent Servo Module).

In other to know how a diagnose a faulty Intelligent Servo Module, is very important to focus on how the situation is related.



SYMPTOMS OF FAULTY INTELLIGENT SERVO MODULE

• Vehicle hardly start.
• Vehicle’s gear won’t shift.
• Revs at high rpm.
• Cluster light goes off.
• Vehicle won’t crank due to loss of communication from the Transmission Control Module.
• Error data from actuator motor in the component A80 of the Intelligent Servo Module(ISM)
• Car shakes badly in idle.

Further, since we have get to know major causes and symptoms regarding Intelligent Servo Module, is now time for us to dive deep on how to diagnose a faulty Intelligent Servo Module(ISM).

LIST OF MERCEDES BENZ VEHICLES WITH INTELLIGENT SERVO MODULES

Mercedes Benz Intelligent Servo Module(ISM is found mainly on newly built 7-speed tronic transmissions with advance features.

A list are the names of Mercedes Benz vehicles built mainly with Intelligent Servo Module(ISM)

Mercedes A Class

Mercedes CLK

M-Benz CLC

Mercedes CL

Mercedes CLS

M-Benz E Class

Mercedes GLK

Super Mercedes Benz S-Class

Mercedes SL/SLK

TROUBLESHOOTING FAULTY INTELLIGENT SERVO MODULE(ISM)

how to troubleshoot or diagnose a faulty Intelligent Servo Module. Follow these step by step guide on other to diagnose a faulty Intelligent Servo Module(ISM) successfully.


Further, when diagnosing Mercedes Benz Intelligent Servo Module, you need a diagnostic scanner.

I recommend using advanced professional scanner such as MB STAR DIAGNOSTIC TOOL that reads transmission codes.

In such related issues, using MB Star Diagnostic scanner would be of a great help.

PROCEDURE I

Locate your OBD II port and connect diagnostic scanner. OBD port can be found straight downstream of the steering column or dashboard.

“Make sure to turn it on. Other scanners automatically turn on when is connect regarding ignition is on”

PROCEDURE II

Select Vehicle(Mercedes Benz), model and year.

PROCEDURE III

Select vehicle control Units. Make sure it reads all vehicle model details.

PROCEDURE IV

When done selecting vehicle model and year. Locate the Powertrain option and select.

PROCEDURE V

Locate and select Intelligent Servo Module. If selected, you will be able to have a clear view of whats wrong with the vehicle at hand.

• You will be able to read and clear vehicle’s fault codes
• Read vehicle’s live data
• Perform accurate activation/adaptions

MOST COMMON DERIVED FAULT/ERROR CODES

*1994 – Component A80 ( Direct Select defective/cannot reach specific target position)

*1984- Unknown fault code(Unknown fault type)

*5399- ESP CAN Signal gear selected from N15/3 is implausible

*C103- ETC No CAN message received from A80 ( Intelligent Servo Module for Direct Select)



REMOVING MERCEDES BENZ INTELLIGENT SERVO MODULE(ISM-A80 MODULE)

Mercedes Benz Intelligent Servo Module(A80 component) is located on the outside of passenger side of the transmission and to remove is a major job.

It requires removal of drive shaft, transmission bracket and other additional loads. Loads. Getting a manual guide will be of a great help.

COST FOR REMOVAL/REPLACEMENT

Its major job and I estimate labor and parts $2,300

REPAIRS

When repairing on stacked shifter in terms of module replacement, module needs to be “virgin” / new.

This shifter module needs to be program in order to match vehicles VIN or factory details.


Besides, when repairing a faulty Intelligent Servo Modules requires a specialize-d Mercedes Benz technician with advanced tools.


After repairs is complete on the ISM, its selection selector needs to be adapted with advanced diagnostic tools.

WRAPPING UP

When working around Mercedes Benz Intelligent Server Module, its advisable to always go by the right procedure for a successful work done.

Besides, get a good or professional technician to help in working on these modules.

They are quite expensive and much attention and accurate diagnostics is needed when doing stuff like this.

What’s your view, drop your comments!


Disclaimer

Statements expressed above are only for informational purposes and should be independently verified.
