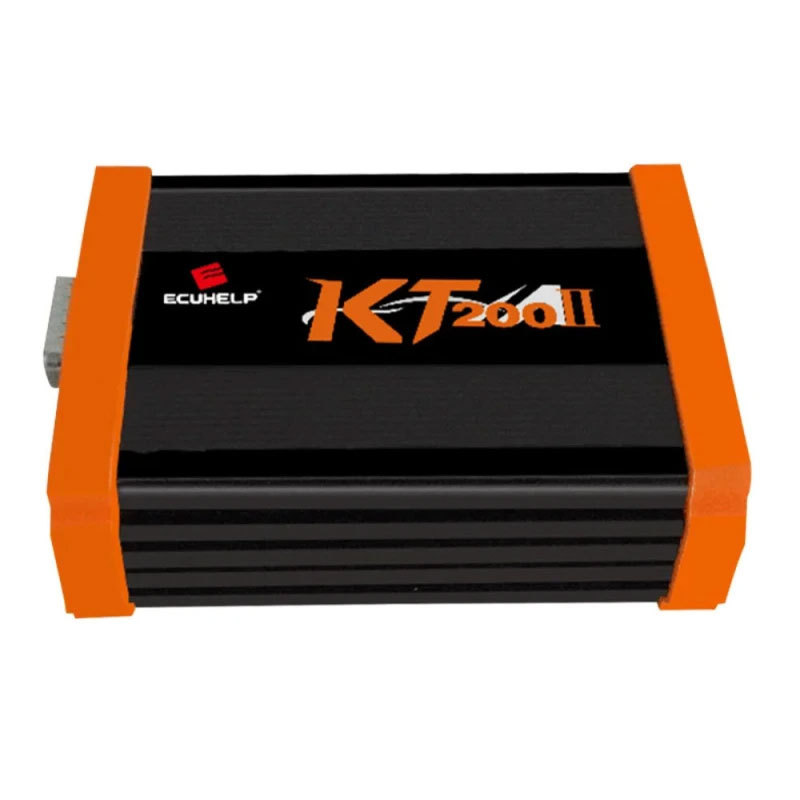

KT200 II KT200II ECU TCU Flash Programmer KTM200 Chip Tuning Master

KT200II is the upgraded version of KT200 ECU Programmer. The price in this link is for KT200 with carton box package. If you need it with plastic box packaging, please contact us and understand that you will need to pay more shipping fees.
KT200 II master support all the functions of KT200. and New protocols have been added to KT200 II, and they can continue to be added stably in the future. OBD reading and writing is stable. Supports dcm7.24.
Fixed the automatic checksum problem of the first generation KT200, and the reading and writing efficiency has been greatly improved.
Many new virtual files have been added to the server.
Strengthened the protection of ECU, and will prompt you immediately if an operation error is made.
Optimized server access efficiency.
Similar to KT200, the KT200II offers three different versions to cater to your specific needs: Auto Version (also called as Standard Version), Full Version, and Offline Workstation version. In this link, you can see all these 3 versions of KT200, but also the KT200 Toyota Lexus BDM Solderless Adapter 20PIN+26PIN, KT200 offline software dongle, KT200 clone adapter are available for choose

0.0 (0 Reviews)

1 Sold

~~$699.00~~ $650.00

Received successfully

Coupon Code

Please select the information you want X

versions:

Auto Version

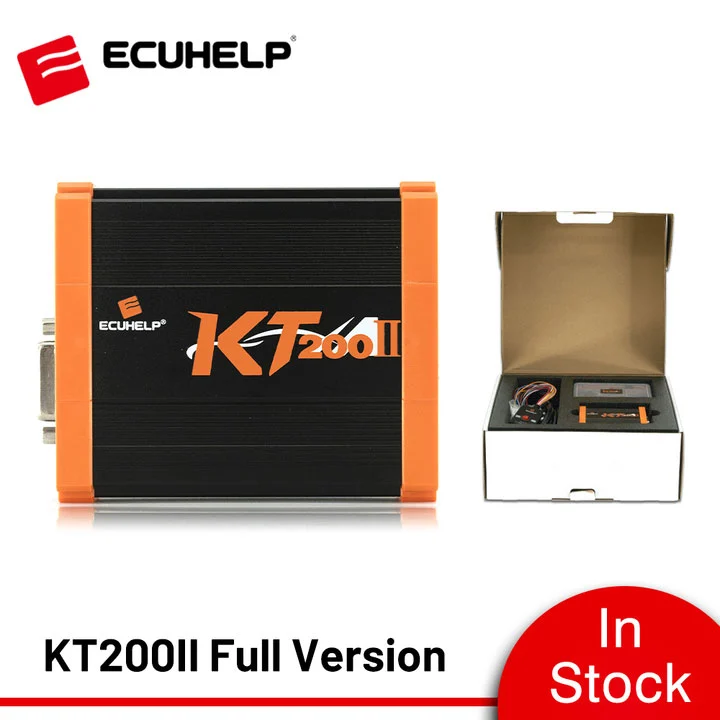

Full Version

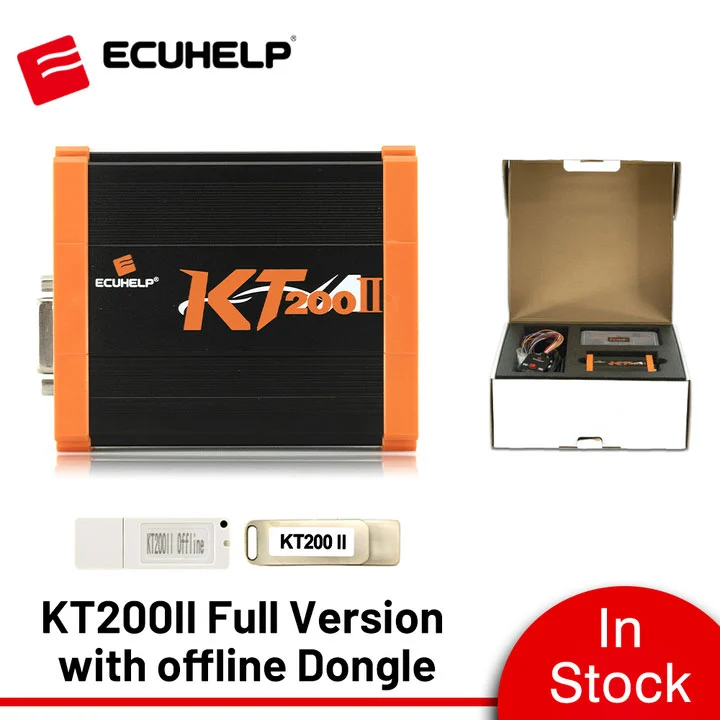

Full version + Offline Dongle

Toyota Lexus BDM/JTAG adapter

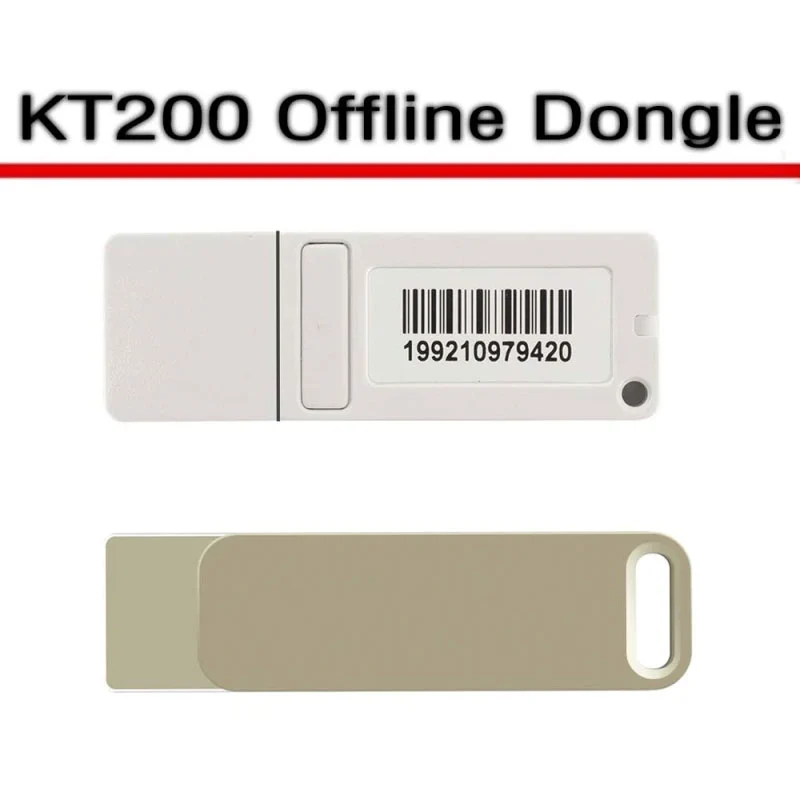

Offline dongle (only can be used for full version)

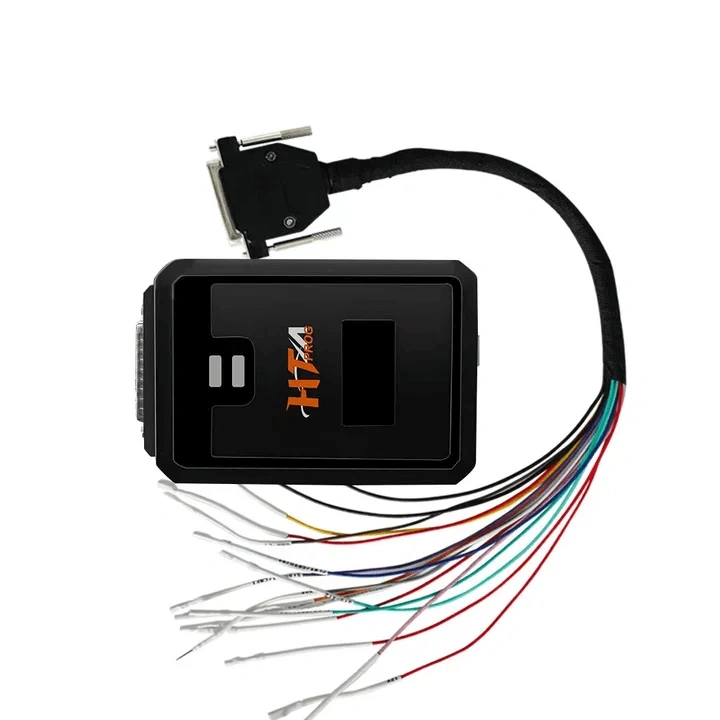

KT200 HTPROG clone adapter (only can be used for full version)

Quantity

Add to Favorites (0)

Description

Q: What difference of KT200II Auto Version, KT200II Full Version, and Offline Workstation Version?
A: The hardware of KT200II Auto Version and Full Version are complete same, both of them works online mode (with an internet connection).
But the Auto Version Enabled Software only Car and Truck.
The full version enabled full software Car OBD, Truck OBD, Tractor OBD, Boat OBD, Motorbike OBD.
Based on KT200II full version, the Offline Workstation version added a Offline Dongle. KT200II Offline Workstation version = Full version + Offline Workstation Dongle. This version works online mode (with an internet connection) and offline mode (without the internet connection).

	KT200II Auto Version	KT200II Full Version	KT200II Offline Workstation Version
Hareware
Software	Car OBD, Truck OBD,	Car OBD, Truck OBD, Tractor OBD, Boat OBD, Motorbike OBD	Car OBD, Truck OBD, Tractor OBD, Boat OBD, Motorbike OBD
Woke mode	Online, need internet connetion	Online, need internet connetion	Online + Offline.

What' s New in the Update:
Suzuki Denso 3390-76xx Bench mode.
DCU17 DV51 JCB OBD Mode.
TCU FCA 62TE Boot mode.
TCU 9G Tronic VGS-NAG3 Bench mode.
TCU 7G Tronic VGS-NAG2 Bench mode.
ME17 ECUs of DR, Baic, Chery from 2020.
PSA Delphi DCM7.1A via OBD.
Nissan Renault EDC17C45 via OBD.
PSA SID807/ SID807EVO.
Siemens / CONT. TCU 7G Tronic VGS-NAG2 Bench mode.
Bosch TCU 9G Tronic VGS-NAG3 Bench mode.
Continental TCU FCA 62TE Boot mode.
Bosch DCU17 DV51 JCB OBD Mode.
Suzuki Denso 33920-76xx Bench mode.
For a closer look at what this update entails, please see this PDF file.

Click Here Free Download KT200II Software (Online)
1. KT200II software is not compatible with KT200.
2. Compatible operating systems: Windows 7. Windows 8/8.1.Windows 10, Windows 11
3. Minimum recommended requirements: CPU> 2.5 GHz (intel i5, 7) RAM 8GB
4. KT200II Language: Italian, English, Dutch, French, Spanish, Polish, Portuguese, Czech, Romanian, Turkish
Very Important: Before installation you need to disable your antivirus and turn off Windows defender.

ECUHELP KT200II Offline Workstation Installation Guide.
1, install setup(in KT200ll offline setup)
2, copy all from TO USE floder to C: \ KT200ll offline USER
3, run KT200ll offine (in first runing, you need connect network)
For the offline software, click Here to download (disable firewall and anti ví rus)

***Be sure to install the online software first (one is to confirm that your device is the full version, and the other is to rule out computer problems). The online version can be opened, and the offline version can also be opened.

Question: Installed kt200ii software on Windows 10 but app can not start.
Answer: Install USB driver from your installation. Restart computer, temporary disable win defender abd firewall. Plug device into usb and power. Open app and WAIT.... It can take up to 1 minute to connect to server.

KT200II Support List:
KT200 ECU Support List
KT200 TCU Support List
Plus the Newly Upgraded ECU Protocols List

ECUHELP KT200II Auto Version Enabled Software License:
Car OBD, Truck OBD, Full System, BDM / JTAG, TOOL BOOT Bench Mode, TCU Gear
***Choose KT200II Full version to add the following software: Tractor OBD, Boat OBD, Motorbike OBD, TCU Gear

KT200II ECU Programmer Highlights:
1. New protocols have been added, and more and more will be added frequently in the future.
2. Fixed the automatic checksum problem of the first generation KT200, and the reading and writing efficiency has been greatly improved.
3. Many new virtual files have been added to the server.
4. Strengthened the protection of ECU, and will prompt you immediately if an operation error is made.
5. Optimized server access efficiency.
6. OBD reading and writing are stable.
7. Support DELPHI DCM7.24 ECU
8. Can work with htprog too
9. New automatic function:Tricore Clone

FAQ:
Q: kt200 2 what' s new anymore?
A: Please read the KT200II newly added protocols.

Q: I have kt200 full version with an offline workstation. Kt200II will be working offline too?
A: Yes, no problem.

Q: Accessories and bench Box of kt200 is compatible with the New kt200II?
A: yes, compatible.

Q: Is KT200II PCB compatible with the old case?
A: NO.

ECUHELP KT200II not only supports the following ECU List / TCU List but also includes an expanded range of added protocols:

NEW FULL SYSTEMS FOR DELCO OPEL / CHEVROLET / GM ECUs
We have added to the list of DELCO bench protocols already present, as the complete management of the control units mounted on OPEL / CHEVROLET / GM
cars: DELCO E38 DELCO E67 DELCO E84 DELCO E92

The possible operations are: Micro + EEPROM reading Micro + EEPROM writing Recovery Checksums

NEW AUTOMATIC FUNCTION: TRICORE CLONE Added automation to clone the following control units with OTP zone adaptation and password:
√ FCA EDC17CP27
√ HYUNDAI / KIA MED17.9.8
√ IVECO EDC17 C69
√ JAGUAR MEDC17.9
√ JAGUAR EDC17CP11
√ LAND ROVER MEDC17.9
√ LAND ROVER EDC17CP11
√ SUZUKI MED17.9.63
√ TOYOTA MED17.9.52

NEW FULL SYSTEM DRIVERS FOR BOSCH TCU ECUs:
6L45 6L50 6L80 6L90
Mounted on cars:
Cadillac, Chevrolet, Holden, GM, GMC, Hummer, Pontiac.
Micro + EEPROM reading
Micro + EEPROM writing
Recovery

NEW FULL SYSTEM DRIVER FOR MARELLI 8GMC ECU
We have added complete management of the engine control unit mounted on Fiat / Abarth:
MARELLI 8GMC
The possible operations are:
Micro + EEPROM reading
Micro + EEPROM writing
Recovery
Checksums

NEW BOOT MODE FOR SIEMENS SIM2K-305 ECUs
Password + boot mode tool for SIEMENS SIM2K-305 control units mounted on Hyundai and Kia cars.
The possible operations are:
Micro + EEPROM reading
Micro + EEPROM writing
Recovery
Checksums

NEW BENCH MODE FOR MG1CA007 ECU
Complete management of the BOSCH MG1CA007 control unit mounted on Indian Motorcycle.
The possible operations are:
Micro SPC58 + EEPROM reading
Writing Micro SPC58 + EEPROM
Recovery
Checksums

NEW OBD DRIVER FOR DELPHI DCM7.24 ECU!
New OBD driver for DELPHI DCM7.24 mounted on
new JCB vehicles.
You can read and write to the ECU via the 9-pin diagnostic socket.
Virtual reading
Writing
Recovery
Checksums

NEW OBD DRIVER FOR PHOENIX L40 ECU!
New OBD driver for PHOENIX L40 ECU mounted on
new JOHN DEERE 8R Series vehicles.
Reading and writing are carried out via the 9-pin diagnostic socket
or via the control unit pinout.
Automatic saving and writing of injectors.
Reading
Writing
Recovery
Checksums
Injector coding

NEW DRIVER BENCH MODE FOR TRW EMS2.4 ECUs
We have added a new BENCH MODE driver for the complete management of the TRW EMS2.4 control unit
mounted on VOLVO TRUCK and RENAULT TRUCK.
The possible operations are:
Micro + EEPROM reading
Micro + EEPROM writing
Recovery
Checksums

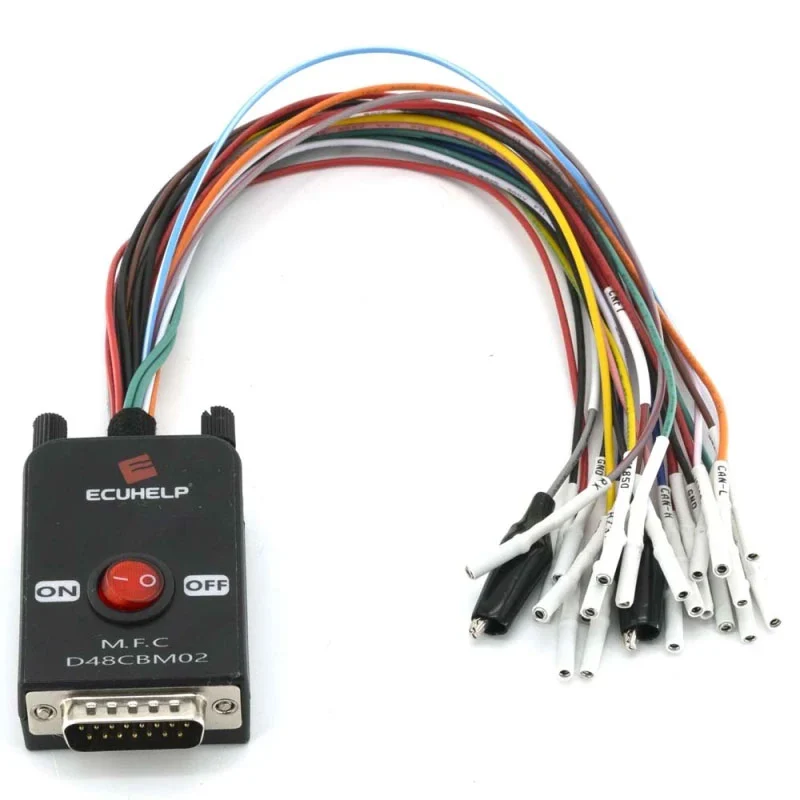

It is possible to connect to the control unit using the Multifunction Cable supplied, or with the DFB-D48CBB04 – TRW EMS2.2 / 3/4 cable.

NEW OBD DRIVER FOR BOSCH EDC17 C11 NISSAN – OPEL – RENAULT
Added new OBD driver for reading
and writing the BOSCH EDC17C11 ECU mounted on NISSAN, OPEL, and RENAULT vans.
The possible operations are:
Reading
Writing
Recovery
Checksums
Communication alternatives in BENCH MODE via pinout and BOOT MODE remain possible.

NEW OBD DRIVER + BENCH MODE FOR BOSCH MD1CS069 JOHN DEERE
New OBD driver added for reading and writing the BOSCH MD1CS069 ECU
mounted on John Deere tractors
The possible operations are:
Real Reading + Virtual Reading
Writing
Recovery
Checksums
Also added Bench Mode for complete management via Pinout.

Understanding KT200II
Introduction to KT200II: KT200II is an ECU programmer designed for reading and programming engine control units (ECUs). Allows communication in multiple modes: Bench (or Service mode), OBD, Boot, BDM, JTAG, Full system via pinout. This tool offers a comprehensive solution for mechanics, with additional TCU package options for automatic transmission.

Functionality of KT200II:
Enables serial communication with Engine and Automatic Transmission control units via the OBD diagnostic socket.

Capabilities in ECU Management:
Read and write ECU data, read it in Bin encrypted format.
Modify ECU data arbitrarily for various purposes, including ECU cloning and ECU service.
The master version is personalized, allowing individual use without data unlocking for the slave.
Master Version of KT200II: A personal version of the device that can be used freely after purchase.

ECU Service Explained:
Chip tuning: to improve engine performance by modifying the data read out by the equipment The data is divided into: Stage 1 . Stage 2 and Stage 3
ECU maintenance: the data is to repair software errors in the ECU and some identity data of the ECU by modifying the data read by the device. We provide the following items:DTC code Remova, EGR & DPF Removal, IMMO OFF, releasing speed limit, mileage correction, Ho start or Cold Start Vmax , and so on.

You can obtain ECUHELP service software ECUHELP for free. All functions of the software are free to use. The software provides ECU model query, wiring diagram search, virtual data download, DEMO download, and free software library. And Data modifier number change expert software.

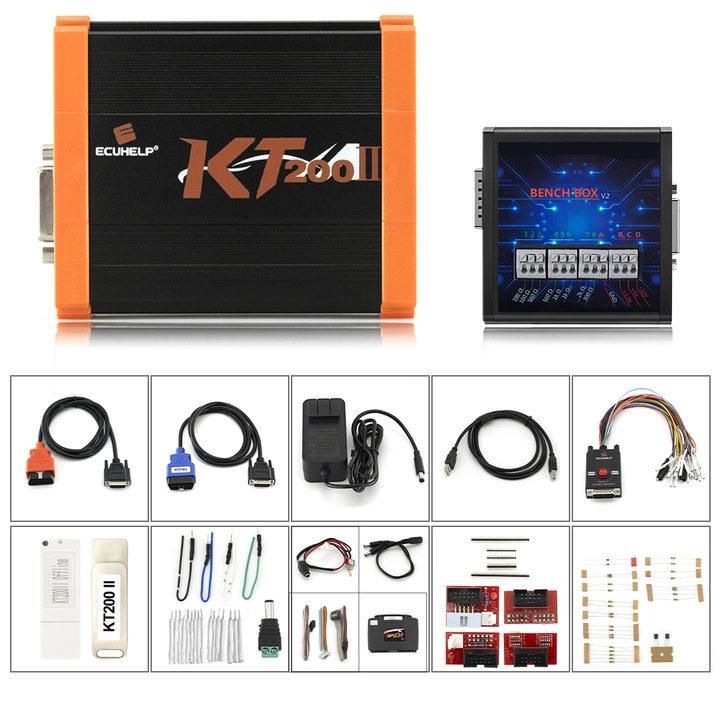

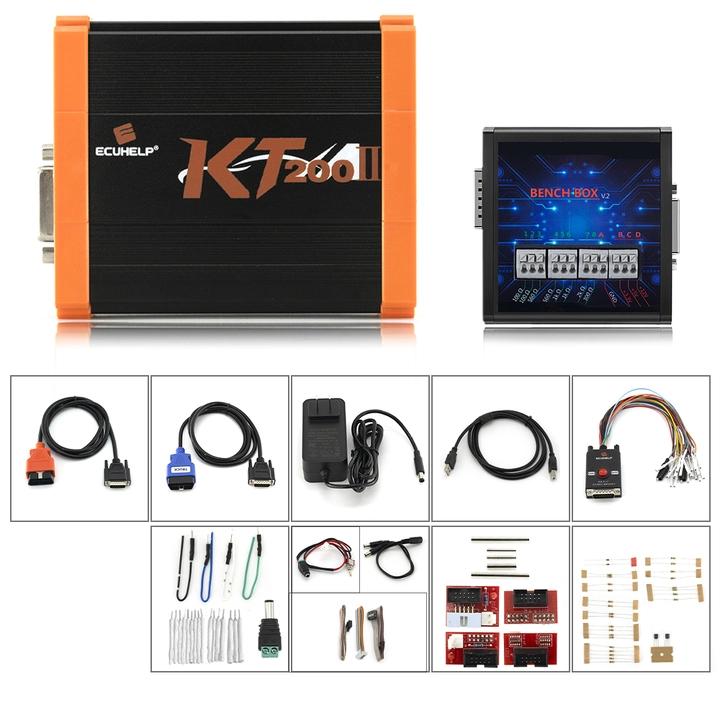

ECUHELP KT200II Auto Version Package Includes:
1pc x KT200 Master Main Unit
1pc x BENCH box
2pcs x OBD wires
1pc x Pinout line

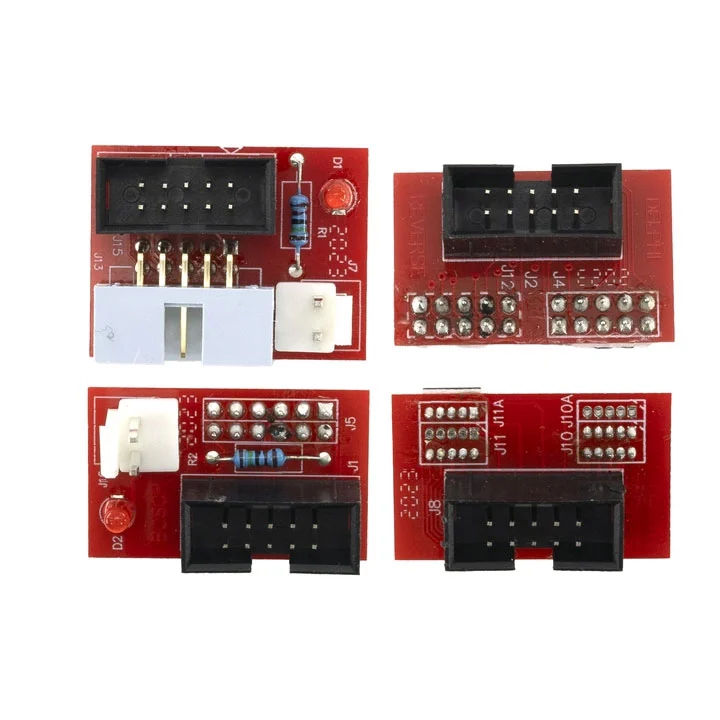

4pcs x BOM adapters
3pcs x Transfer cables
4pcs x Power wire
1pc x Set of resistors
4pcs x Adapter plugs
5pcs x Power adapters
1pc x Offline workstation dongle (available for workstation version only)

Package:
Size: 55*35*25cm,
Weight: 2.5kg
