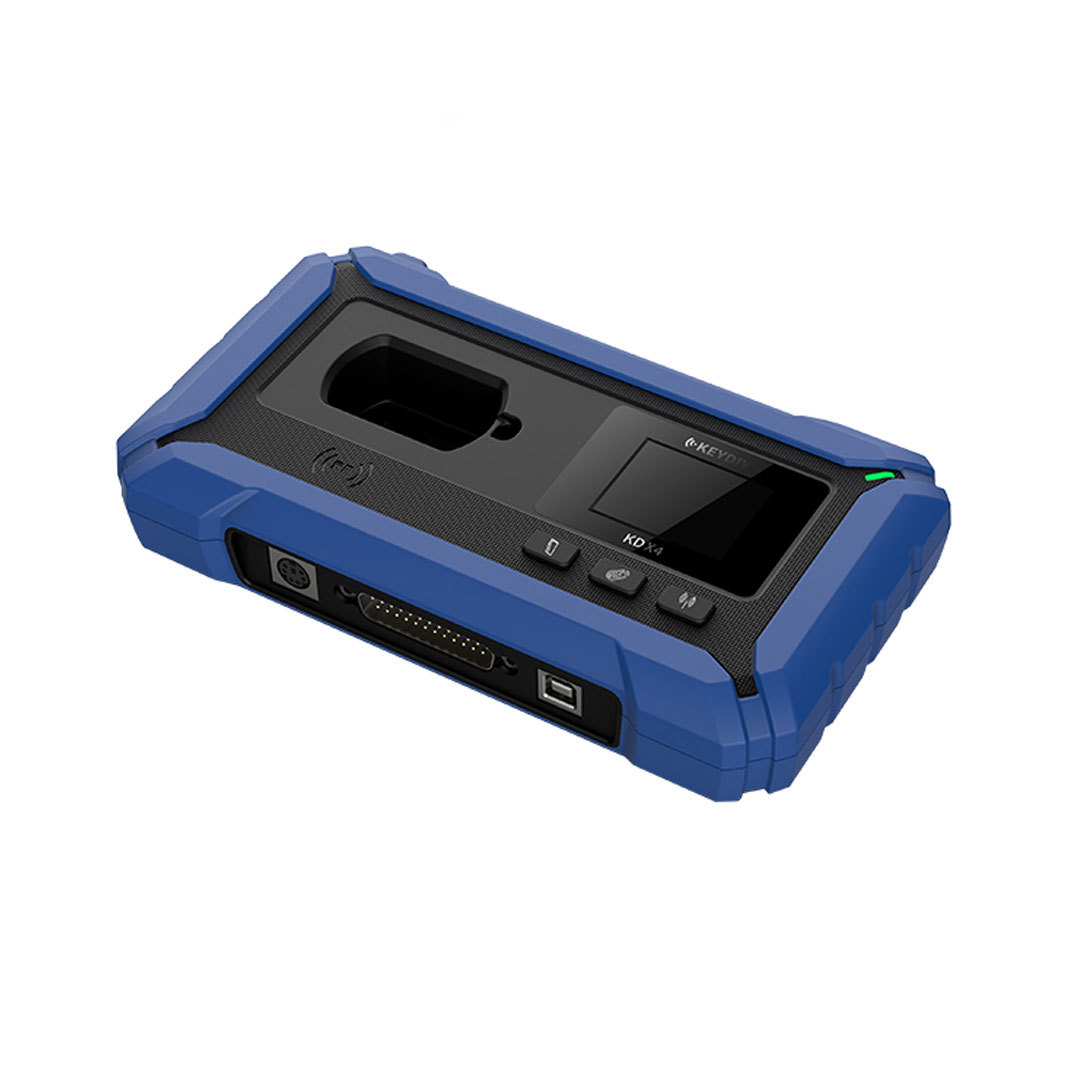

KEYDIY KD-X4 Car Key Progammer Automotive Locksmith's Universal Tool

KEYDIY KD-X4 Locksmith's Universal Tool Features:

• Industry debut UWB (Bluetooth) key detection
• Industry exclusive Toyota used key unlock free programming
• First to release MLB chip detection function
• CANFD integration, no other accessories required
• 24V Chinese heavy-duty truck model programming
• Built in programmer function, will support 5A mileage function
• One second startup, greatly improves locksmith's work efficiency
• Supports 19 languages including Arabic, Korean, German, Spanish, English, Chinese, etc
• One wire harness can cancel Ford alarm and program the Toyota 8A blade key all key lost situation(Need to purchase separately)
•

• KEYDIY KD-X4 Locksmith's Universal Tool Parameters:

  • Battery Capacity: 3.7V, 2000mAh
  • Input Power: 5V/9V/12V, 2A
  • Size: 150 x 85 x 30 mm
  • Working Temperature: -10°C to 50°C
  • Connectivity: BLE, USB 2.0 (Type B)
  • Display: 2.8-inch color screen
  • Storage Temperature: -20°C to 60°C

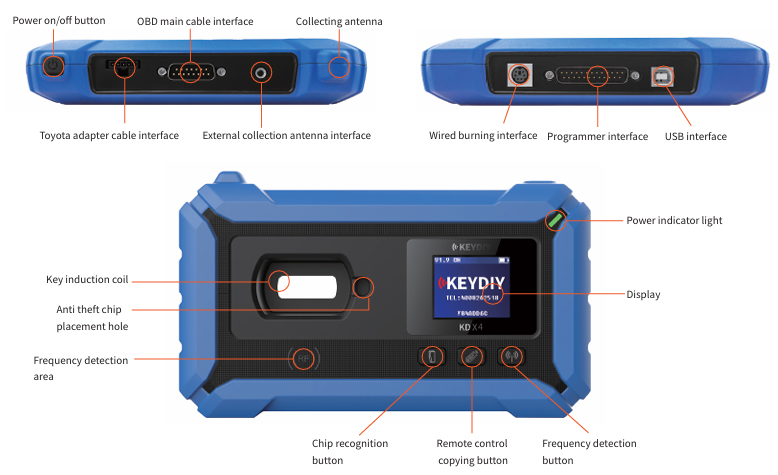

  Button and Interface Function Description



  1. Power On/Off Button:
     • In the off state, press and hold the power button for 2 seconds to turn on the device.
     • When the device is on, press and hold the power button for 2 seconds to turn it off.
  2. Chip Recognition Button:
     • Press to enter the chip detection function.
     • Long press to access the function-switching menu, where you can select:
       • Chip Recognition
       • Ignition Coil Detection
       • System Settings
  3. Remote Copy Button:
     • Press to enter the remote normal copy function.
     • Long press to access the function-switching menu, where you can select:
       • Normal Copy
       • Special Copy
       • Remote Data Comparison
  4. Frequency Detection Button:
     • Press to enter the frequency detection mode within 315MHz.
     • Long press to access the function-switching menu, where you can select:
       • Frequency Detection within 315MHz
       • 433.92MHz Frequency Detection
       • Battery Voltage Detection/Leakage Detection
         (Refer to Figure 3 on the right)
  5. Key Induction Coil and IMMO Chip Placement Hole:
     • Used for identifying and copying car key IMMO chips.
     • Can also generate KD remotes wirelessly.
  6. Frequency Detection Area:
     • Place the key in this area and press the remote control button to detect the frequency.
  7. Power Indicator Light:
     • Power On Status: Indicator light flashes.
     • Charging Status: Indicator light stays on and turns yellow.
     • Fully Charged Status: Indicator light stays on and turns green.
  8. Display Screen:
     • Displays device information, key information, and more.
  9. USB Interface:
     • Used for charging or connecting to mobile phones or PC terminals via a wired connection.
  10. Programmer Interface:
      • Used to read data from Volkswagen MQB dashboards, Audi dashboards, BCM data, and various octagonal chip EEPROMs.
  11. Wired Programming Interface:
      • Used for KD wired remote generation, unlocking original keys, detecting remote battery voltage, and leakage detection.
  12. Collecting Antenna:
      • Collects car ignition data, tests ignition coils, performs chip simulation, and other functions.
  13. External Acquisition Antenna Interface:
      • Used for collecting car ignition data, ignition coil detection, chip simulation, and similar functions.
  14. Toyota Adapter Cable Interface:
      • Used for Toyota/Lexus smart key all-key-lost scenarios.
  15. OBD Main Cable Interface:
      • Connects the external OBD II cable to the car.
      • Works with the Mobile KD App to enable programming functions.


  Product Warranty Instructions

  The warranty period for KD-X4 devices is one year, starting from the date the user activates the device.

  • If a malfunction occurs during the warranty period and is confirmed by our professional personnel to not be caused by user error, our company will provide the following services free of charge:
    • Repair
    • Replacement of components
    • Maintenance
  • If the warranty period has expired, a repair fee will be charged for any repairs or services needed.

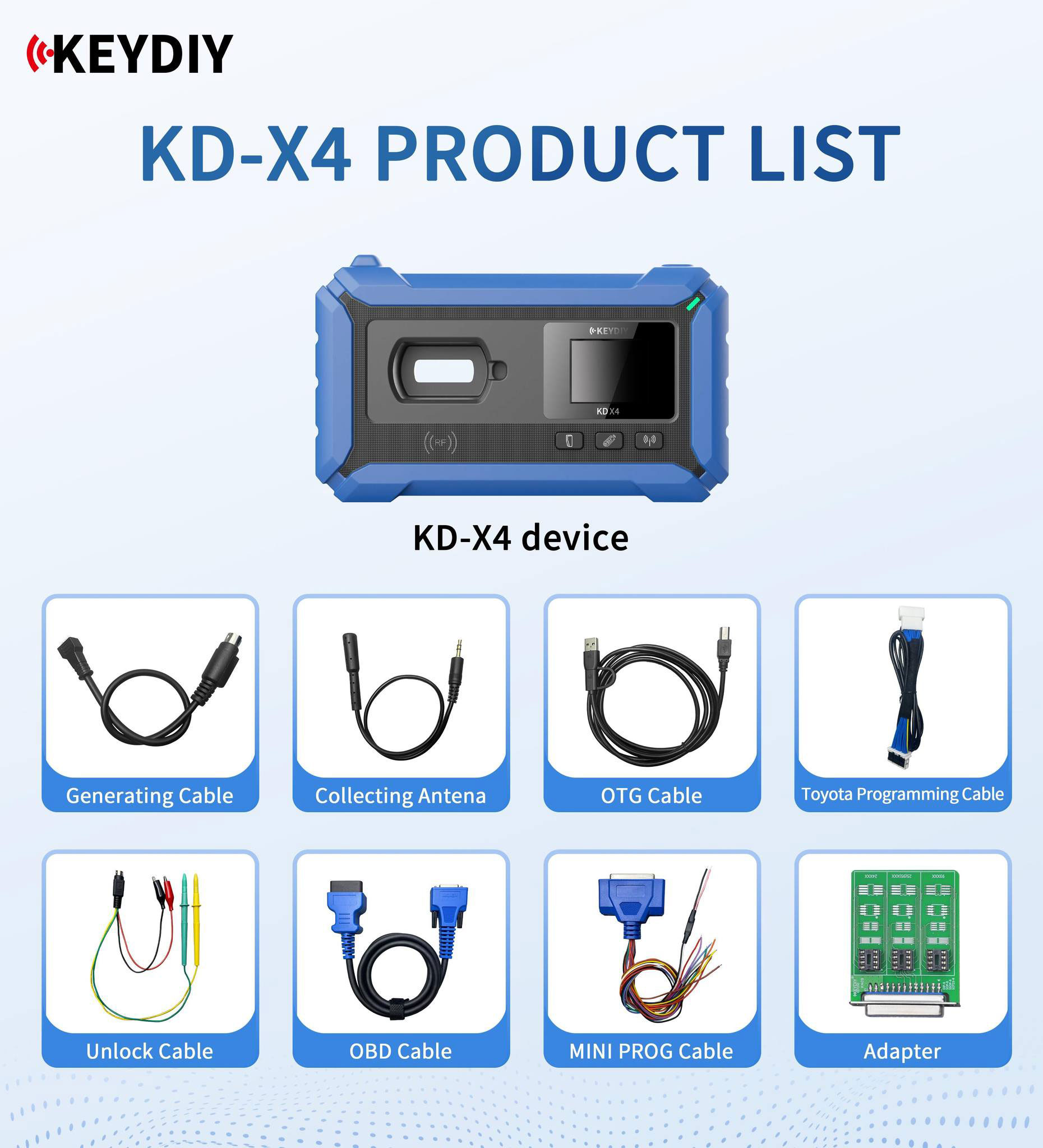

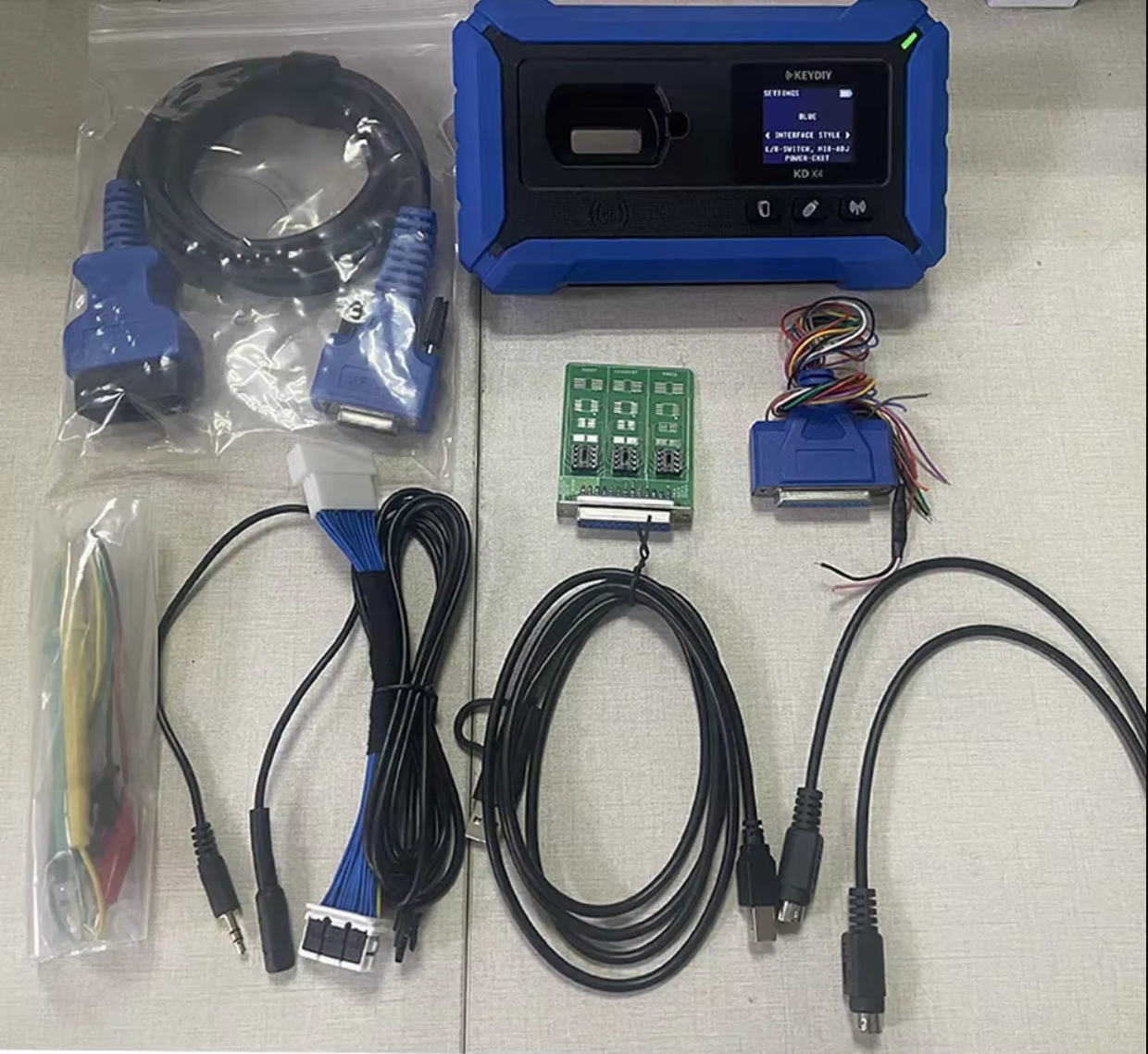

• KEYDIY KD-X4 Locksmith's Universal Tool Package Contents:

  • KD-X4 device
  • OBD main cable
  • USB cable
  • Toyota adapter cable
  • Programmer adapter board
  • Programmer wiring cable
  • Remote control burning cable
  • Key unlocking cable
  • External acquisition antenna

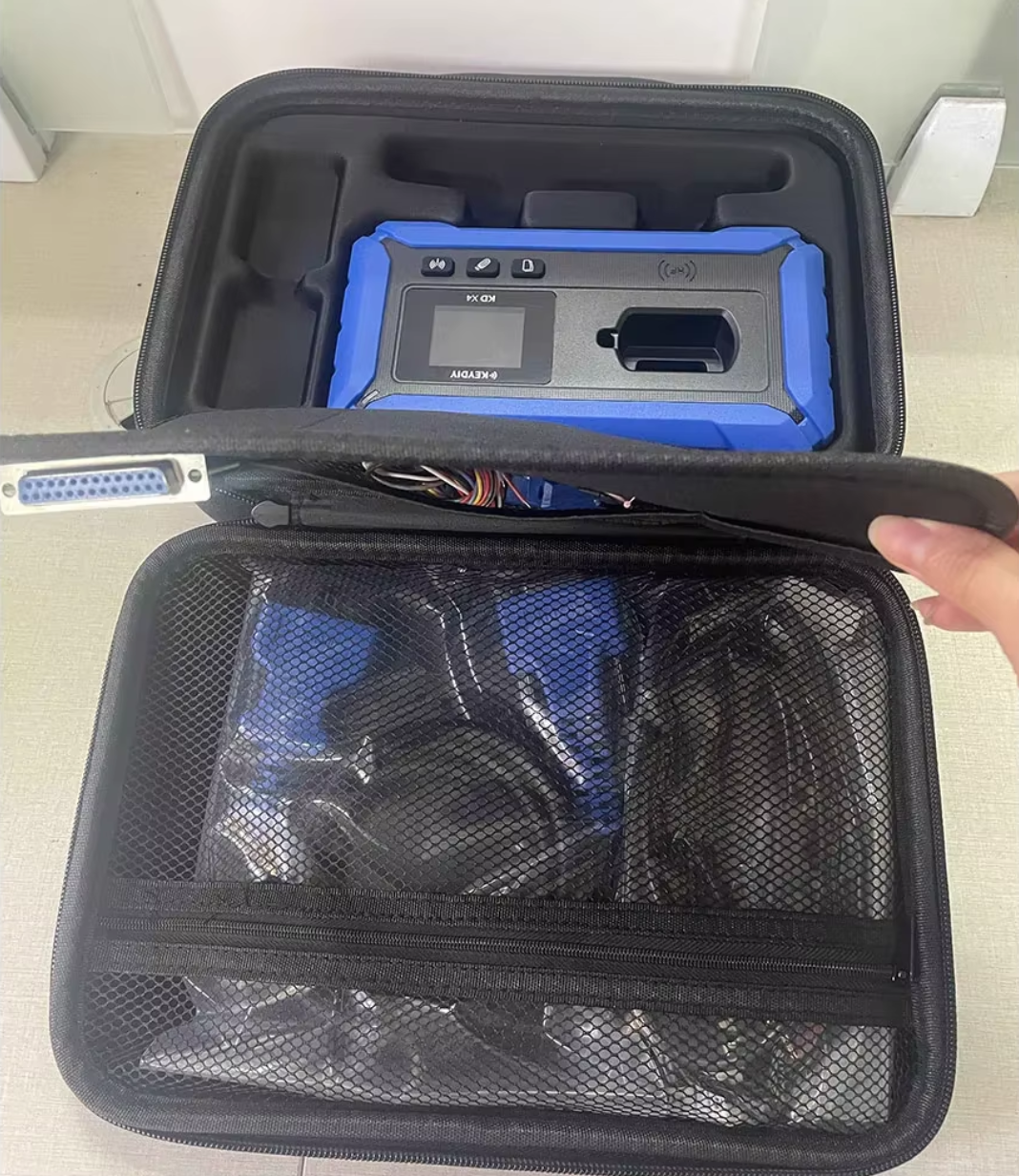

  • Carry Case
