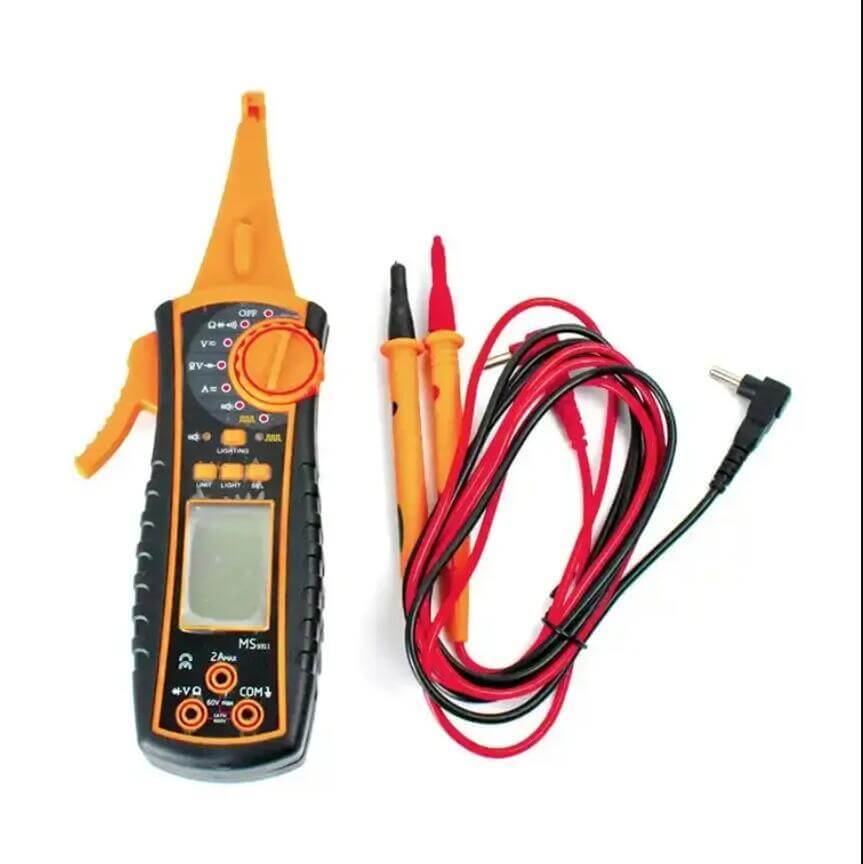

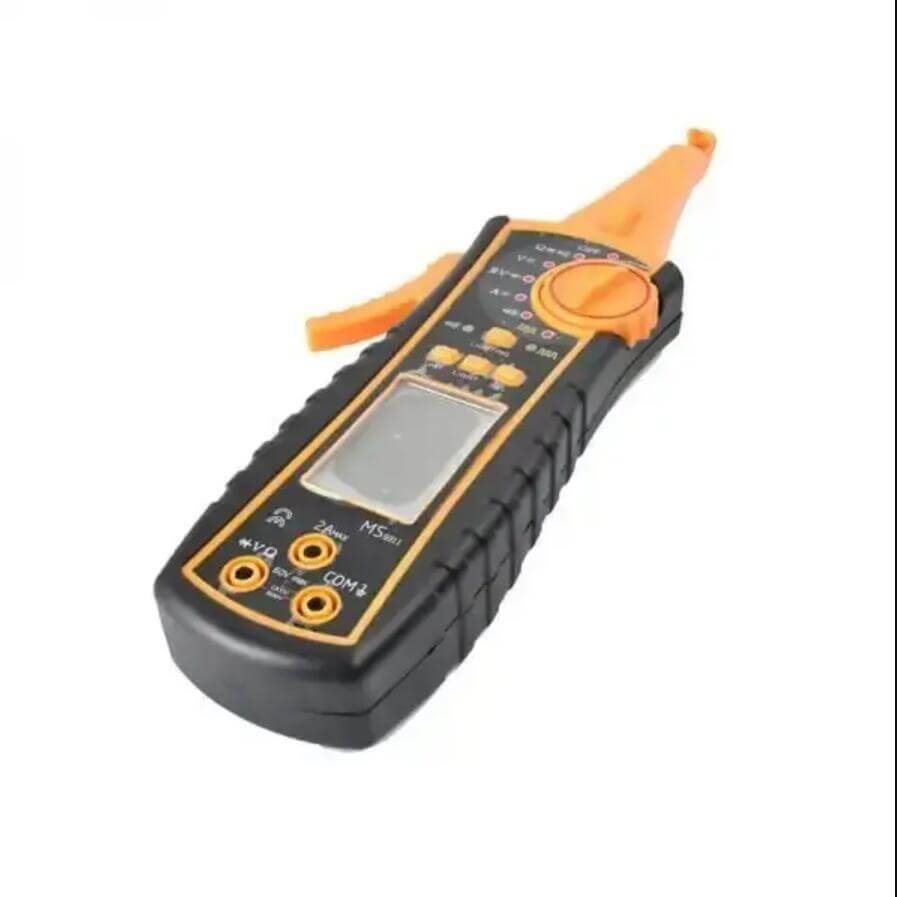

JIAXun Automotive Electrical Tester Multimeter MS8211 MS8311 MS9311

SKU:
JIAXun Automotive Electrical Tester Multimeter. 3 modles available for choose MS8211, MS8311, MS9311
0.0 (0 Reviews)
0 Sold
$79.99 $29.99
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity
-
+
  • JIAXun Automotive Electrical Tester Multimeter MS8211 MS8311 MS9311
  • JIAXun Automotive Electrical Tester Multimeter MS8211 MS8311 MS9311
  • Description

Download MS8211 product manual
Download MS8311 product manual
Download MS9311 product manual


JIAXun-MS8211 Automotive Electrical Tester Multimeter Description



  • Brand Name: Jia Xun
  • Model Name: auto power circuit tester
  • External Testing Certification: ce
  • Electronic: No
  • Hardware Version: new
  • Item Height: 5cm
  • Item Length: 20cm
  • Power: w
  • Material Type: plastic and metal
  • Item Type: Battery Testers
  • Item Weight: 0.45kg
  • Software Version: new
  • Voltage: v
  • Item Width: 10cm



MS8211 Multi-function Auto Circuit Tester

With the increasing technical updates, the unceasing development of auto industry and the continuous renewal of auto parts and electronic components,

auto circuits gradually increase, but the detection tools of maintenance telephone are very few. Jiaxun automobile circuit tester excludes difficulties and

anxieties for vast auto repair factories, 4S shops and auto headquarters.

1. It can accurately detect various line faults under the situation of no damage to rubber cover.

2. It sets multimeter & test lamp gear which has the functions that the top-level multimeter fails to do. It specially detects the wires with bad contact and aging wires.

3. It can detect each fault in the place where the space is narrow and light is weak.



The product is the only four-in-one product with the functions of multimeter, test lamp, lighting lamp and probe.

All functions of digital multimeter are intelligent. Backlight is closed automatically after the backlight of 30s. All ranges are intelligent, and the instrument shuts off automatically after the stop of use for 20min.

It is convenient to use, efficient to detect, easy to operate and has reliable performance.

Please pay attention to following tips before you use this tool:

1.  Light test function can use 12v-24v power, AC, DC both can use;

2.  LED test function can only use DC, no AC.

3. Light test and LED test can not used to do 220V AC test. Otherwise will burn this tool.



Package including:

1pc x Test main unit
2pc x Connect cable
1pc x Clip head



JIAXun-MS8311 Automotive Electrical Tester Multimeter Description

  • Voltage: 12v-24v
  • Item Weight: 1kg
  • Hardware Version: V2018
  • Model Name: JIA Xun MS8311
  • Material Type: Metal&Plastic
  • Electronic: No
  • Software Version: V2018
  • Item Type: Electrical Testers & Test Leads
  • Power: 12v-24v
  • Brand Name: JIA Xun
  • External Testing Certification: ce
  • Special Features: Auto Circuit Tester
  • Item Type: Newest Auto Circuit Tester
  • Is_customized: Yes
  • External Testing Certification: CE
  • Quality: High
  • Test light: DC 0V ~ 30V
  • LED test light: DC 0V ~ 60V
  • Maximum display: 1999
  • Feature1: Support circuit protection, anti-burning board
  • Feature2: Carbon fiber shell,oil-proof.dust-proof,thermostability,Durable
  • Feature3: Wings operating panel to optimize the use of experience



New Arrival!  The Third Generation  Multi-function Auto Circuit Tester Multimeter Lamp Car Repair Automotive Electrical Multimeter


Advantages:
1.Support circuit protection, anti-burning board
2.Carbon fiber shell,oil-proof, dust-proof,thermostability,Durable
3.Wings operating panel to optimize the use of experience
4.Led test light, DC 0V-60V

Product Parameters
Test light: DC 0V ~ 30V
LED test light: DC 0V ~ 60V
Check: direct all tests
Maximum display: 1999
Range: Fully automatic or full manual range
Polarity Knowledge: Automatic
Aging line test block: DC 0V ~ 30V unit symbols and backlight display with automatic shutdown function
DC voltage: 199.9 mV, 1.999 V, 19.99 V, 199.9 V, 1000 V
AC voltage: 199.9mV, 1.999V, 19.99V, 199.9V, 750V
Resistance: 199.9Ω, 1.999KΩ, 19.99KΩ, 1.999MΩ, 19.99MΩ,

Package
1*JIA Xun MS8311 Auto Circuit Tester

JIAXun-MS9311 Automotive Electrical Tester Multimeter Description
  • Brand Name: Jia Xun
  • Model Number: ms9311
  • Item Type: Multimeters & Analyzers
  • External Testing Certification: ce
  • Color: Yellow
  • language: English
  • Version: Auto Circuit tester
  • Hardware Version: Latest Circuit tester
  • Software Version: Latest Circuit tester
  • Material Type: ABS Plastic
  • Warranty: 1 Year
  • Function1: 12v circuit tester
  • Function2: auto lamp for repair
  • Function3: car circuit tester

Multi-function Automobile Circuit Tester Car Auto Power Electric Circuit Tester

It is the update one and the test is accuracy,it is more uesful and operation conveniently.

Function:

It can accurately detect fault location of automobile circuit.

The set multiple gears can be suitable for the detection of various faults.

Suitable for automobile repair shop, 4s shiop,DIY enthusiasts.

1. It can accurately detect various line faults under the situation of no damage to rubber cover.

2. It sets multimeter & test lamp gear which has the functions that the top-level multimeter fails to do. It specially detects the wires with bad contact and aging wires.
3. It can detect each fault in the place where the space is narrow and light is weak.
* The product is the only four-in-one product with the functions of multimeter, test lamp, lighting lamp and probe.
* All functions of digital multimeter are intelligent. Backlight is closed automatically after the backlight of 30s. All ranges are intelligent, and the instrument shuts off automatically after the stop of use for 20min.
* It is convenient to use, efficient to detect, easy to operate and has reliable performance.

  Voltage Measurement Gear:

1. Connect the alligator clip of black test pen to the ground, turn the knob switch to the voltage measurement gear, use the feeler to hook the detected rubber cover wire, press down trigger, and head the probe against the front detected rubber cover wire. In case of any power in wire, LCD will naturally display accurate voltage in wire. (0V-60V DC voltage can be measured).

2. Press function switch key (SELECT), LCD will display alternating current symbol (AC) to measure 0V-380V AC voltage.

For the decorations of auto electric appliances, many control wires or signal wires must be searched. If you use general tools (multimeter or test lamp), rubber cover must be damaged for searching, which is inconvenient and easy to hurt hands.

You can accurately detect the control or signal wires that you need under the situation of no damage to rubber cover, as long as you hook the detected wire with this tool and press down trigger, which is convenient and efficient.

Specification

Testing lamp:DC 0V-30V

Working Voltage:2.4V~3.6V

Max-display:1999

Led lamp:DC0v-60v

Measure range:automative

Hook:all test

Polarity indication:automative

DC voltage:199.9mv 1.999v,19.99v,199.9v,1000v

AC voltage:199.9mv,1.999v,19.99v,199.9v,750v

Resistance:199.0Ω 1.999kΩ,19.99kΩ199.99kΩ1.999mΩ19.99mΩ

​Not include the battery.
