I/O Prog PSA BSI Opel BCM Reader Features
- Read / program Flash and EEPROM memory for PSA BSI
- Read / program Flash and EEPROM memory for Opel ECU BCM TCM EPS
- Read and program Flash and EEPROM memory for automatic transmissions
- Can calculate seed key for Opel BCM that the seed is 5-byte.
- Compatible operating systems:Windows 7, Windows 8/8.1, Windows 10, Windows 11
- Minimum recommended requirements:CPU > 2.5 GHz (Intel i5, i7), RAM > 8GB
- Software cannot be updated online
Description
I/O Terminal offers a comprehensive software and hardware solution specifically designed to read and program Flash and EEPROM memory of ECUs, automatic transmissions, and BSI for various vehicles such as VAG, Mitsubishi, Mazda, Ford, Nissan, Subaru, Suzuki, Opel, Volvo, Alfa Romeo, Fiat, Jaguar, Land Rover, Lancia, Maserati, Hyundai, Kia, Daewoo, and more utilizing the OBD-II data link connector.
->>>Currently, PSA, partial Ford and Opel ECU licenses are available in the basic edition. All licenses will be activated in the future.
->>>Please contact us, if you are willing to purchase licenses.
Advantages of I/O Terminal:
With its integrated K-line and CAN interfaces, I/O Terminal ensures exceptional software compatibility, eliminating the need for expensive J2534 devices. It is capable of reading and flashing of FLASH and EEPROM memory images through the diagnostic connector link. Moreover, it can do autp checksum and correction, ensuring a secure and reliable reading and flashing process.
License Information:
The software is distributed in modules, with each module functioning independently while sharing a common adapter. Users are entitled to download and utilize only the software modules for which they possess licenses. These licenses are stored on specialized cards, which must be inserted into the dedicated adapter slot for software usage. Some licenses can be recorded on a single card, while others need separate recording.
Support list:
MULTITOOL PSA BSI
Siemens D76F0018+95160 KLINE (BSI-E0X-00/BSI-F0X-00); EEPROM 95160 R/W, show PIN;
Siemens 1L00M+95128/95256 CAN (BSI-S0X-00); EEPROM 95128/95256 R/W, show PIN, 9S12DP512 FLASHR/W;
Continental SC667050+95256 CAN (BSI-Q0X-00); EEPROM 95256 R/W, show PIN, SC667050 FLASH R/W;
Valeo 4L00M+95128/25128 CAN (BSI2004-P0X-00); EEPROM 95128/25128 R/W, show PIN, 9S12DP512 FLASH R/W;
Valeo 2M48H+24C128 CAN (BSIEV-X0X-00); EEPROM 24C128 R/W, show PIN, 9S12XEP768 FLASH R/W;
Valeo SC667152+95256 CAN (BSI-N0X-00); EEPROM 95256 R/W, show PIN, SC667152 FLASH R/W;
Johnson Controls easy CAN4+29LV400+95128 CAN (BSI2004-H0X); EEPROM 95128 R/W, show PIN,29LV400BB FLASH R/W;
Johnson Controls easy CAN4F1M-32+95128 CAN (BSI04EV-K0X); EEPROM 95128 R/W, show PIN,
Johnson Controls easy CAN4F1M-32 FLASH R/W; SPC560B60+95128 Support list as below:CAN (BSI04EV2-KEX);
EEPROM 95128 R/W, show PIN, SPC560B60 FLASH R/W
MULTITOOL FORD/BCM
FORD LEAR BCM MC9S12XEP768. MC9S12XEP768
ln addition, fixed the bug that opel/GMDelphi BCM could not read.
OPEL BCM DELPHI 70F3238 + 93C86
OPEL BCM DELPHI 70F3379 + 93C86
OPEL BCM DELPHI 70F3533/70F3634:
MULTITOOL OPEL/GM ECU
Reading/writing of OPEL/GM ECUs by CAN (OBD or wired on the bench) . Also software has bootpin recovery mode.
Supported OPEL/GM ECU types:
* ACDELCO E83 MPC5565 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;
* ACDELCO E78 MPC5566 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;
* ACDELCO E87 MPC5565 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;
* ACDELCO E39 MPC5566 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;
* ACDELCO E39A MPC5566 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
* ACDELCO E98 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
* DELPHI DCM3.7AP MPC5566 FLASH R/W.CAN (OBD);
* DELPHI DCM3.7AP R5F72544 FLASH+DATAFLASH R/W.CAN (OBD);
* DELPHI DCM3.7AP R5F72513 FLASH+DATAFLASH R/W.CAN (OBD)
* ACDELCO E37 M58BW016DB FLASH R/W.CAN (OBD);
* ACDELCO E38 AM29BDD160GB FLASH R/W.CAN (OBD);
* ACDELCO E92 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
* ACDELCO E80 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
* ACDELCO E82 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
* ACDELCO E67 S29CD016 FLASH R/W.CAN (OBD);
* ACDELCO (BOSCH)E84MPC5676 FLASH R/W.CAN (OBD);
* EEPROM DUMP VIEWER, EDITOR.
MULTITOOL OPEL BCM
Supported BCM/BSI types
OPEL DELPHI BCM 70F3238+93C86 CAN . EEPROM 93C86 R/W, show PIN, reset PIN. 70F3238 FLASH R/W;
OPEL DELPHI BCM 70F3379+93C86 CAN . EEPROM 93C86 R/W, show PIN, reset PIN. 70F3379 FLASH R/W;
OPEL DELPHI BCM 70F3633 CAN . 70F3633 DATA & PROGRAM FLASH R/W, show PIN, reset PIN;
OPEL/GM BOSCH BCM 70F3469+24C16.70F3469 FLASH R/W. EEPROM 24C16 R/W show PIN, reset, change odometer, change VIN;
OPEL/GM BOSCH BCM 70F3385+24C16.70F3385 FLASH R/W. EEPROM 24C16 R/W show PIN ,reset, change odometer, change VIN;
OPEL/GM BOSCH BCM 70F3558+24C32.70F3558 FLASH R/W. EEPROM 24C32 R/W show PIN, reset,change odometer, change VIN;
OPEL/GM CONTINENTAL BCM 70F3469+95160(25160). 70F3469 FLASH R/W. EEPROM 95160(25160) R/W show PIN, reset, change odometer, change VIN;
OPEL/GM CONTINENTAL BCM 70F3558+95320(25320) .70F3558 FLASH R/W. EEPROM 95320(25320) R/W show PIN, reset, change odometer, change VIN.
MULTITOOL OPEL/GM TCM
Reading/writing of OPEL/GM TCM 6T30, 6T35, 6T40, 6T45, 6T50, 6T70, 6T75, 6T80, 6L45, 6L50, 6L80, 6L90 via CAN (OBD or wired on the bench).
Supported OPEL/GM TCM types:
TCM 6T30, 6T35, 6T40, 6T45, 6T50 AM29BDD160GB FULL FLASH R/W. CAN (OBD); TCM 6T70,6T75,6T80,6L45,6L50,6L80,6L90
FULL M58BW016DB FLASH R/W. CAN (OBD).
MULTITOOL OPEL/GM EPS
Reading/writing of OPEL/GM EPS modules via CAN (OBD or wired on the bench).
EPS BOSCH 70F3187+95080 70F3187 FLASH R/W 95080 EEPROM R/W. CAN (OBD).

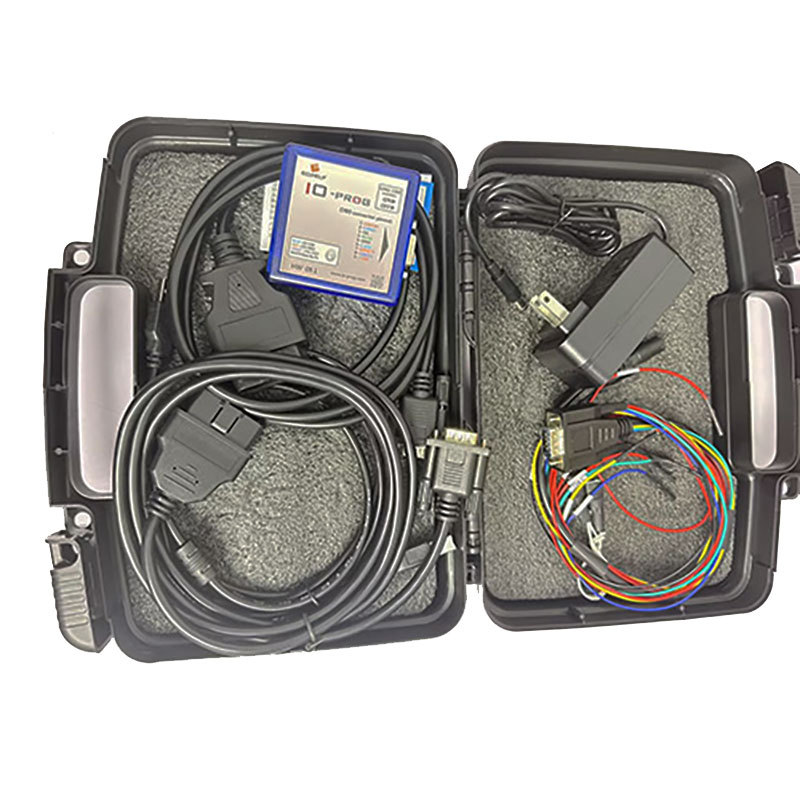

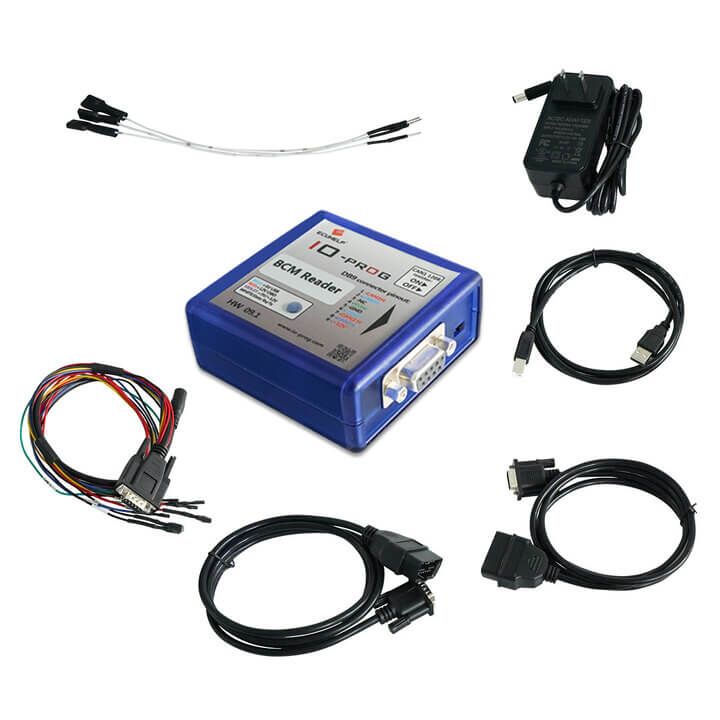

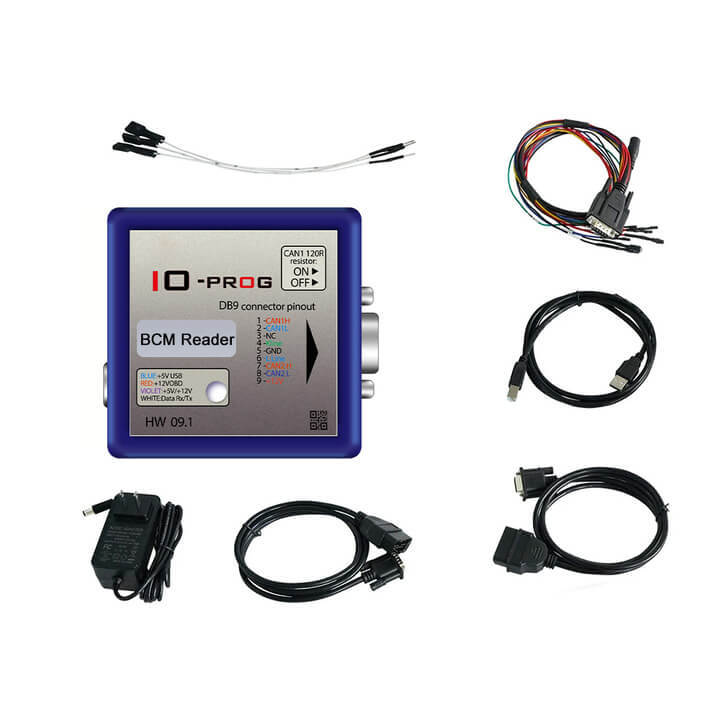

OPEL PSA BSI Version IO-PROG BCM Reader package content

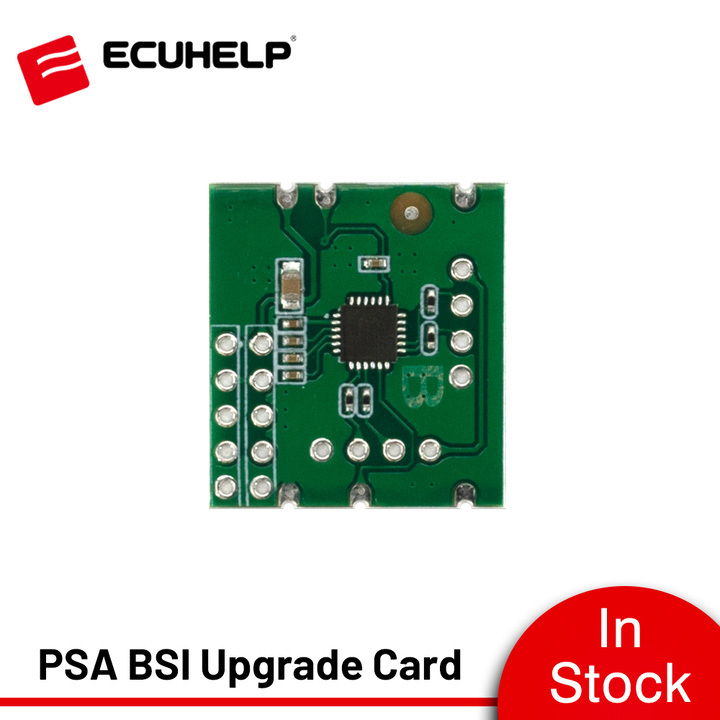

About the ECUHELP IO/Prog PSA Upgrade Card for IO prog Opel GM
If you have one IO Prog with GM Opel License and want to add PSA License, you can order this card to update by yourself.
How to do?
After removing the card in the red frame, weld the io prog psa upgrade card to the original empty space:
