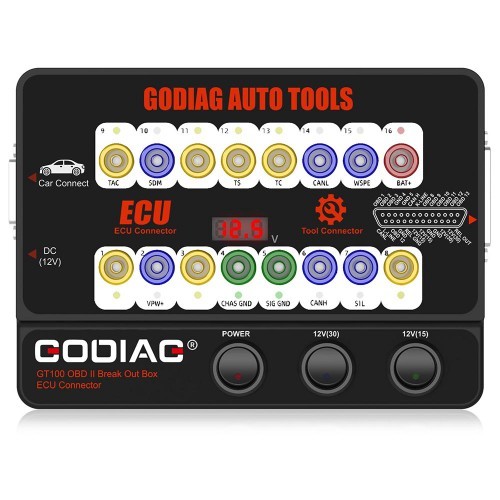

What is GODIAG GT100?
GODIAG GT100 is a brand new ECU connector and protocol communication testing tool. It will greatly help a user to connect the ECU module separately for diagnosis, programming and coding. Also it will tell whether the diagnostic & programming tool can normally send out communication signal.
GODIAG GT100 is a latest testing platform for OBDII protocol communication detection and ECU maintenance, diagnosis, programming & coding.
GODIAG GT100 Features and Functions
1.
OBDII Protocol Detector & Communication Detection: Connect GODIAG GT100 to the OBDII diagnostic port of the car. When the device displays the voltage, turn on the power switch of GODIAG GT100. Then connect to the diagnostic tool, when the tool is communicating with the car, the LED indicator of corresponding protocol will light up or flash. ( If the CAN protocol is detected, it will have the maximum brightness. When the communication is successful, the corresponding CAN-H and CAN-L will dim or twinkling weakly)
2.
Can be connected with ecu ,immobilizer,cluster and programming it on bench.
3. Able to connect the single modules or multiple modules of the vehicle.
4. Can connect with any diagnostic tool such as Xhorse VVDI2, Autel devices, Launch, Foxwell, Vident etc, to tell whether the car communication is good or not.
5. It can convert the car OBD2 interface into 6 pin for signal detection.
Convert OBD1 diagnostic interface to the standard OBD2
6.
Able to power the car when replacing the used battery. Supply power to the car when you change the battery to avoid the vehicle control module data being lost, automatically locked, key remote control fails or the fault light turns on.
7. This GT100 obd2
also works on 24volt system on trucks. GT100 will convert the OBD1 port of special truck to the standard OBD2 diagnostic port according to the protocol.
8.
Banana plug extension: Extend the car's OBDII 16pin interface to tell you whether the OBDII interface connection is good or not, which is convenient for the test of OBDII interface voltage waveform.
9. With 1.2M extension cable to extend the diagnostic cable: The space of the diagnostic interface location is too narrow to connect to the diagnostic tool, or the user find that the diagnostic cable is not long enough during maintenance. It can be extended by 1.2 meters.
Godiag GT100+ Features and Functions

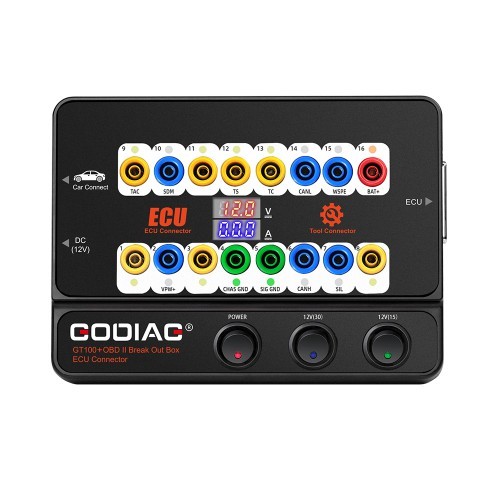

GT100+ (GT100 Pro) = ECU connector+ OBDII Protocol Detector + Electronic Current Display.
1. GT100+ is the new generation of GT100, Adds Electronic Current Display. You can intuitively see the current display of the ECU by connecting the ECU module with the Banana interface or the DB25 cable, which can make your work much easier.
2. GT100 Pro has all functions of GT100.
3. The cable can be extended, with an
Optional Dedicated Adapter.
4. GT100+ adds Electronic Current Display: On bench connect the ECU module by using the banana connector or db25 dedicated ECU adapter, Godiag GT100+ will display the electronic current.
5.
GT100+ Adds CANBUS Protocol Communication: GT100+ Pin 1, 9, 3, 11 12, 13, 8 [corresponding to the yellow banana connector on the machine], these non-standard obd2 protocol interface may display CAN BUS or K-Line communication protocol.
GT100 can only display K-Line Pwm Vpw+ KWP 2000 protocol. GT100+ will display CANBUS K-Line Pwm Vpw+ KWP 2000 protocol communication.
6. Reset instrument/immobilizer when all keys lost: When you want to program key for VW, Porsche, Mitsubishi and nother cars with all keys lost, or to program Toyota ECU, you need to activate the dashboard (reset instrument) or wake up the immobilizer module first. Then you can operate directly by using GT100+.
a. To replace the engine ECU of Toyota or to use some key programmer to program Toyota when all keys lost, it requires to short-circuit PIN13-PIN4
b. To program Mitsubishi key with all keys lost or to set OBDII when all remote keys lost, please short-circuit PIN1-PIN4.
c. For Porsche and VAG 4th generation / 5th generation keys (for example new A6L Touareg A4 Q5 A7), please use GT100+ to short-circuit banana connector PIN 16—-PIN 1 to lit up the dashboard, after that use the key programming tool to connect with the female adapter of GT100+ for data collection. Some vehicle dashboards won’t be lit up, but data can also be collected, for example: A6L Q7.
Notice: Please choose in Version according to the voltage of your local place.

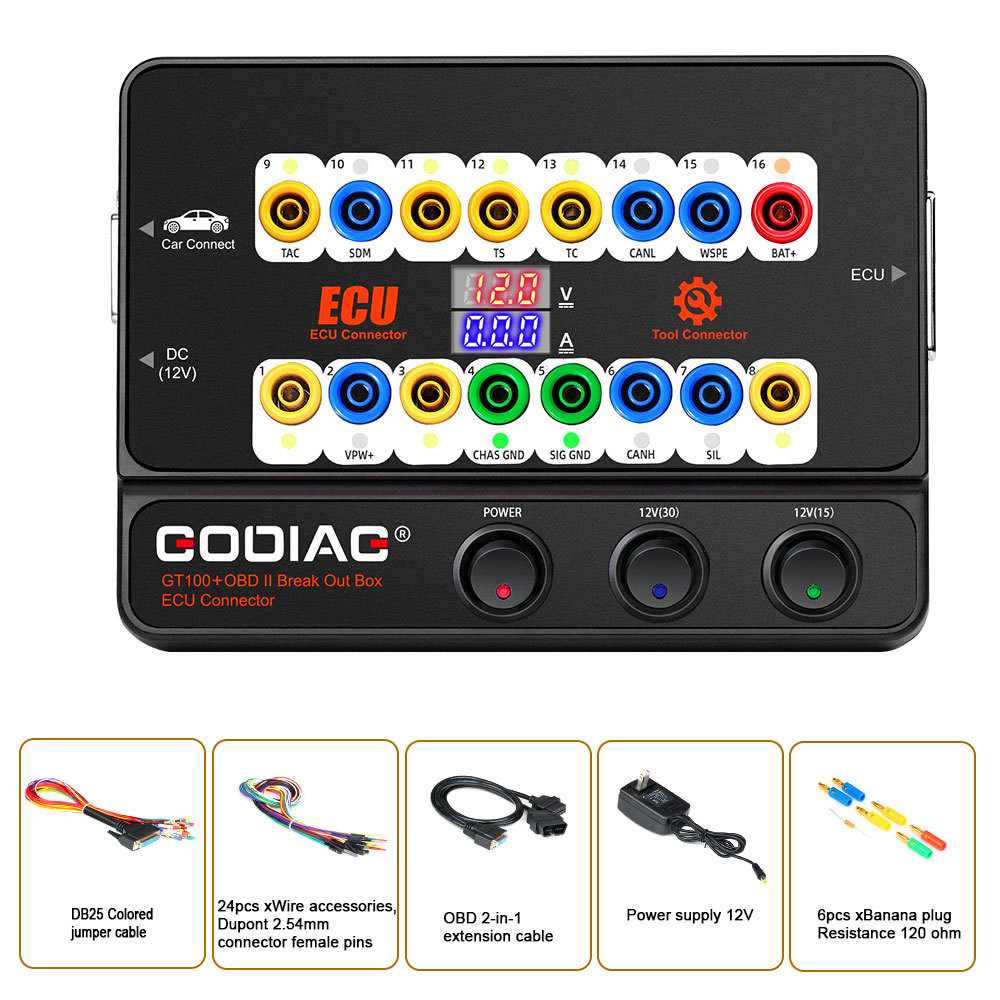

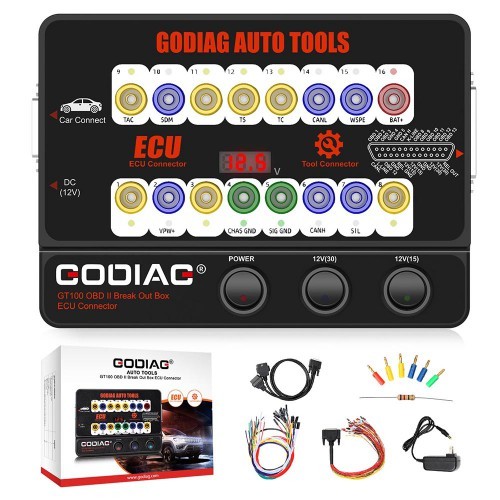

Package includes:
1pc x Host
1pc x OBD 2-in-1 extension cable
1pc x Colored jumper cable
1pc x Power supply 12V
1pc x Resistance 120 ohm
6pcs x Banana plug
24pcs x Wire accessories, Dupont 2.54mm connector female pins
| GT100 |
GT100 Pro (GT100+) |
 |
 |
| |
|
