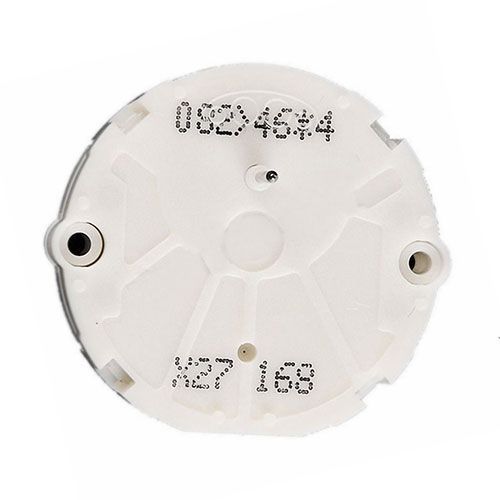

GM X27 168 Stepper Motor GMC Buick Excelle GL8 Instrument Repair

S10033
White X27 168 Stepper Motor Cluster Gauge for GM GMC BUICK Speedometer Repair. Imported from Switzerland, with original packaging. Fully replace the XC5 168,X15 168,X25 168 stepping motors
Price:
USD
$9.99
$19.99
    Please select the information you wantX
Quantity:
-
+
(1000 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews

White Switec X27 168 Stepper Motor Cluster Gauge for Ford Mustang Speedometer Repair

x27.168 motors are the same motors that authorized GM Servive Centers use. Imported from Switzerland, with original packaging.

New generation steppers perfectly replace for the Xc5 168, X15 168, X25 168 and X27 168 that are in your cluster from 2000 to 2006 General Motors instrument clusters

  • The stepper motor has a 4 gears design construction in order to guarantee high efficiency, high position accuracy and a robust gear system .
  • The unique gear shape design reduces friction and noise. A special material is used for each component to increase liability and safety.
  • This new generation steppers is a direct replacement for the defective motors that are in your cluster now.
  • This is a non-OEM product. Accessory only.
Features:

Interchange Part Number Xc5 168, X15 168, X25 168,X27 168
100% brand new ,never used and installed
Work in any gauge position and are the latest and greatest.
Each Gauge has a stepper motor and the item will fit almost all Gauges.
Quality Waranty, Money Back Guarantee
Working Voltage: 5 to Voltage.
Low current consumption: less than 20mA, 5V, 2X100mW.


Notice:

Please make sure you can handle this work, it may need some professional equipment and electronic knowledge of PC Boards.
We are not responsible for any damages caused by the installation of these motors.


Package Include:

1 x Stepper Motors


Reminder
pay attention to check carefully with the installation of the new motor, make sure the installation is correct. then start the vehicle, wait for 3 seconds, close the key, then use the pointer to zero position directly into the position.

Do not rotate the motor manually as much as possible,or it will destroy the speed ratio of the motor.
In addition, do not force too much when inserting the pointer. The bearing capacity of the needle shaft of the motor can’t exceed 3.4KG. If it exceeds the coil of the motor, it will affect the use of the motor.
