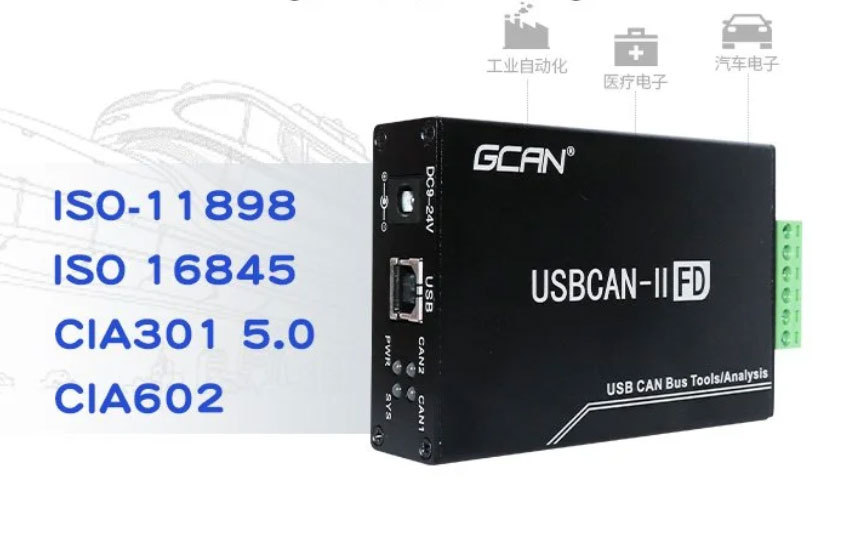

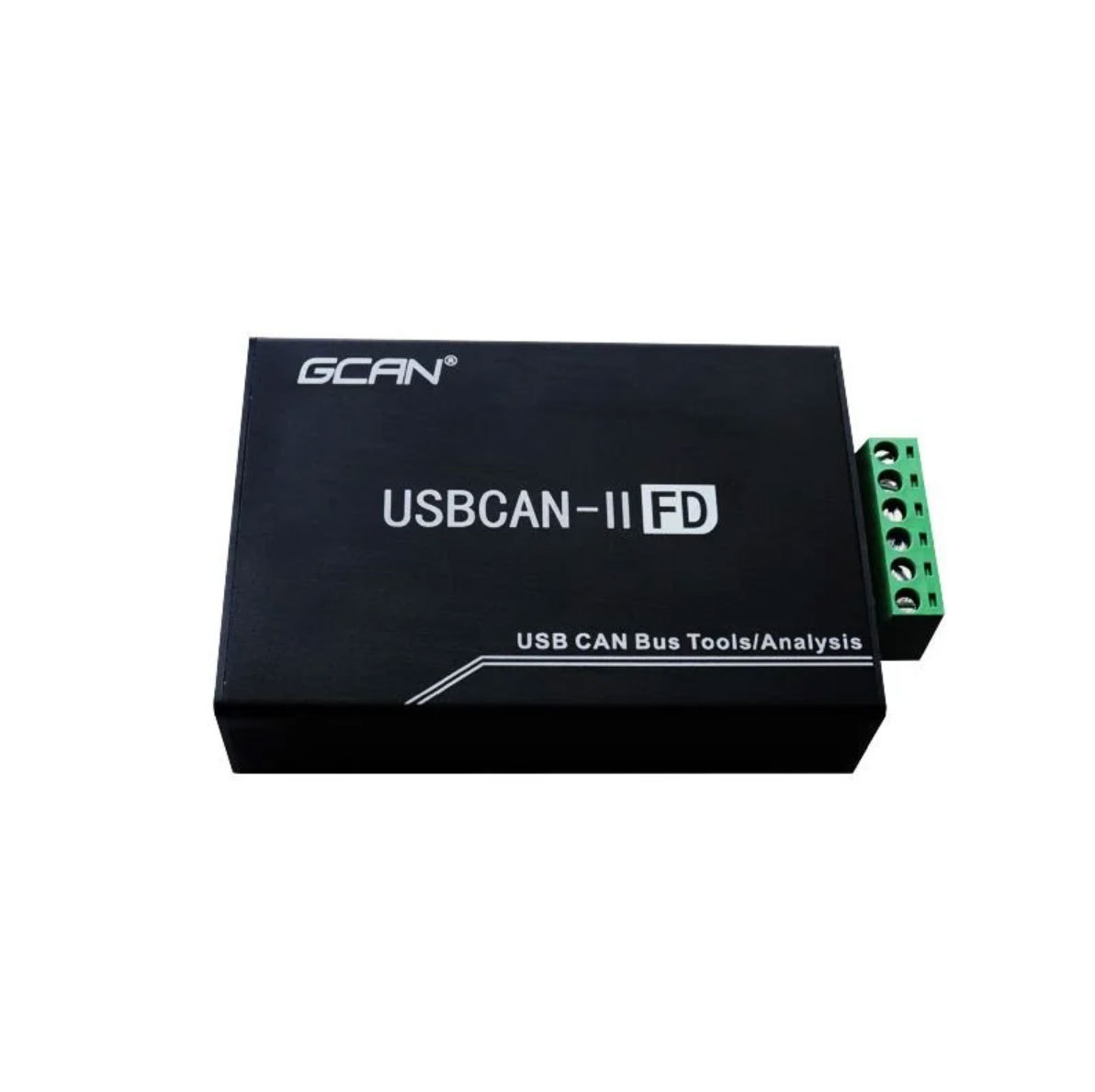

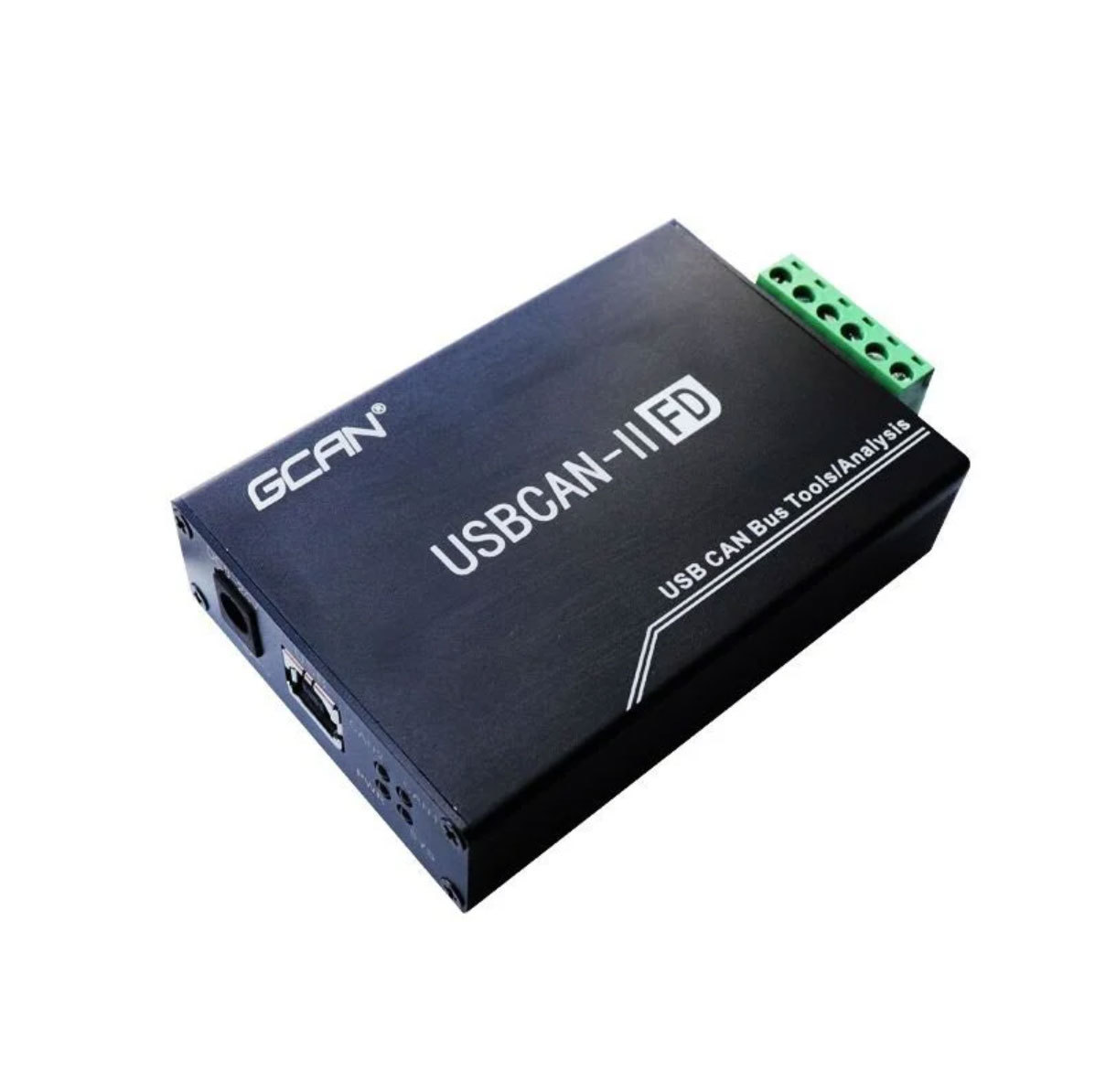

GCAN USBCAN-II FD Adapter USB-CAN Converter CAN BUS Analyzer for CAN-bus Network Diagnosis and Test, Support Standard CAN2.0A/B CAN FD Data Communication

GCAN USBCAN-Il FD adapter is a high-performance CAN FD interface card specifically developed for the CAN FD network. The device integrates 2 CAN FD interfaces and supports lSO standard CAN FD and Bosch CAN FD standards. Engineers can use the device to debug, analyze CAN FD or ordinary standard high-speed CAN networks, and use the functions in ECAN Tools software to send and receive data easily.

The software supports Windows7/Windows10 and other Windows operating systems.

Support secondary developments: All types of GCAN USBCAN products support secondary development. We provide secondary development dynamic and static link libraries, and provide development routines and routine source codes. The library functions are simple and convenient to use. Users can quickly apply our USBCAN devices in your own project. lf the user has used our company's other USBCAN secondary development before, you only need to make a simple modification to the previous software to complete the development of CAN FD software.

Can test variable baud rate CAN FD bus
The frame data segment of standard CAN FD data supports variable baud rate, and USBCAN-ll FD supports variable baud rate function, so almost all CAN FD networks on the market can be tested and analyzed.

With two independent CAN/CAN FD channels, and the signals are isolated from each other
USBCAN-ll FD has two independent CAN/CAN FD channels. The data between the two channels will not affect each other.Users can use the device to connect two independent CAN/CAN FD networks at the same time.
The two CAN bus interfaces of USBCAN-ll FD and the external CAN bus have an electrical isolation level of 2500V, which can effectively avoid the backflow damage caused by the different ground potentials of different nodes, and is particularly suitable for the testing of electric vehicles and trains.


When USBCAN-ll FD is used to test CAN FD network, the maximum baud rate can be set to 5Mbps, and the maximum data
length can be configured to 64 bytes, which can meet the usage of CAN FD network monitoring, analysis, and testing on the market.
