for 2008-2013 Chrysler Dodge Jeep Steering Lock Emulator ESL ELV Simulator - Plug and play - No Need Programming

We have Steering Lock Emulator Simulators for Chrysler Dodge Jeep Fiat cars below:

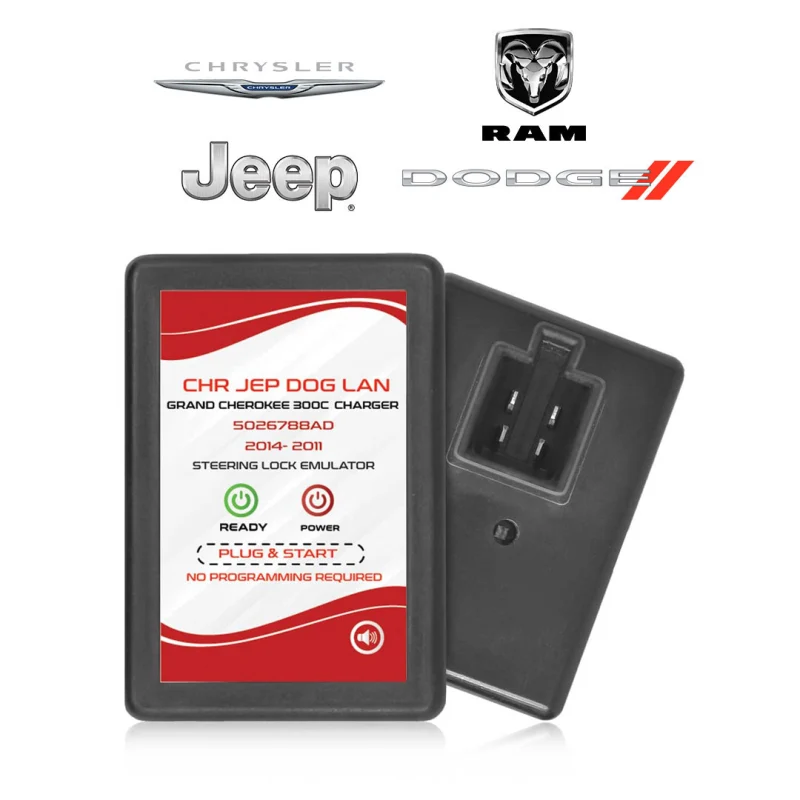

Model #01_Jeep Grand Cherokee / Dodge Challenger Steering Lock Emulator Simulator
For Original connector With Lock Sound.

Plug and Play, No Programming Required.

Compatible Original Steering Lock Part Number: 5026788AD.

Compatible models:

• Jeep Grand Cherokee 2011-2013
• Dodge Challenger 2012-2012

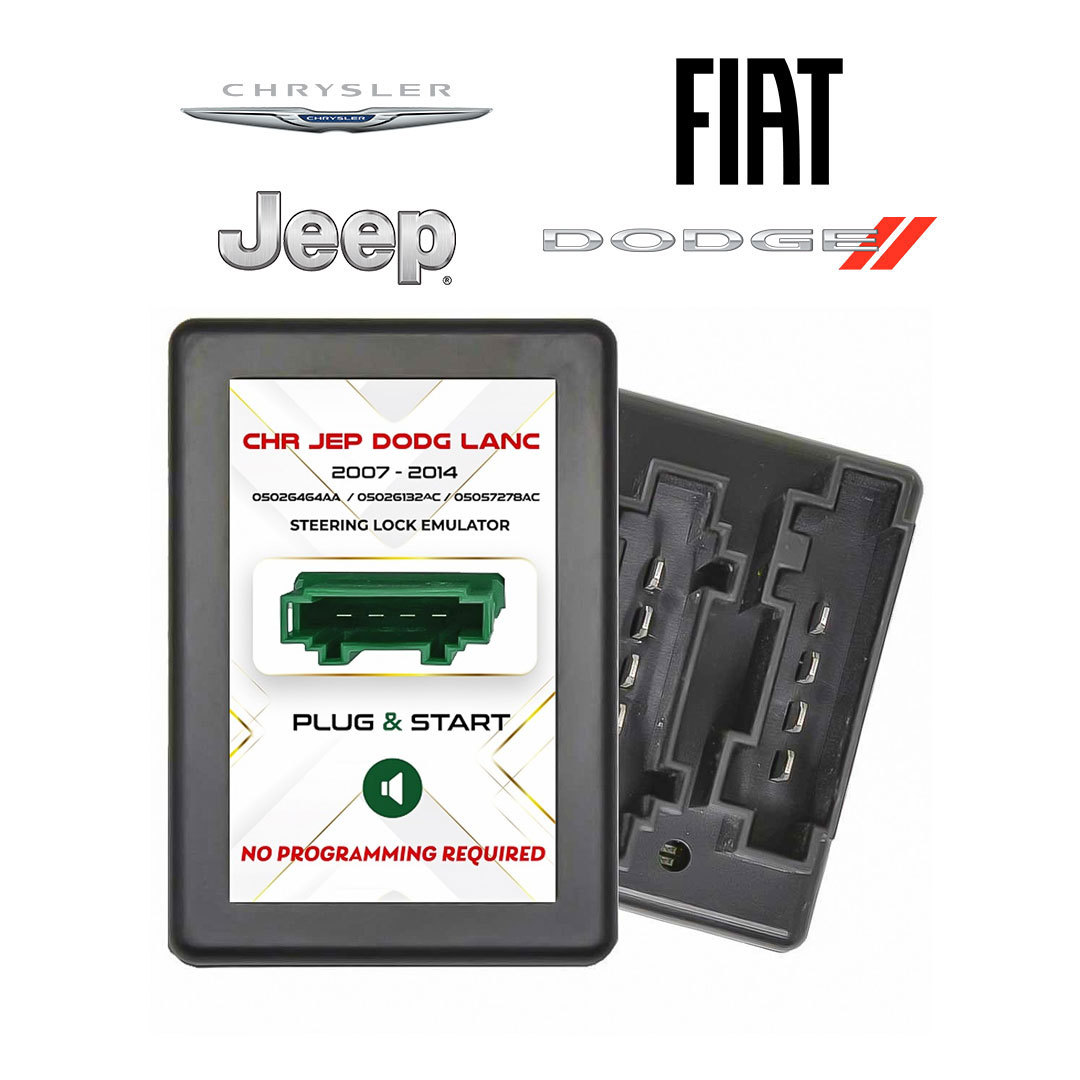

Model #02_Chrysler 300 / Jeep Grand Cherokee 2011-2013 Steering Lock Emulator Simulator
For Original connector With Lock Sound.

Plug and Play, No Programming Required.

Compatible Original Steering Lock Part Number: 05026132AC / 05026464AA / 05057278AC

Compatible models 2007-2014:

• Jeep.
• Chrysler.
• Dodge.
• Lancia.
• Fiat.

Jeep Chrysler Dodge Fiat ESL Electronic Steering Lock Emulator Pinout:

• Pin1: +12v
• Pin2: GND
• Pin3: not used
• Pin4: LIN line

What is Steering Lock Emulator?

Why Buy Steering Lock Emulator?

• Steering lock problem Is one among the foremost frequent problems in vehicle starting system, ELV Is a Self-occurring mechanical failure in the steering column lock. The occurrence of the fault does not depend on any fault. In case of malfunction, even If there Is no problem in the vehicle key, the working key can not start the vehicle because the ELV steering column lock can not be activated.



  • In this case, a new ELV steering column lock must be installed and programmed into the Vehicle. Car dealer need to order new steering lock and program it which is just too much costly and required while of waiting.



• Instead of buying a new elv module, buy an electronic steering lock emulator will fix your steering lock malfunction error, and therefore the ESL ELV universal steering lock emulator will bypass ELV always. No require coding, simply connect it , and it'll fix fail ESL.

Car Steering Lock Emulator Installation Steps:

1. Unplug the ELV wiring wire from the steering lock unit.

2. If vehicle steering lock is in lock mode, steering lock unit must be faraway from the car

3. Connect ELV Emulator to car and start the car.
