Fgtech Galletto 4 Master v54 Fgtech FG Tech Galletto 4 Master Support BDM Function ECU Programmer Chip Tuning

SKU:

Fgtech Galletto 4 Master V54 is a famous chip tuning tool for all cars, trucks, motorcycles, Marine, BDM MPCxx, BDM Boot Mode Tricore, checksum.
This item not only work as fgtech galletto 4-Master, but also work for BDM-OBD. Support Tricore Function.

0.0 (0 Reviews)
0 Sold
$0.00 $55.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity
-
+
  • Fgtech Galletto 4 Master v54 Fgtech FG Tech Galletto 4 Master Support BDM Function ECU Programmer Chip Tuning
  • Fgtech Galletto 4 Master v54 Fgtech FG Tech Galletto 4 Master Support BDM Function ECU Programmer Chip Tuning
  • Fgtech Galletto 4 Master v54 Fgtech FG Tech Galletto 4 Master Support BDM Function ECU Programmer Chip Tuning
  • Fgtech Galletto 4 Master v54 Fgtech FG Tech Galletto 4 Master Support BDM Function ECU Programmer Chip Tuning
  • Fgtech Galletto 4 Master v54 Fgtech FG Tech Galletto 4 Master Support BDM Function ECU Programmer Chip Tuning
  • Description

Fgtech Galletto 4 Master V54 is a famous chip tuning tool for all cars, trucks, motorcycles, Marine, BDM MPCxx, BDM Boot Mode Tricore, checksum.

This item not only work as fgtech galletto 4-Master, but also work for BDM-OBD. Support Tricore Function.



Attention :

1. If CD has problem, do not worry, pls contact me to get link to download software.
2. Before install software, please close all anti-virus software.

Specifictions:

1. Version: Firmware0475, SoftwareV2012.02
2. PC System:windows xp , vista, win7 32bit/64bit
3. Software Language: English, Spanish, French, Italian, German, Czech, Portuguese, Turkish
4. Compatible Car List:



Top 6 Reasons To Get FGTech Galletto 4

1. Latest Version: 2014 V54
2. Supported Operating System:  windows XP. more friendly than Fgtech v53 , much easier to operate
3. Unlock Version: Can Use Directly. No Need To Activate

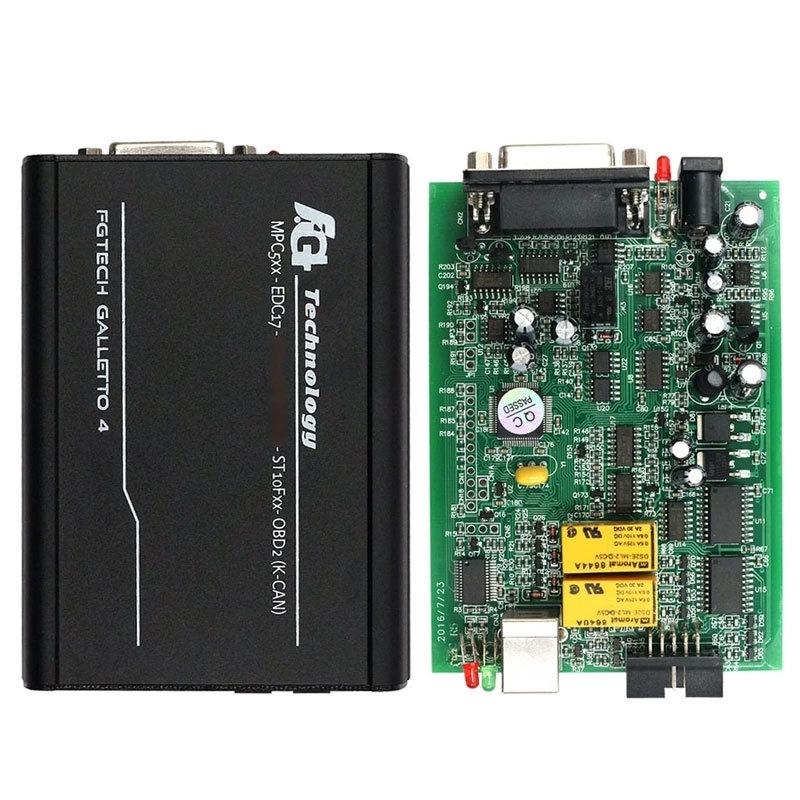

4. FGTECH V54 PCB Board
5. Supported Language: English, Italian, German, French, Spanish, Portuguese, Czech, Turkish
6. Support Tricore Function


FG Tech Galletto 4-Master v54 Description:

fgtech galletto 4-Master this new system developed with high-speed USB2 technology is the fastest and most secure product on the market, it is easy to install and use by anyone. Our system comes furnished complete with all Car, Truck, Motorbyke, Marine, BDM MPCxx , BDM Boot Mode Tricore, checksum.


Boot Mode System TriCore:

Infineon Tricore Sak TC1766
Infineon Tricore Sak TC1767
Infineon Tricore Sak TC1792
Infineon Tricore Sak TC1796
Infineon Tricore Sak TC1797

NEW JTAG - BDM - MOTO-ROLA - FRE-ESCALE - INFIN-EON
Freescale MPC 5553/5554/5565/5566 NEXSUS PORT New IAW MJD 8F2 - Mair 8G-MF
New Delphy DCM3.5xx DCM3.7xx TRW
Moto-la Freescale MPC 555/556/561/562/563/564/565
Mo-rola MC 68332 - MC YQQCU - MC 68377 Trionic 5/7/8 G-M-OPEL-SAAB
Mo-rola MC 68376 Campi 01 Lam-borghini - Lotus
Morola MC 68336 MEMS D5 ROVER
Mo-tola ZC 439615 - ZC 439507 IAW FI-AT - VAG
New Line OBD protocols VPM G-M - Hum-mer-Corvette-Munstang-Blazer-Cadilac
New Line OBD protocols Tx-Rx - Su-baru - Mitsu-bischi - Hita-chi - Denso ecu
All EDC17 MED17 is good always modify with Boot Mode tricore.


Automatic Checksum:

 All old protocols included from Bo-sch MExx / EDCxx / Marelli / Siemens / Delpy / Lucas / Denso
Boot Mode C167x / ST10, Boot Mode Infineon Tricore With password Bos-ch , Siemens
Moola MC68332 - MCYQQCU - MC68377 , MC68376 , MC68336, ZC439615 ,ZC439507
Morola Freescale MPC 555/556/561/562/563/564/565
Freescale MPC 5553/5554/5565/5566
BDM Tricore.

5-30V Car / Industrial Vehicles, L line / K line KWP, CAN
Can Bus V2.0 50Kb > 1000Kb
J1850 VPW PWM G-M -FO-RD
Rx Tx RS232,
RS 485,
Automatic setup Pull up K-L line 250, 500, 1000 ohm,
Automatic setup termination Can bus 0, 60,120 ohm.


FGTech Galletto 4 Master Version:

Recovery Mode Completa
Funzione scan tool per eliminare i DTC
Function scan tool for erase the DTC
Controllo tensione di batteria auto in tempo reale
Check tension of battery car in real time

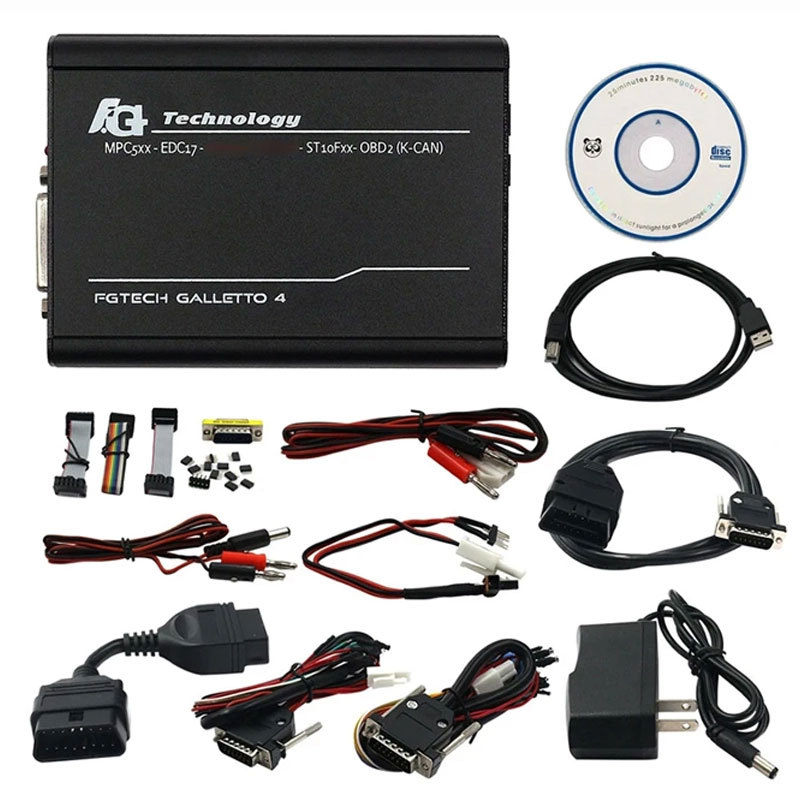

Package including:

1pc x New version main interface
1pc x ECU cable for TriCore boot
1pc x Adapter for BDM to CMD with bdm cables
3pcs x BDM adapters
6pcs x  BDM connectors
2pcs x Power cable
1pc x  OBD2 cable
1pc x  USB cable (1.5meter)
1pc x  CD (2012 version SW -MASTER, documents pdf, pictures, etc.)


FGTECH Success and Fail List:

EDC16u34 (VAG) Read/Write ok (OBD)
EDC16U1 (VAG) Read/Write ok (OBD)
MED9.1 (VAG) Read/Write ok (ODB)
Trionic8 (saab 9-3) READ/WRITE OK (OBD)
EDC16P (VAG) Read/Write ok (OBD)
EDC15V (VAG) Read/Write ok (OBD)
EDC17CP14 03L906022G Read/Write ok (OBD and boot mode)
Ford
EECV 1.8tddi read/write ok

VAG
AUDI ME 7.1.1 3.0 v6 read ok – awaiting flash

fiat multijet
mjd 6f3 diesel read/write all ok

renualt megane
siemens s3000 read hitachi mcu/write ok

EDC15C13 (Renault) Read/Write ok (K-line on bench and boot mode)

DDCR (Nissan Almera 1.5DCI) OBD read/write OK

Mercedes w211 2.2 cdi edc16c3 obd, ecu data ok read/write fail! Bdm read ok

opel
edc16c39 obd r/w ok
edc16c39 bdm r/w ok
edc16c9 bdm r/w ok
astra J 2009 denso galletto jtag NOT ok (but ktag r/w same ecu ok with jtag)

mitsubishi grandis
edc16u31 obd r/w ok

renault megane /laguna
sagem3000 obd r/w ok

bm-w 3/5/7 series
edc16c31/35 obd r/w ok
edc17 in boot mode ok

psa
edc16c34 obd r/w ok
dcm 3.4 obd r/w ok

ford
edc16c34 and delphi ECUs obd r/w ok

vag
edc15 / my galletto can not read program shout down (I use kess)
edc16 obd r/w generally ok
edc17 in boot mode ok

volvo
edc17 boot mode ok

Audi S3 Med9.1 r/w (OBD) ok
Mercedes GLK Delphi CRD2 r/w (OBD) ok
Peugeot 207 EDC16C34 r/w (OBD) ok

Merc w212 crd 3.7 obd. OK
BM-W E87 116D 2.0 EDC17C06 Bootmode r/w ok
BM-W E83 3.0d ODB r/w ok
ME 7.5 (VW 1.8T AWT) Read ok / Write ok (OBD)
Merc Viano EDC16 C2. OBD. Ok
VW Golf5 1.4 TSi
ecu MED17.5.1 Boot mode r/w ok
I test clone work ok
sirius32N,EMS3132,EMS3134 in boot-mode read/write OK.
Mazda 5 2.0D 2005 Denso RF7K read/write OBD ok
Mazda 6 2.0D 2006 Denso RF8J read/write OBD ok

Peugeot 308 1.6 HDI 2013 Siemens SID807 EVO read/write BOOT ok

BM-W X6 3.0D 2012 and 2013 (306 and 245hp)BOSCH EDC17CP45 read/write BOOT ok

Mistubichi Pajero 3.2DID 2013 Denso 4M41 and 4D56 read/write JTAG RENESAS ok
Mercedes W203 320CDI EDC16cp31 r/w ok (OBD)

Audi q7 3.0TDI – ok
BM-W e46 2.0D 150km EDC16c31- ok
BM-W E90 2.0D 163km EDC16c35- ok
Chevrolet Captiva 2.0D 150km – ok
Renault Trafic 2.5D EDC15 – ok
Mercedes B180CDI EDC15c32 – ok
Mercedes B200CDI – ok
VW Golf4 102km – edc15 – ok
Skoda Octavia 1,9TDI 105km EDC16 – ok
Citroen Jumpy 2.0D Simens 802A – ok
Ford Focus 2.0D 136 PSA Simens 802 – ok
Mini One 1.6 90km – ok

BDM
Mercedes B180&B200 CDI – ok
Q7 3.0tdi – ok
BM-W one – ok
Landrover /jaguar EDC17CP11 read out in boot mode ok

BM-W 330d EDC15C4 read ok/write ok via OBD
Mercedes vito 111 EDC16C31 read ok/write ok via OBD
Mercedes vito 120 EDC16C31 read ok/write ok via OBD
bm-w e90 edc 17cp reading ok write fail. boot mode ok!
vag edc17cp14 read/write in boot mode ok, read in OBD ok
vag pcr2.1 read/write OBD ok, PCR2.1 unlock via bootmode ok
vag edc16cp34 obd read/write ok
fiat/iveco edc16c39 obd read/write ok
edc16u31/34 obd read/write ok, BDM read/write ok
Mercedes Vito 2.2CDI 2012 Delphi CRD2.x (OBD) read / write ok

Siemens BM-W MSS54 BDM R/W OK OBD not tested (will probably work)
Siemens BM-W MSS54HP BDM R/W OK only with AMD Chip/Not ST EEPROM, WILL NOT READ PROPERLY/WRITE
If you change ST chips to another EEPROM works fine wit HP unit

OBD
ALFA ROMEO
· edc15c7
· ME 7.3.1
· edc16c39
· edc16c39 read time 40 MINUT!
· id Alfa 147 immo off (k line /boot mode)

BM-W
· edc16c31 obd
· BM-W X5 2007 3.0TDI
· EDC16 OBD
· BM-W 525 (E39)
· BM-W 320D E46
· bm-w e90

FIAT
· Grande Punto read 1_3 MJT 75 hp

MERCEDES
· EDC15C5
· edc5c2
· delphi CRD2

OPEL
· EDC16c9
· Opel Corsa-D CAN

PSA
· edc15c7 boot mode (ID problems)
· EDC 16C34
· EDC16c3 K line
· edc16c34

RENAULT
· Renault Delphi 2007 k-line

VAG
· edc15v
· EDC15-P
· edc15
· Golf Plus 2006 2.0TDI
· EDC16U34
· A4 2.0 tdi 2008
· Skoda octavia vrs 2005
· EDC15P K lINE
· VW crafter READ
· VW Golf5 1.9TDI
· Audi A6 V8 4.2l Petrol (over OBD fuse for dash fuse 11 or 15 , but it worked after pulling the fuse for dash and it went 100%)
· med9.1
· edc17cp14
· EDC17
· But edc17cp20, edc17cp44, etc, etc same year, have tricore protected active, and if you write in obd, ecu bloqued.

BM-W E70 3.0D EDC16 (BDM)
bm-w. edc16c35 (BDM)
Opel EDC16c9 (BDM)
iveco edc16 BDM (BDM)

Audi A6 (TRICORE BOOT)

Fgtech Galletto V54 What not work:
i have FG Tech v54, with one cannot read Subaru Impreza 2.0d, with another one read/write ok, Denso ECU.
