ECUTOOL Automotive Keyless Remote Fob PCB Circuit Testing Guide, is a traning manual to help users identify the cause quickly and accurately. That can help you learn how to resolve the common failures of automotive remote transmitters which caused by internal circuitry problems – Water damage, knocks and bumps or ageing can lead to issues with the key fob’s internal circuitry, resulting in erratic behaviour or complete failure
The repair guide contents includes
1. Pictures about PCB Circuit Power Supply Diagram & Component Circuit Test Point
2. A video about how to use the guide.
The repair guide contains car makers below:
Audi, VW, Benz, BMW, MINI, Porsche, Land Rover, Citroen, Renault, Fiat, Volvo, Ford, Lincoln, Mazda, Chrysler, Tesla, Buick, Subaru, Honda, Toyota, Lexus, Suzuki, Nissan, Mitsubishi, BYD, Chery, and some Motorcycle models...
Pls contact us to get the PDF file after complete payment.

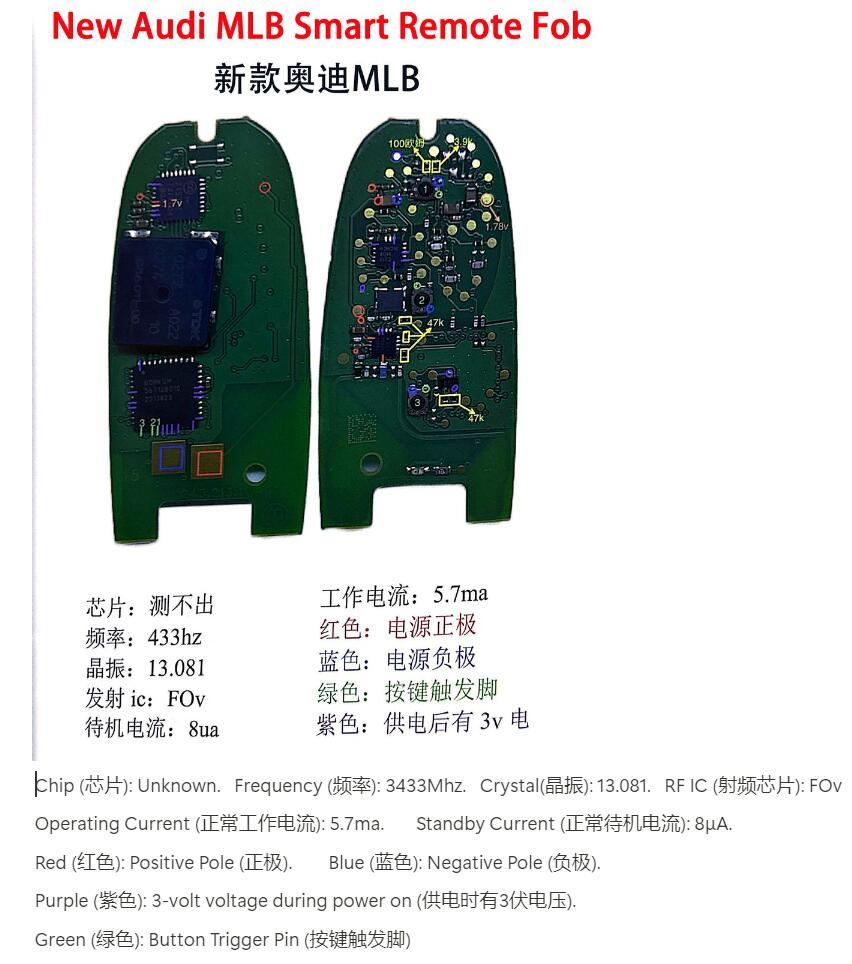

Sceenshot of ECUTOOL Car Remote Fob PCB Circuit Testing Repair Guide:
Are you tired of being stranded due to a malfunctioning car key fob?
Do you want to save money by avoiding expensive replacements from your car dealer?
Car key fobs are an essential part of our daily lives, offering convenience and security. However, like any electronic device, they can encounter issues over time.
Sometimes as well as the remote key case being worn or being dropped or any blunt damage, water damage, electrical shock, the remote circuit board takes a beating as well.
When your car key fob stops working as expected, you might wonder if it’s possible to repair it rather than replace it.
Yes. Not to worry, After learning the ECUTOOL Keyless Remote Fob Repair Tutorial, If your car key is broken or damaged, you may be able to have it repaired by yourself instead of replaced. The cost of repairing a key is typically less than replacing it entirely. However, whether or not your key can be repaired will depend on the extent of the damage.
Can key fobs be repaired?
Whether a car key fob can be repaired depends on the nature of the problem. Theoretically, all malfunctions can be repaired except for those caused by damage to the transponder chip or the main control chip.
Here are some considerations:
- Key shell & button replacement - In cases for minor damages such as worn buttons, or shell case are broken or stuck, they can sometimes be replaced.
- Dirty Key Fob—If your key fob is not working properly and is visibly dirty, you should try cleaning it before replacing it for a quick and easy repair.
- Dead Battery—If you suspect that your battery is dead on your key fob, you can simply replace the battery or have it replaced to get it working like new again. Replacing the battery is straightforward and inexpensive. You can always try changing the batteries to new ones and see if this fixes your issue. (If you know how to open up your key fob safely, then this trick is for you.)
- Car Key Fob Needs Reprogramming - Your car can become disconnected from your car keys and are no longer paired so your car key fob won’t lock or unlock your vehicle as normal. This could be because the batteries are running low, you’ve changed the batteries or just because they’ve lost their pairing.
You should be able to fix this by following your car manual to reset your car fob. However, if this doesn’t fix it, it may need a manual reprogramming which an auto Locksmith or your local dealership will be able to fix for you.
- Internal circuitry problems – Water damage, knocks and bumps or ageing can lead to issues with the key fob’s internal circuitry, resulting in erratic behaviour or complete failure. The ECUTOOL Keyless Remote Fob Repairing Tutorial is precisely what helps solve such problems
However, when certain components like the transponder chip or the MCU in a fob malfunction, you have to find professional repair by experienced providers like auto locksmiths, car repair shop...
