ECUHELP KT-MOTO Motorcycle/ Motorbike Diagnostic Scan Tool

Diagnostic function: Read system information, read data stream, read fault code, erase fault code, read Freeze data, CO idle speed adjustment, test ABS system
(Optional) Special function: such as re-setting the service light, unlocking the immobilizer and configuring the immobilizer/alarm, making injection adjustments (COTrimmer), adjusting the throttle valve position sensor(TPS),re-setting auto adaptive parameters, and making idling adjustments.

0.0 (0 Reviews)

0 Sold

$199.99

Received successfully

Coupon Code

Description

ECUHELP KT-MOTO Motorcycle Scaner Motorbike Diagnostic Tool for Diagnosing Fault Code and Faster Repair
ECUHELP KT-MOTO is the new generation Handheld Motorcyle diagnostic scan tool, it can perform virtually all major manufacturers' diagnostic functions. It helps the technician to diagnose problems and makes repairs faster;many common procedures are written into the tool so the technician can follow them (injectors, ignition, coils, fuel pump, etc.).

KT-MOTO shows live data, displays ECU data, reads stored faults(history) or live data (RPM,batteryvoltage,throttleangle).

Features:
1, Handheld operation, convenient and flexible to use
2, Support for SD cards to store data and upgrades
3, Reserved CAN bus interface
4, 3.2-inch color screen, clear display
5,Dynamic data with numerical and waveform.

Function:
1. Read system information
2. Read data stream
3. Read fault code
4. Erase fault code
5. Read Freeze data
6. CO idle speed adjustment
7. Test ABS system

Special Function:
KT-MOTO allows the technician to perform factory service procedures such as re-setting the service light, unlocking the immobilizer and configuring the immobilizer/alarm, making injection adjustments (COTrimmer), adjusting the throttle valve position sensor(TPS),re-setting auto adaptive parameters, and making idling adjustments.

For details, please refer to the KT-Moto function list in the attachment.

Support Motorcycle list:
For Hartford, Aeon, Honda, SYM, Yamaha, Suzuki, Kymco, Kawasaki, Piaggio, PGO, KTM, etc

Support Multi Languages:
English, Chinese, Thai, Indonesian, Vietnamese, Spanish, Turkish, French, Cambodian.

Specifications:
Power: DC10-15V
Operating Current: 250mA
Storage temperature: -10 C to 85 C
Operating temperature: 0 C to 70 C
Humidity: <90%
Upgrade Ports: USB port
Communication ports: COM port

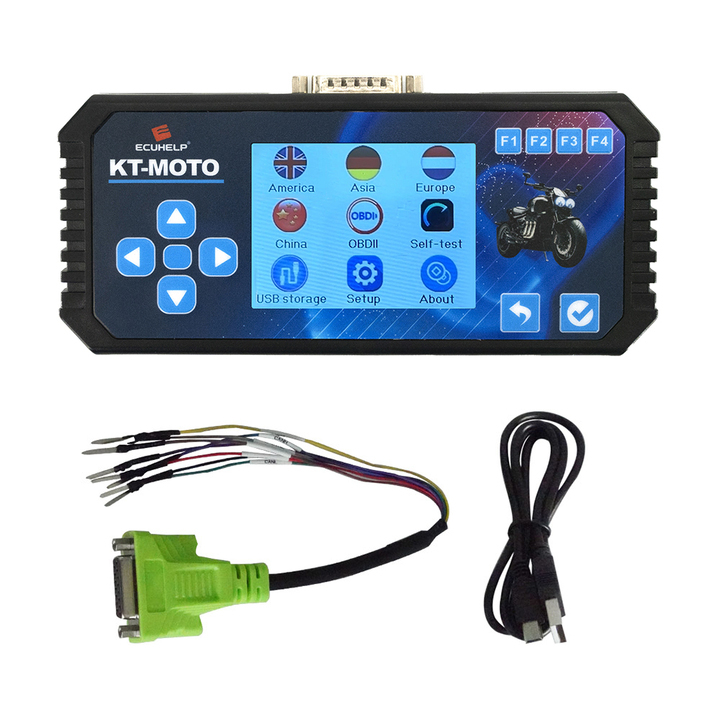

Package List:
1. 1pc x KT-MOTO Scan Tool main unit
2. 1pc x Battery Test cables
3. 1pc x USB Cable
4. 1pc x Main Test Cable
5. 1pc x OBD-16P Cable
6. 1pc x Generation IV-6P Cable
7. 1pc x User Manual
8. 1pc x Protective Case
9. 1pc x Toolbox
