DAF / Paccar VCI-560 MUX Full Diagnostic and Programming Device DAF Truck diagnostic tool VCI-560

Original Dealer DAF Truck diagnostic tool VCI-560 Communication Unit with 3 adapter cables included: 1pc OBD2 cable, 1pc 16-pin round cable for older trucks, 1pc USB cable. Software not included. Installation service not provided.
(10 available)
Shipping Cost:
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Reviews

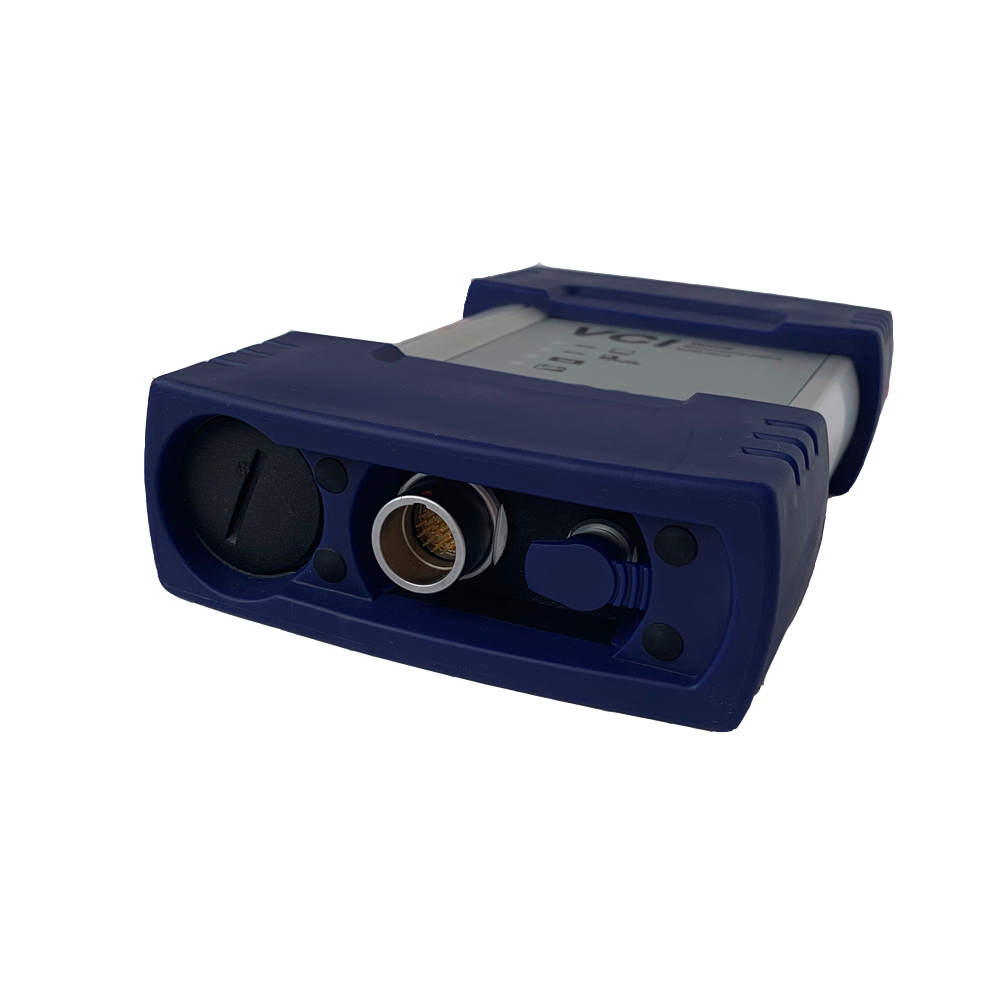

The Dealer DAF Truck diagnostic tool VCI-560 is a powerful fault diagnosis device that has been developed using the latest advanced technology. Used in combination with a PC, it provides a tool for quick and efficient analysis of vehicle faults. The Dealer DAF Truck diagnostic tool VCI-560 switches the input channel automatically to the required data line (K-line, L-line) or CAN-bus of the truck side “Diagnostic Connector”.

Software: DAF app 94 prs 19
Operating systems: Windows 7
System updates: Available
Internet connections: Available
Made in Germany

Software not included.
Installation service not provided.


With this kit you can diagnose, troubleshoot and program:

• After treatment system.
• Auxialiary system.
• Break system.
• CAB climate system.
• Communication system.
• Door control system.
• Engine system.
• Instrumentation system.
• Power supply and ground.
• Retarder system.
• Safety system.
• Security system.
• Steering control system.
• Suspension system.
• Tachograph.
• Transmission system.
• Vehicle control system.


Direct Testing mode allows immediate selection of individual control units and direct test of their components and functions.


Guided Diagnosis. Using the combination of self-diagnosis symptoms (content of fault memory) and observed symptoms (complaints from customer), the system generates a test plan and guides the user along the shortest route to the suspect component.


HD-OBD mode allows immediate selection of DAF independent control units and direct testing of their components and functions.


EOL (End Of Line) mode used in stations of the production area and allows programming, calibration, health check and diagnosing of newly produced vehicles.


You can switch between HD-OBD mode and EOL mode.


For special programming and Service Level you can use DAVIE Developer Tool.


For SCR/AdBlue removal, power increase, language programming you can use DAVIE Configurator.

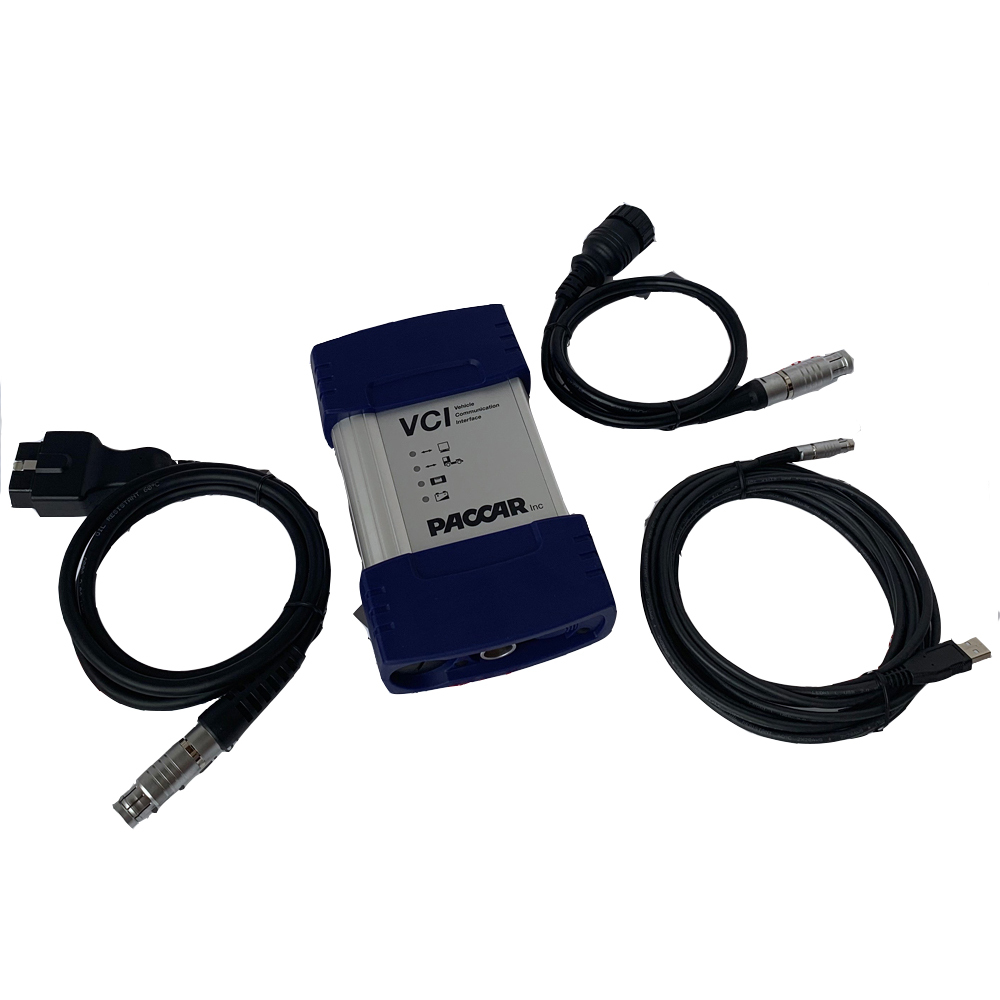

Package contains:

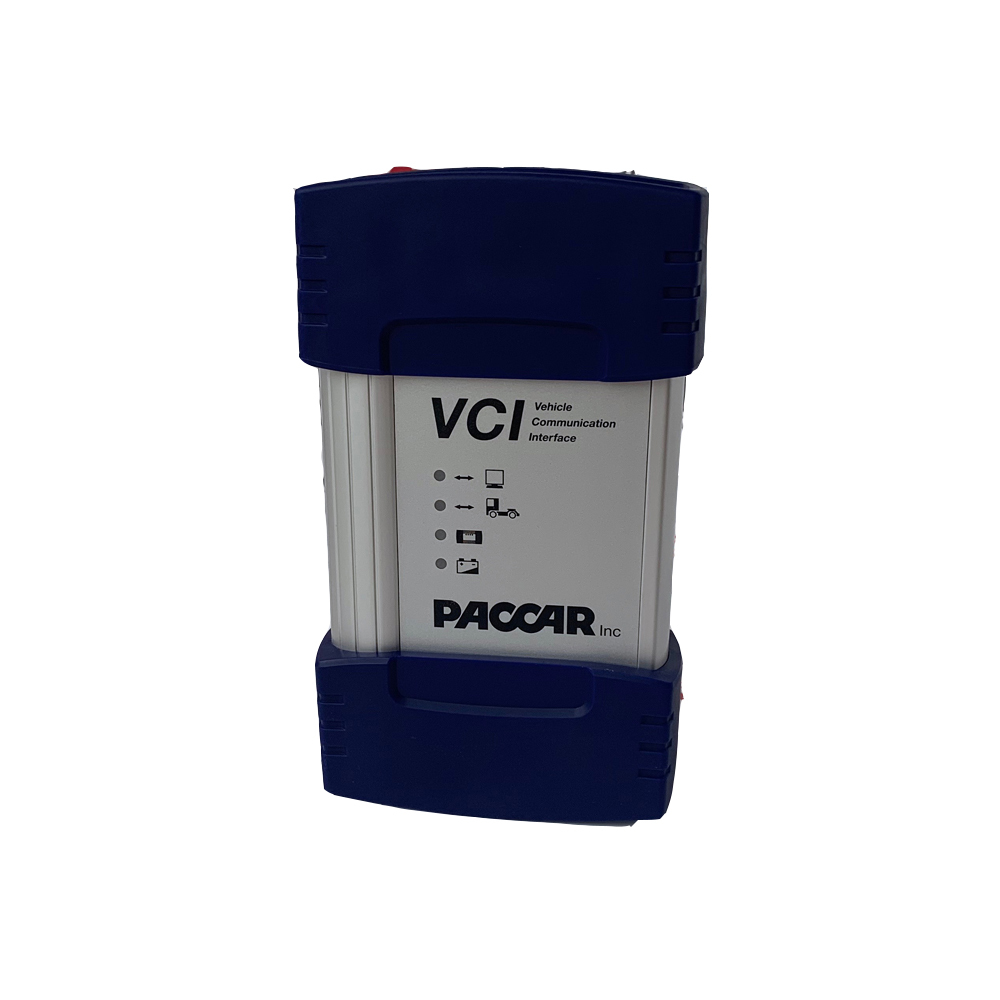

1 x DAF VCI560 device (VCI-560 MUX (WI-FI))

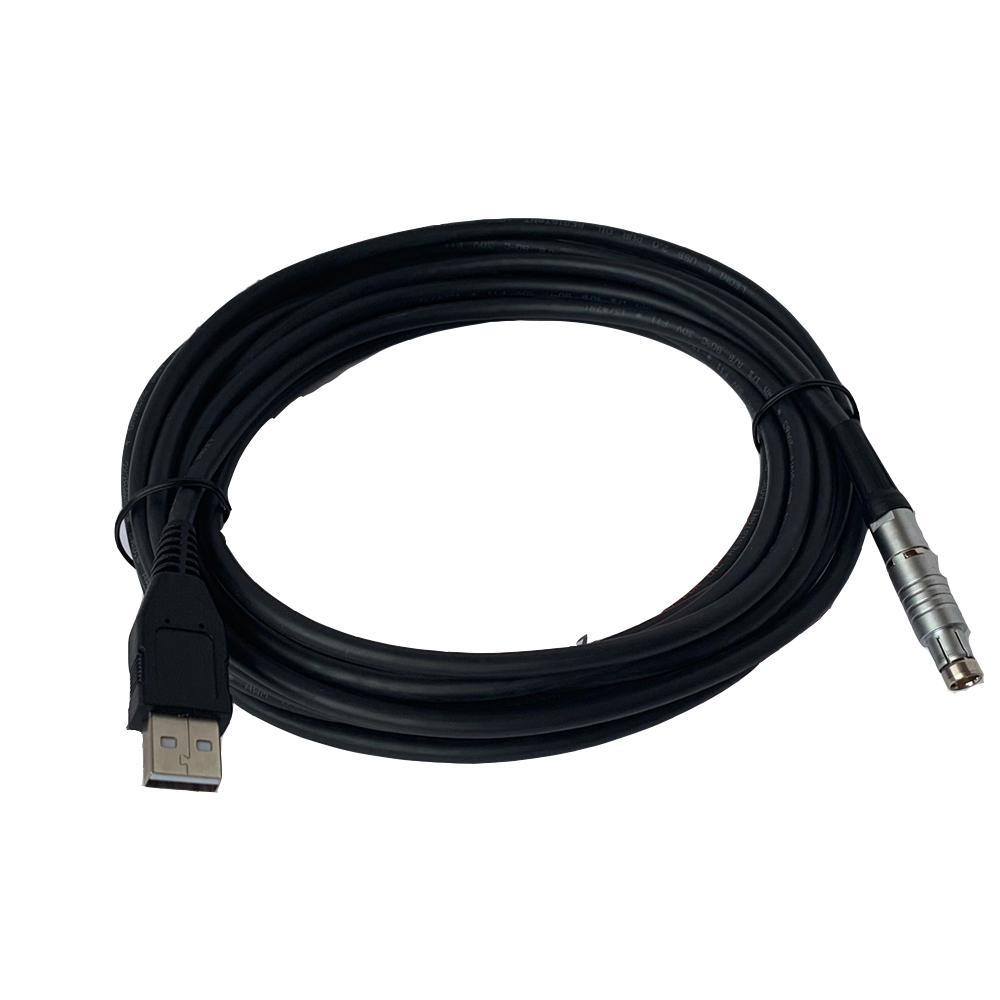

1 x USB cable

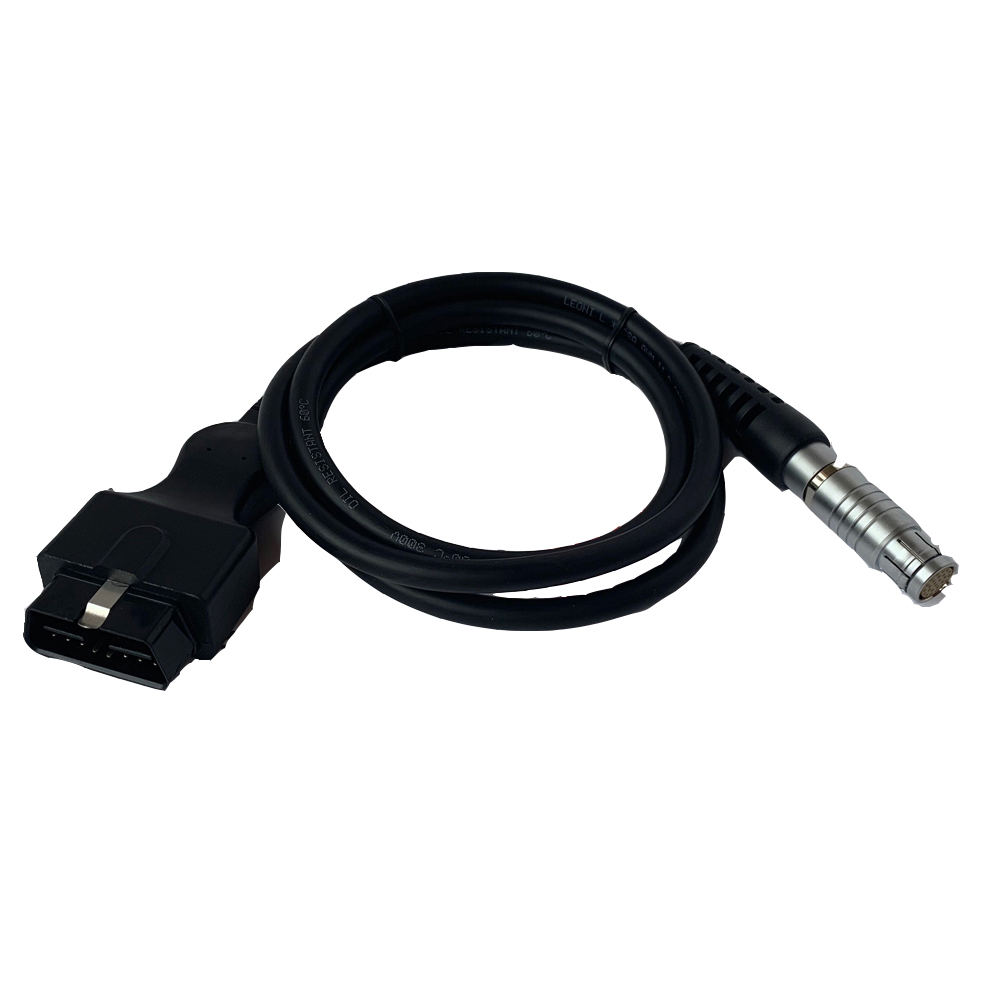

1 x Vehicle OBD2 Diagnostic cables

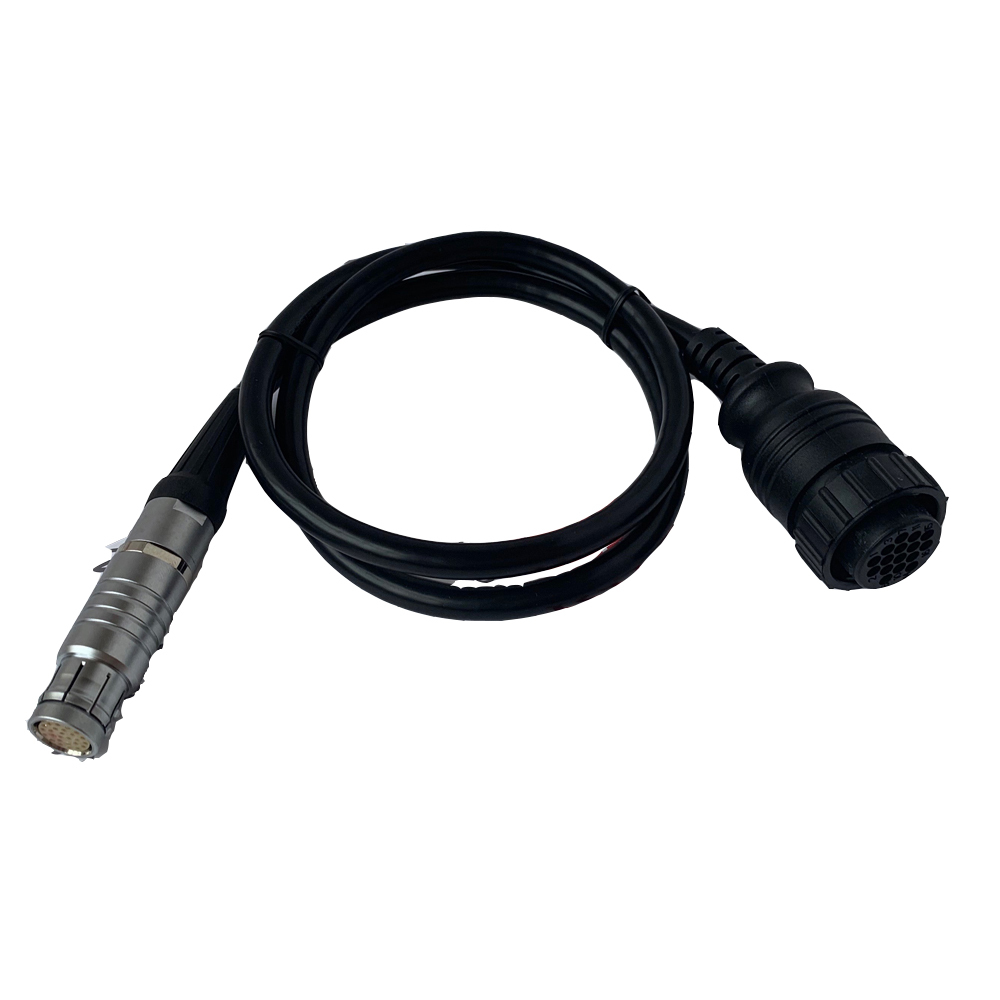

1 x 16-pin round cable (for older trucks)
