CG FC200 MPC5XX Adapter for BOSCH MPC5xx Read/Write Data on Bench Support EDC16/ ME9.0/ MED9.1/ MED9.5

Name: CG FC200 MPC5XX Adapter for BOSCH MPC5xx Read/Write Data on Bench Support EDC16/ ME9.0/ MED9.1/ MED9.5
Brand: ECUTOOL- All for Auto ECU Diagnostic, ECU Repair, ECU Programming
Price: 89.99 USD
Availability: InStock

CG MPC5XX Adapter works with FC200 ECU Programmer together. FC200-MPC5XX-P02-M230102 Adapter for BOSCH MPC5xx Read/Write Data on Bench. Support BOSCH MPC5xx platform mode ECU: MED9.1, MED9.5, MED9.5.10, ME9.0, EDC16CP31, EDC16CP35, EDC16C2, EDC16C8

0.0 (0 Reviews)

0 Sold

~~$99.00~~ $89.99

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Description:

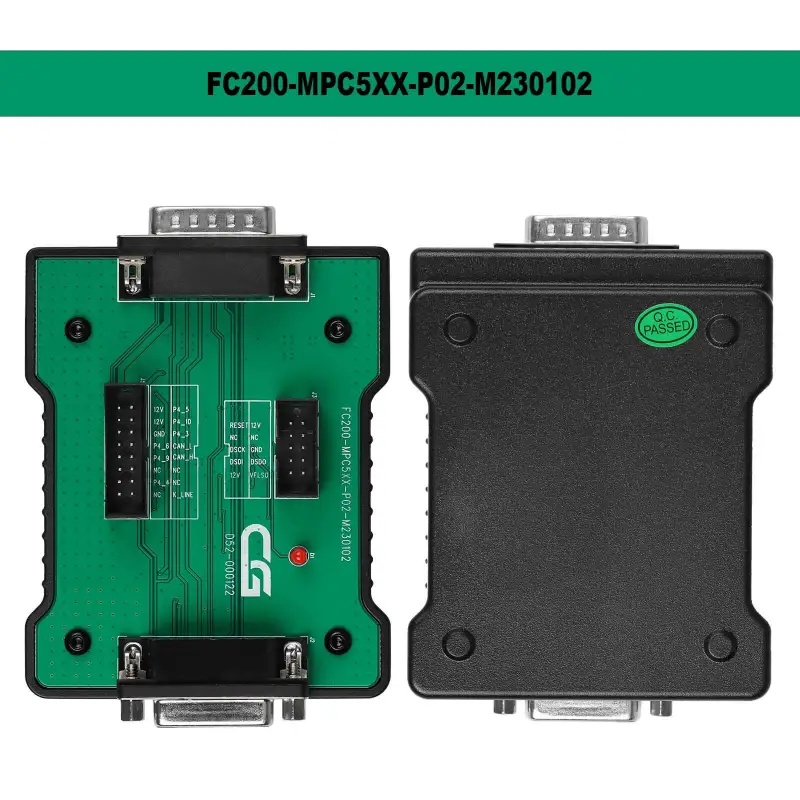

CG FC200-MPC5XX-P02-M230102 adapter can be used for MPC5X series clone without opening cover.

Product Functions:
Supported ECU Models: ME9.0, MED9.1, MED9.5.10, EDC16C2, EDC16CB, EDC16CP31, EDC16CP35. More models are being upgraded.

Product Features:
Adaptation without disassembly
Stable and safe
Function extension
Data loss prevention
Real-time monitoring
Solid connection

CG FC200 V1.1.3.0 Update Information:
1. Newly added CONNECTAL TC17 platform mode ECU: PCR2.1, SDI7, DPS6
2. Add BOSCH MPC5xx platform mode ECU: MED9.1, MED9.5, MED9.5.10, ME9.0, EDC16CP31, EDC16CP35, EDC16C2, EDC16C8, for this function, will need this extra FC200 MPC5XX Adapter
3. New Volkswagen TCU mileage repair function: DQ200 TC1766, DQ250, VL381, DL382
4. Add Hyundai/Kia/Ssangyong KEFICO CPEGD2.20. x ECU functions: platform mode data read and write, modify VIN functions
5. Add Mercedes Benz CRD2. x MPC556x engine platform mode
6. DELPHI TC17 chip ECU adds PFLASH verification function
7. ECU with PFLASH verification function added to BOSCH ST10F chip: ME7.4.5
8. GM 6T30, 6T80, 6L80 TCU added PFLASH verification function
9. Diesel ECU EDC17C53, EDC17C63, EDC17C81 and other newly added anti-theft system shutdown functions

Package Includes:
1pc x CG FC200-MPC5XX-P02-M230102 Adapter

How to Use FC200 with MPC5xx Adapter on BMW EDC16CP35

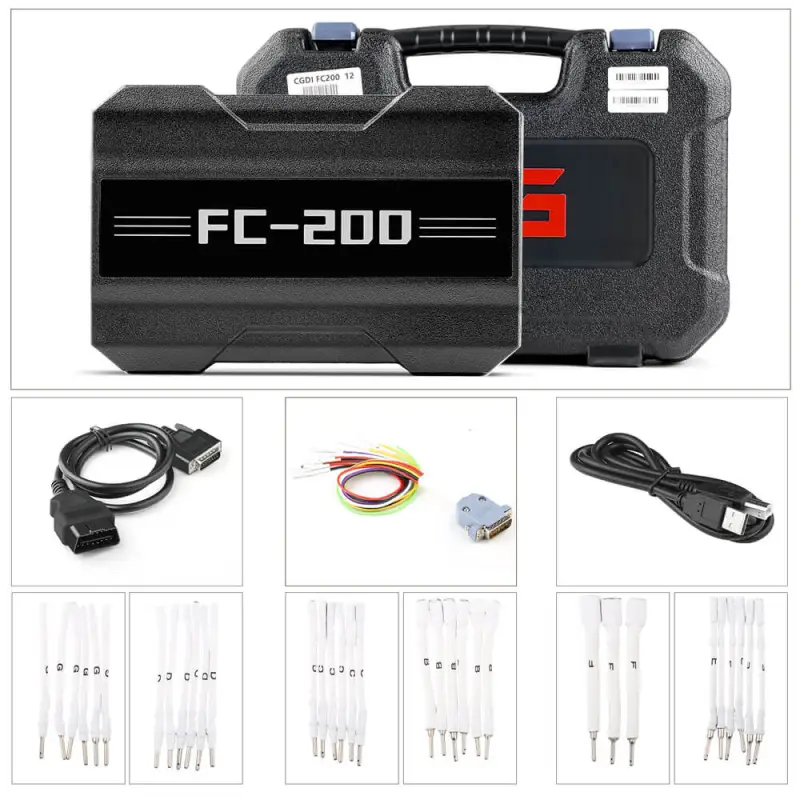

First, connect CG FC200 to one computer via the USB cable, and also connect with a power supply
Then, run FC200 software,
Select BMW>> 5-Series (E60)>> 2993 M57D3002 235>> BOSCH EDC16C35 MPC563/4>> Platform

Next, check the wiring diagram, and follow it to connect FC200 and BMW ECU.
-Connect the FC200 Vehicle-grade wiring harness to ECU
-Connect FC200 programmer and MPC5xx Adaptor, and connect to the another end of Vehicle-grade
wiring harness

After that, start to get ECU authorization and perform read/write operation.

Verify authorization successfully, and identify the chip is MPC563 4, connection succeed

Read PFLASH, ExtEEPROM, and ExtFLASH in sequence, all are ok.

Successfully save the related original data after reading
