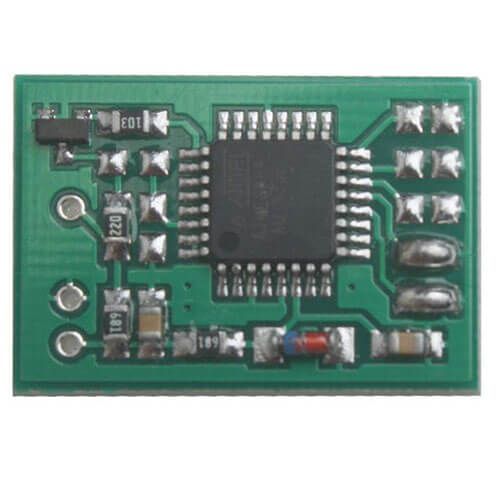

BMW Mercedes BENZ SRS Emulator Seat Sensor Occupant Emulator

BMW Mercedes BENZ Seat Sensor Occupant Emulator

• • This program can emulate B-M-W and mercedes Benz immobilizer in cases when original system restore is impossible.
  • Worked Model:
    • 1. Older B-M-W(1996-2004): E38 E39 E46 E53 E83 and similar where direct connection to AIRBAG ECU takes place. NOT working where seat modules are connected directly to K-BUS.
    • 2. Mercedes Benz (1997 2001): TRW Airbag unit A-class W168, C-class W202, Vito W638, ML etc.
    • 3. Mercedes Benz (2000 2004): A-class W168, C-class W203, CLK W209, Vaneo, E-class W210, S-class W220, Vito W639, ML W163 etc.

B-M-W Mercedes BENZ Seat Sensor Occupant Emulator Installation illustration

1. Older B-M-W (1996-2004) E38 E39 E46 E53 E83 and similar where direct connection to AIRBAG ECU takes place. NOT working where seat modules are connected directly to K-BUS.
OCCUPIED:
Jumper 2 SHORTED
Jumper 1 SHORTED

NOT OCCUPIED:
Jumper 2 SHORTED


2. Mercedes Benz (1997 2001) TRW Airbag unit A-class W168, C-class W202, Vito W638, ML etc.
OCCUPIED:
Jumper 3 SHORTED
Jumper 1 SHORTED

NOT OCCUPIED:
Jumper 3 SHORTED

Note: (W168 TRW is special)
If your car is A-class W168 TRW Airbag Type, and this operation could  not fix the problem:
OCCUPIED:
Jumper 3 SHORTED
Jumper 1 SHORTED

Please try
OCCUPIED:
Jumper 4 SHORTED
Jumper 1 SHORTED


3. Mercedes Benz (2000 2004) A-class W168, C-class W203, CLK W209, Vaneo, E-class W210, S-class W220, Vito W639, ML W163 etc.
OCCUPIED:
Jumper 4 SHORTED
Jumper 1 SHORTED

NOT OCCUPIED:
Jumper 4 SHORTED
