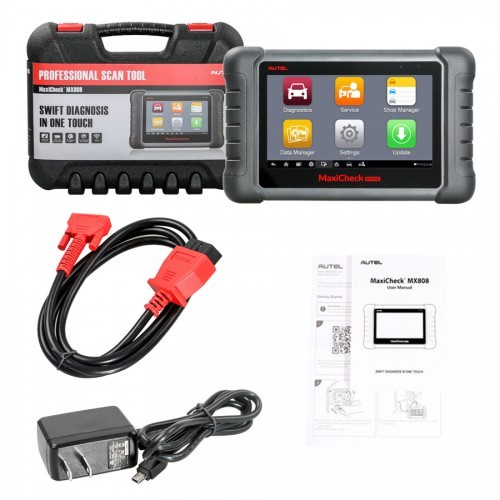

AUTEL MaxiCheck MX808 Android Tablet Diagnostic Tool Code Reader
Support Update Online Free for One Year, after one year, it will cost 150usd per year.
Language: English Only
MaxiCheck MX808 Features:
Read/clear codes for all available systems
Display live data in text, graph & analo*g for easy data review
Auto VIN technology can automatically identify the vehicle’s make, model and year information in no time
Relearn parking brake pad after replacement
Support IMMO functions
Support forced DPF regeneration and adjusting injectors
Reset Steering Angle Sensor (SAS)
Reset service mileage and service intervals
Support TPMS sensor relearn
Support battery registration and reset
MaxiCheck MX808 Specifications:
| Recommended Use |
Indoor |
| Operating System |
Android™ 4.4.4 |
| Processor |
Cortex-A9 processor (1.5 GHz) |
| Memory |
32GB |
| Display |
7-inch LCD capacitive touch screen with 1024x600 resolution |
| Connectivity |
Mini USB 2.0 • USB 2.0 • Wi-Fi • Micro SD card (supports up to 32GB) |
| Sensors |
Ambient light sensor for brightness auto changing |
| Audio Input/Output |
Input: N/A • Output: buzzer |
| Power and Battery |
3.7 V/3200 mAh lithium-polymer battery • Charges via 5 VDC power supply |
| Tested Battery Life |
Around 4.5 hours of continuous use |
| Battery Charging Input |
5 V/1.5 A |
| Power Consumption |
500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V |
| Operating Temp. |
-10 to 60°C(14 to 140°F) |
| Storage Temp. |
-20 to 70°C (-4 to 158°F) |
| Operating Humidity |
5% - 95% non-condensing |
| Dimensions (W x H x D) |
237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”) |
| Net Weight |
788 g (2.42 lb.) |
| Supported Automotive Protocols |
ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898(Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6 |
1pc x User Manual
1pc x Quick Reference Guide
1pc x Main cable
1pc x USB External Power Adapter
1pc x Carry case
1pc x Mini USB Cable
