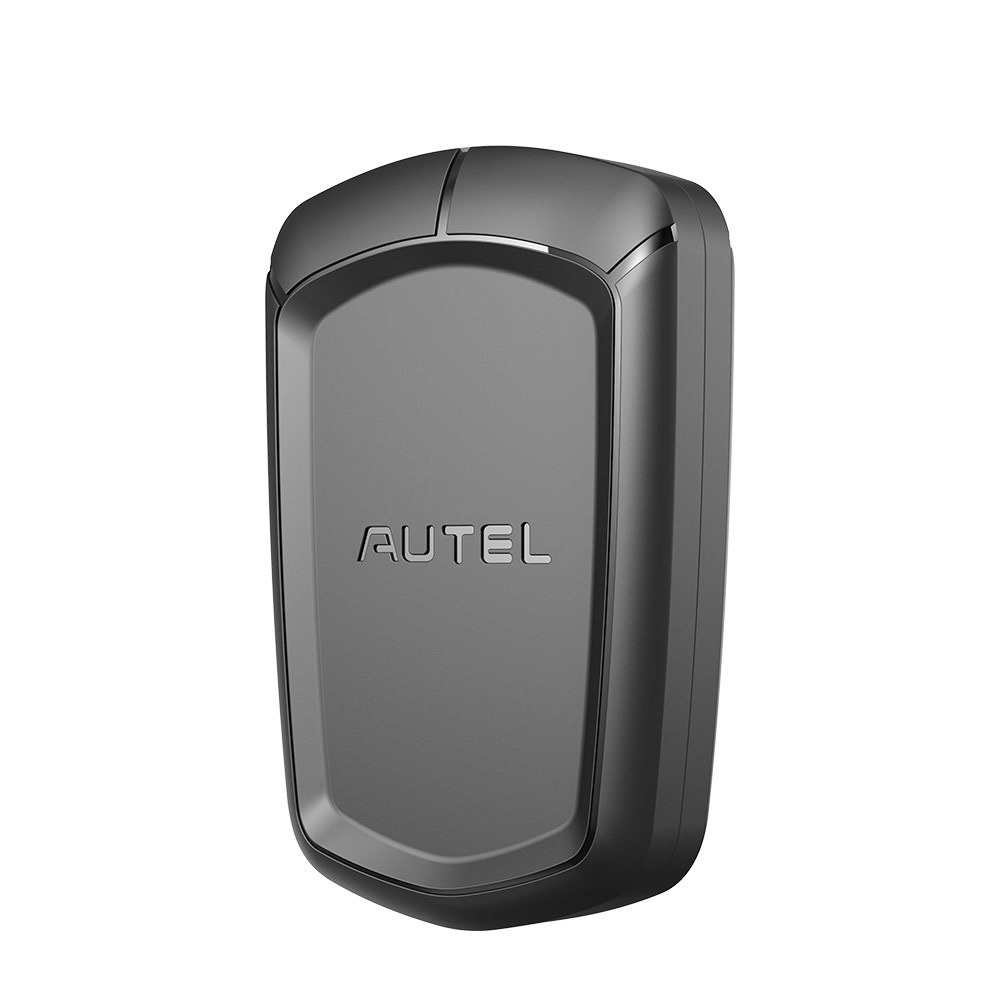

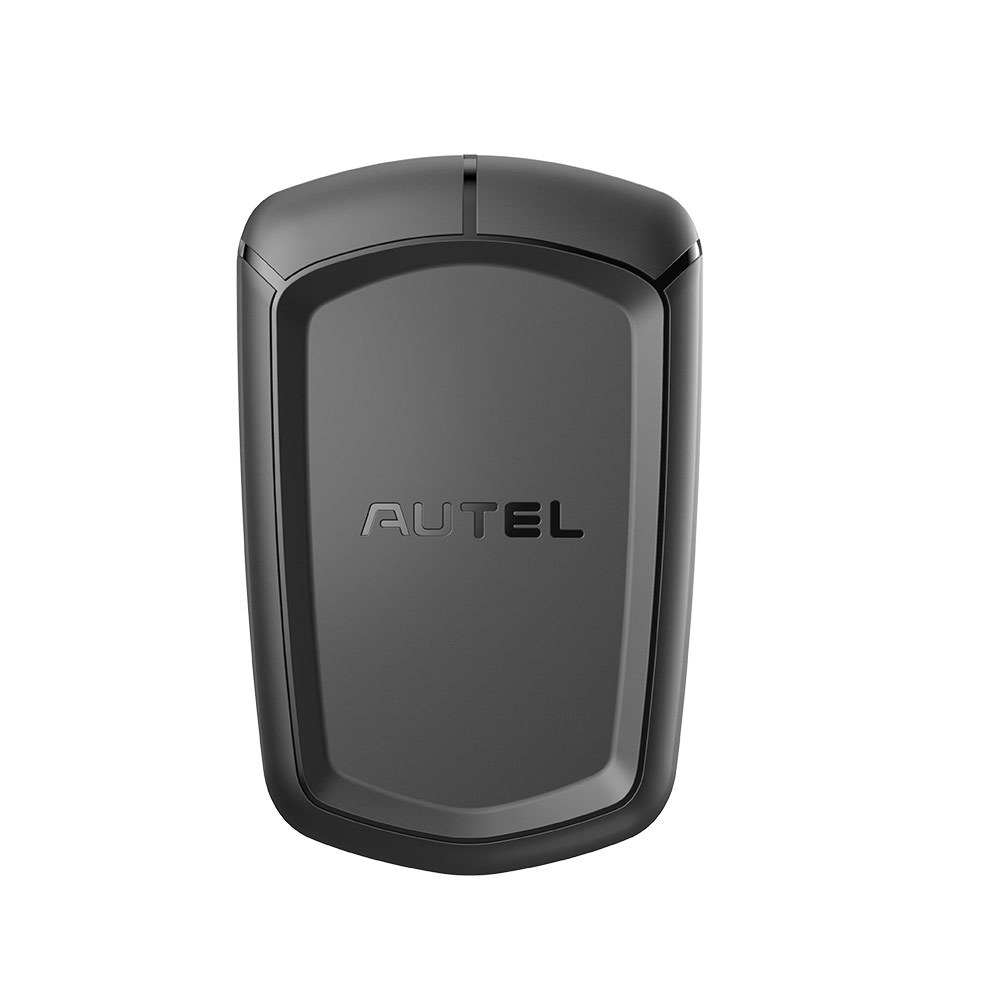

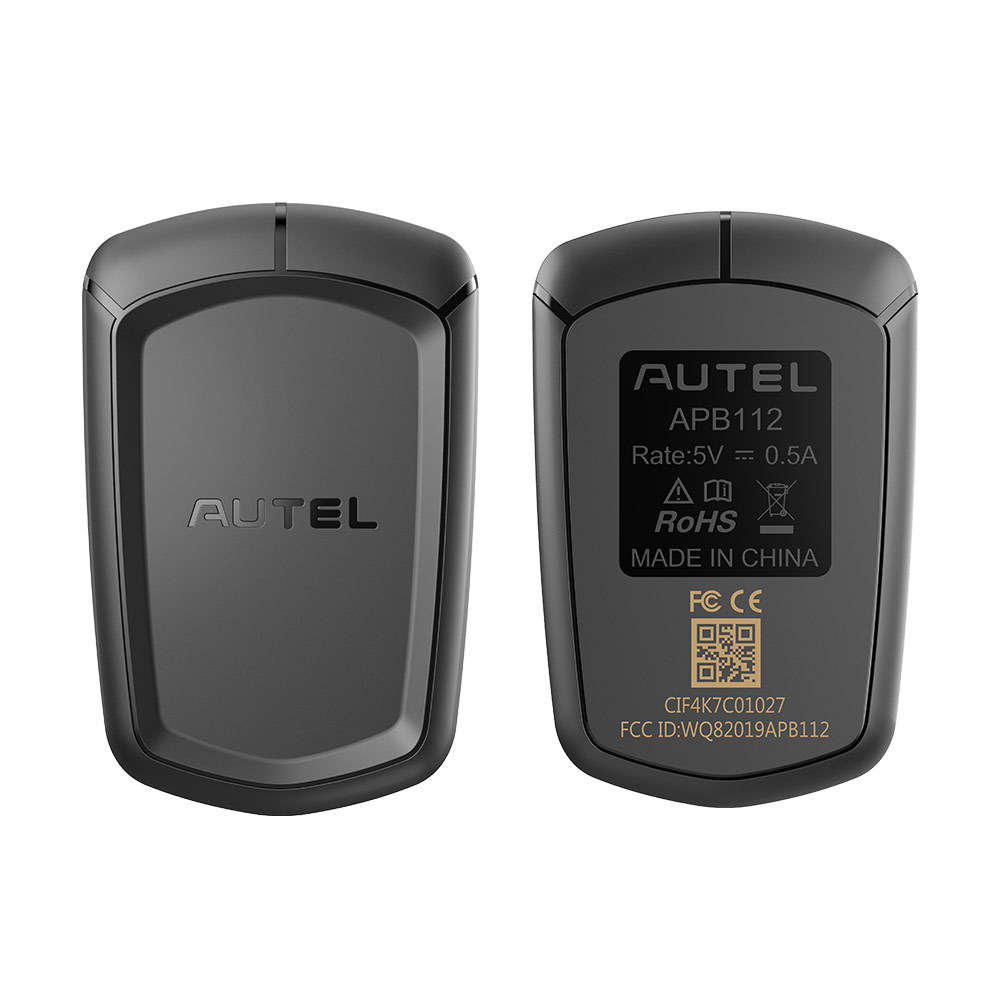

Autel APB112 Smart Key Simulator for IM508 IM508S IM608 IM608PRO IM608II

Autel APB112 smart key simulator is used to collect the data sent from the ignition coil, aiming to identify the ignition coil troubles and decode the data of the vehicle key chip.
Two packing methods available for choose: One is the simple package at cheaper price, no carton box and user guide. only Autel APB112 with main unit and usb cable inside. One is original package carton box and user guide inside. Functions are exactly the same
APB112 can not work alone, must work together with Autel MaxiIM IM608 or Autel MaxiIM IM508 series key programming devices.

0.0 (0 Reviews)

0 Sold

$129.00

Received successfully

Coupon Code

Description

Below Files for Download:
Autel Key Programming Accessories

AUTEL APB112 Smart Key Simulator Description:

Autel APB112 smart key simulator is used to collect the data sent from the ignition coil, aiming to identify the ignition coil troubles and decode the data of the vehicle key chip. It can also simulate the vehicle key chip.

AUTEL APB112 Smart Key Simulator Overviews:

AUTEL APB112 Function List:

1. Smart key simulator
2. Compatible with IM508 and IM608
3. 46, 4D data collection
4. 46 smart key password calculation
5. 46 chip simulation
6. Toyota 4D (94/ D4, 98) smart key simulation
7. Toyota H (88/ A8, A9, 39) smart key simulation
8. Collects data from the ignition coil
9. Identify ignition coil troubles
10. Decode vehicle key chip data
11. Simulate vehicle key chip (ex - 4D chip)
12. Must be used with an Autel diagnostic tool
13. Toyota/ Lexus smart key all key lost
14. Chip decoding (Hyundai 46)

How to Use Autel APB112?

Important Notice:
*Before operating or maintaining APB112, please read these instrucstions carefully, pay attention to the safety warnings and precautions.
*Not work alone, but works together with Autel MaxiIM IM608 or Autel MaxiIM IM508 series.
*Do Not Disconnect the USB Cable when use it

1. Connect the APB112 Smart Key Simulator to Autel Diagnostic Device using the supplied USB cable.
2. After connection, the status indicator lights solid blue,indicating that the APB112 Smart Key Simulator is working properly and then automatically communicates with the Diagnostic Device.
3. The APB112 Smart Key Simulator application is automatically upgraded on Autel Diagnostic Device according to the selected vehicle system function.
4. Place the Smart Key Simulator close to the ignition coil for data collection, which is used for decoding the chip.After decoding, the original car chip data can becopied.
5. The emulator key chip can generate various types ofkey chips with subsequent upgrades according to requirements.

APB112 Connection Diagram

APB112 Status Indicator

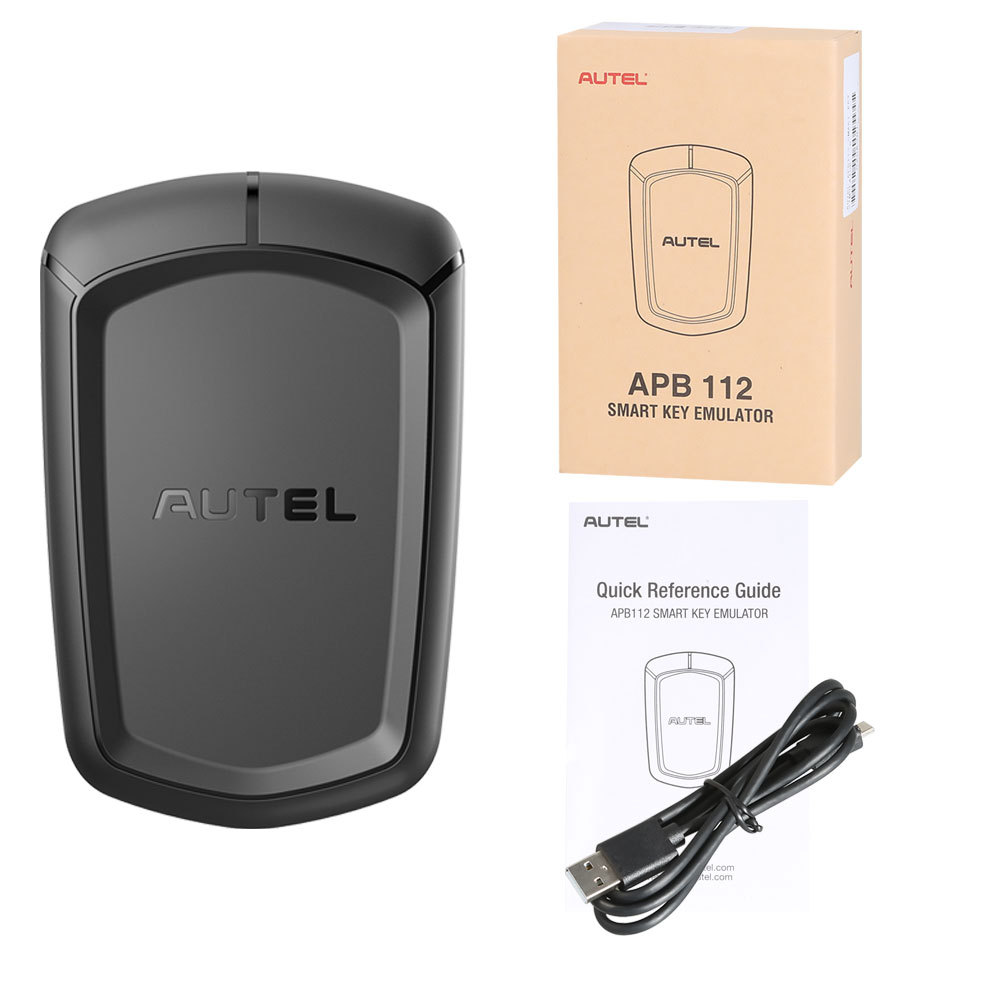

AUTEL APB112 Package List:

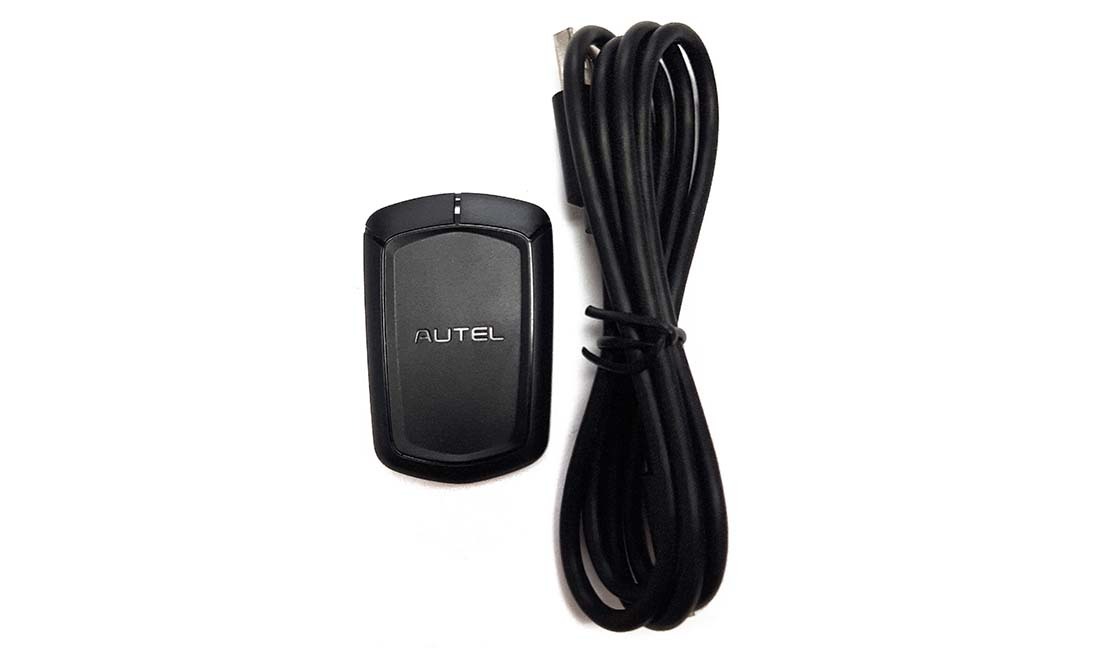

1pc x APB112 Smart Key Simulator
1pc x USB cable
