ACDP ACDP2 Module #36 for ZF-TC1782/TC275/TC277 Gearbox Clone

Attention:
All additional modules and adapters can not work alone, all acdp modules and adapters must work together with the ACDP/ACDP2 programmer (the basic module).

Notice
Mini ACDP was upgraded to ACDP-2 on July 24th 2023. Meanwhile, the old ACDP basic programmer stopped production and unavailable for selling any more.
New users can buy ACDP-2 programmer here, and old users who already have the acdp still can buy modules for your MINI ACDP

ACDP Module 36 compatiable with Mini ACDP and ACDP-2 master basic module.

#36 Module Function:

1. Support BMW 3rd generation 8HP (TC275/TC277) gearbox clone.
2. Support 2017+ JLR 3rd generation 8HP (TC275) gearbox clone.
3. Support JLR 9HP50 (TC275) gearbox clone.
4. Support JLR, Honda, JEEP, Chrysler and other 9HP48 (TC1782) gearbox clone.
5. Support Porsche 8DT/PDK2-TC400 (TC275) gearbox clone.
6. Support Mercedes-Benz VGS3-FDCT (TC275) gearbox clone

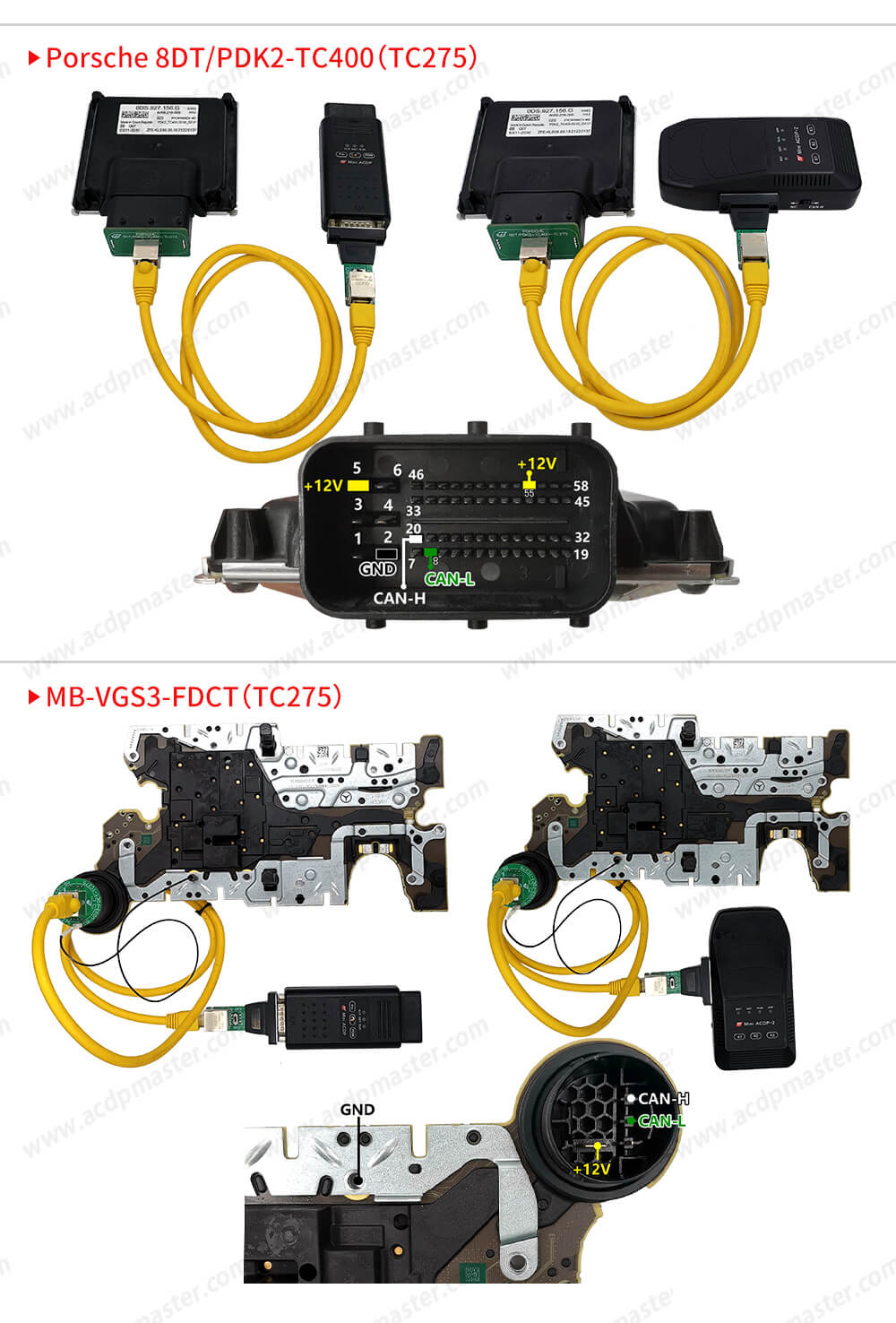

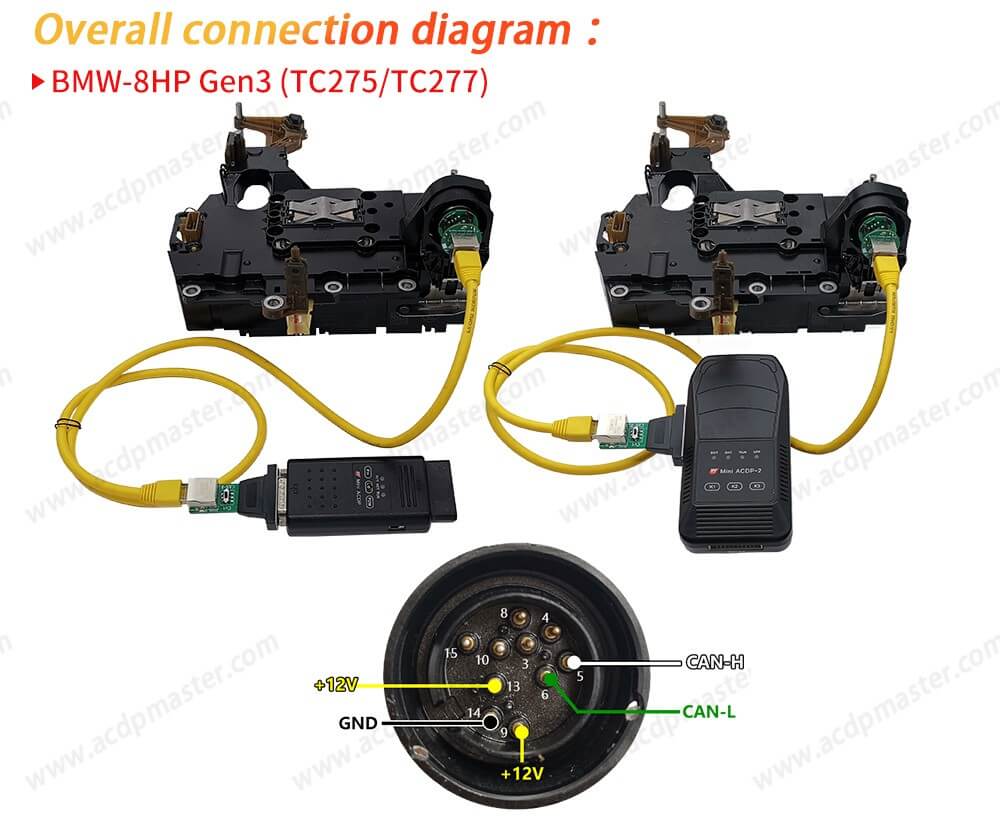

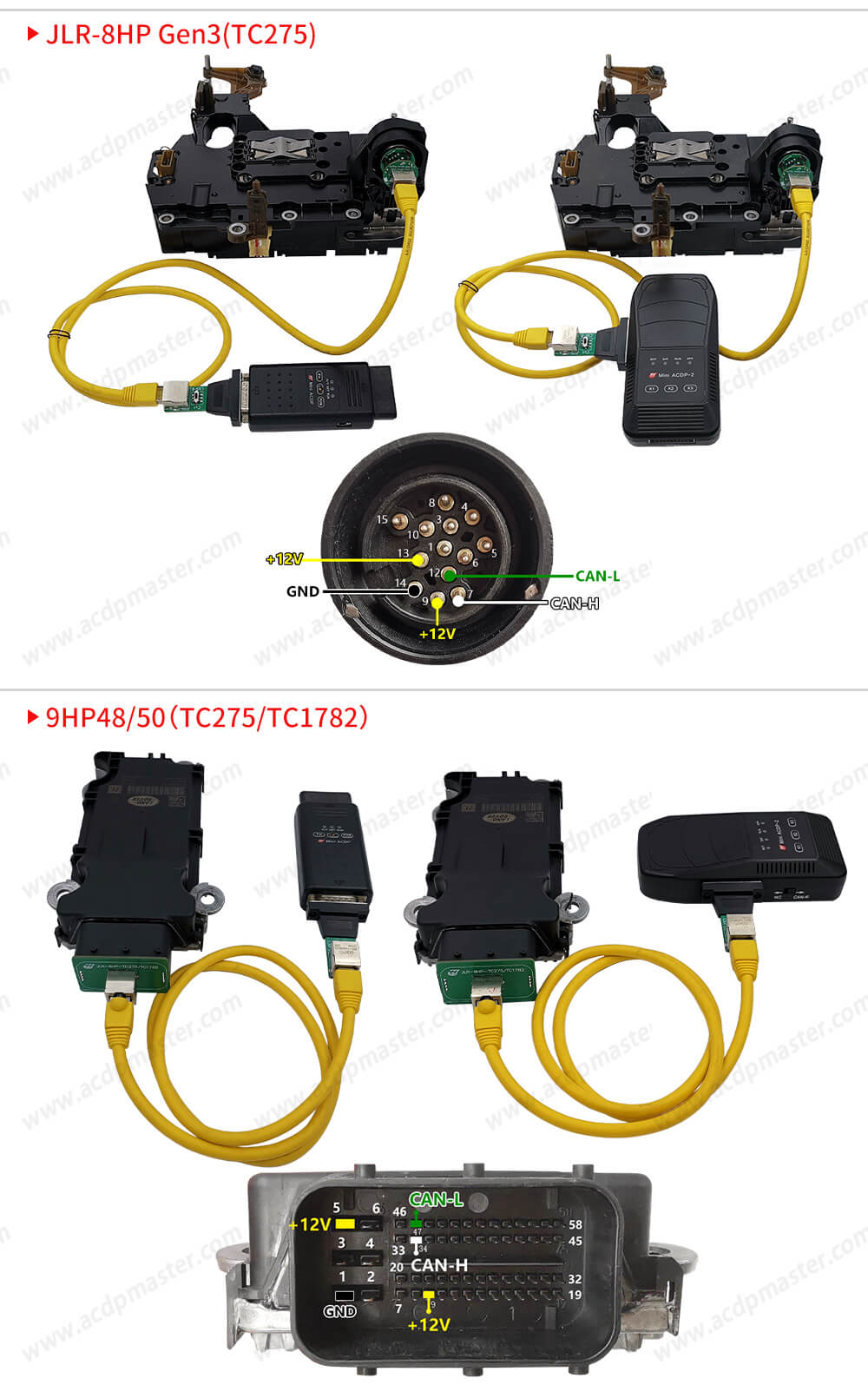

Overall connection diagram

Module features:

1: Using a quasi-blind plug-in interface board, No soldering, No need to pry up the chip pins, No capacitor removal, No soldering required to read and write data without damage.
2: The third generation PCB interface board locking technology independently developed by YanHua Tech makes the interface board locking more accurate and firm.
3: The software comes with pin detection function, making data reading and writing safer and more reliable.

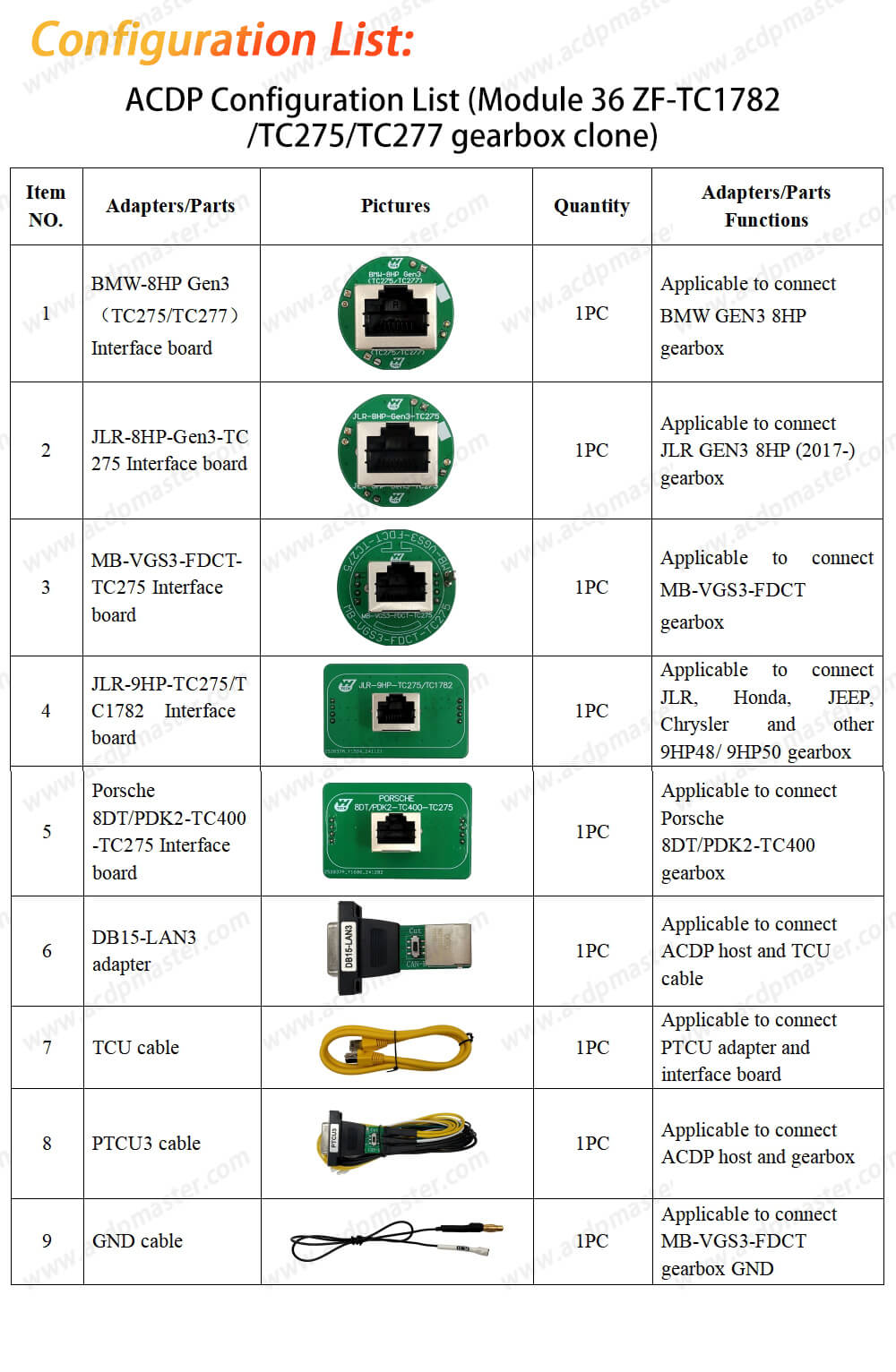

#36 Module Configuration List
