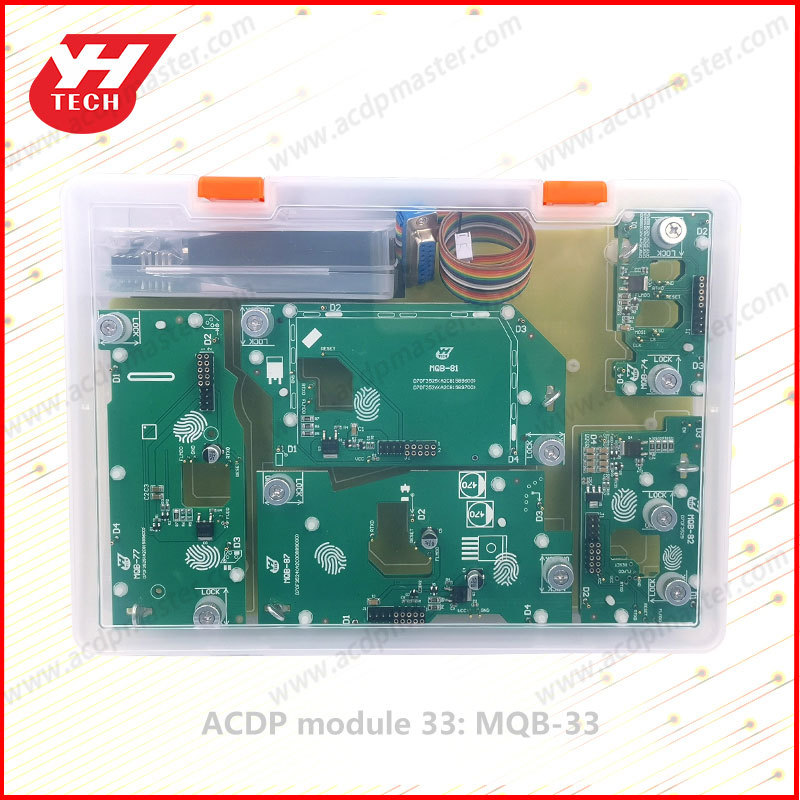

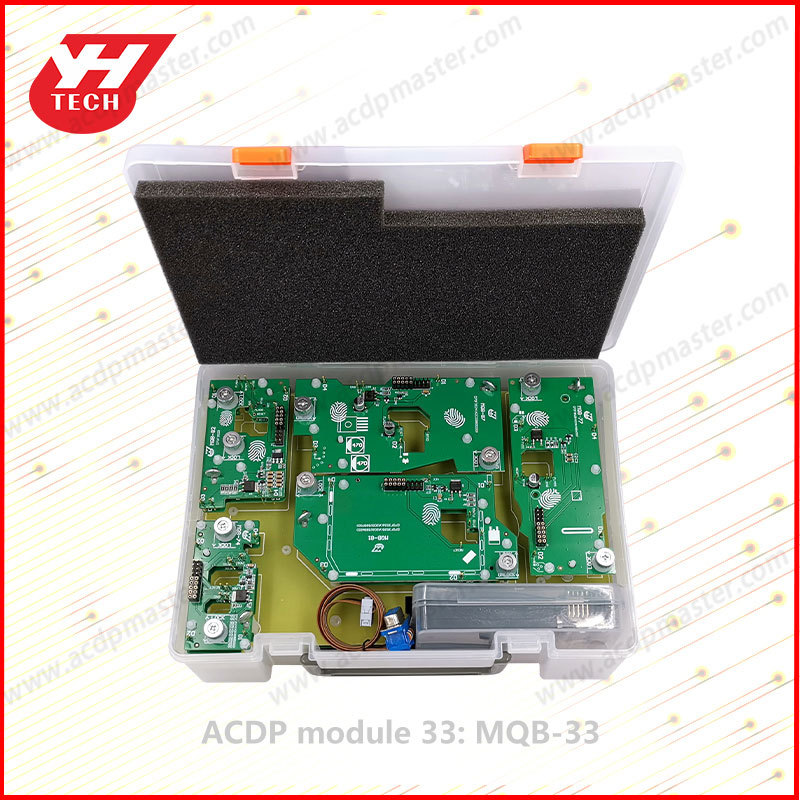

ACDP ACDP2 Module #33 MQB-33 Supports VW MQB 5A IMMO and Mileage Correction

Attention:
All additional modules and adapters can not work alone, all acdp modules and adapters must work together with the ACDP/ACDP2 programmer (the basic module).

Notice
Mini ACDP was upgraded to ACDP-2 on July 24th 2023. Meanwhile, the old ACDP basic programmer stopped production and unavailable for selling any more.
New users can buy ACDP-2 programmer here, and old users who already have the acdp still can buy modules for your MINI ACDP

ACDP Module 33 compatiable with  Mini ACDP and ACDP-2 master basic module.

#33 Module Function:

Supports VW the 4th/4.5th generation and MQB 5A etc. IMMO and mileage correction.
Supports chip models:
D70F3524(A2C00889000)
D70F3525(A2C81589600)
D70F3526(A2C81589700/A2C99606600)
D70F3529
D70F3532(A2C81589500/A2C81589501)
D70F3535(A2C81589200)
D70F3536
D70F3537(A2C81589300/A2C81589800)

Module features:

1: Using a quasi-blind plug-in interface board, no need to cut line, no need to lift pins, and data can be read and written without welding no damage.
2: The third generation PCB interface board locking technology independently developed by YanHua Tech makes the interface board locking more accurate and firm.
3: The software comes with pin detection function, making data reading and writing safer and more reliable.

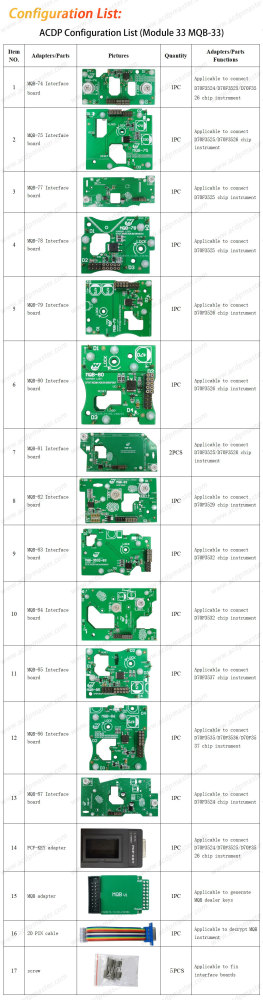

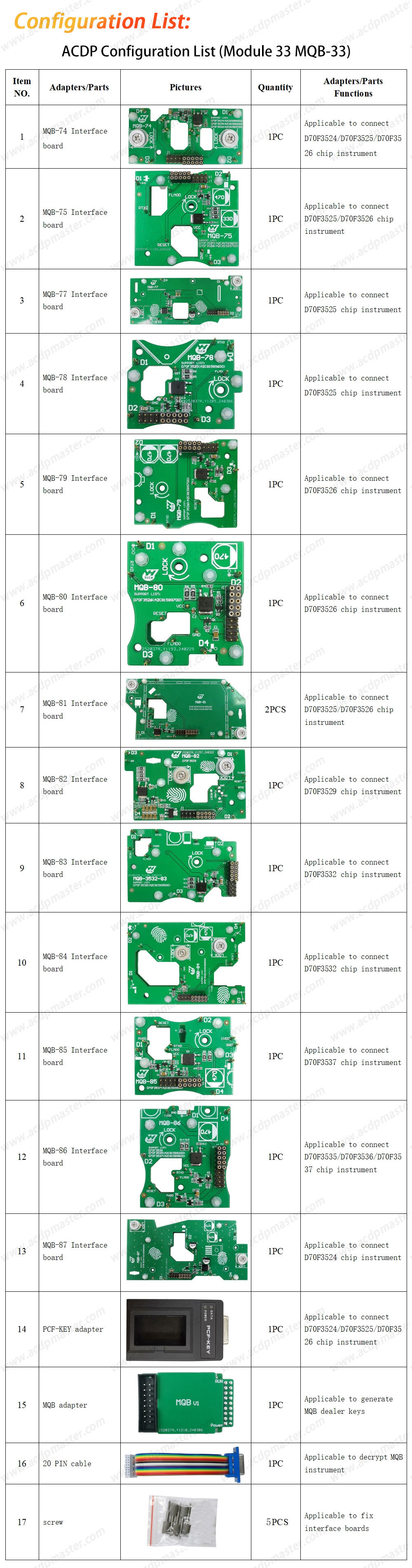

#32 Module Configuration List

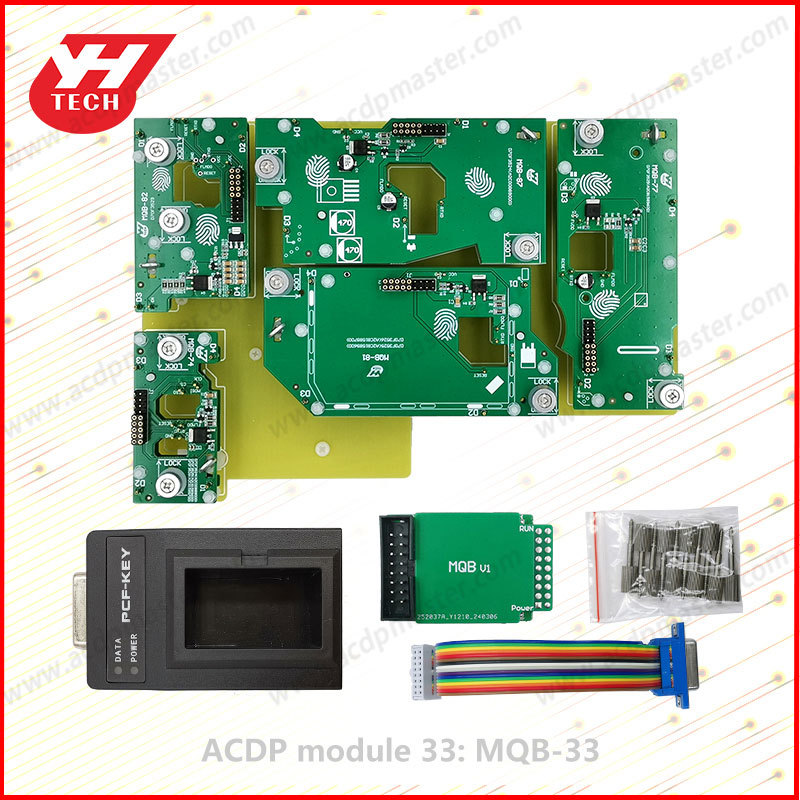

Module #33 overall connection diagrams:
