2005-2012 VW Phaeton ELV Emulator for N360 Steering Column Lock ESCL Module Repair

Name: 2005-2012 VW Phaeton ELV Emulator for N360 Steering Column Lock ESCL Module Repair
Brand: ECUTOOL- All for Auto ECU Diagnostic, ECU Repair, ECU Programming
Price: 65 USD
Availability: InStock

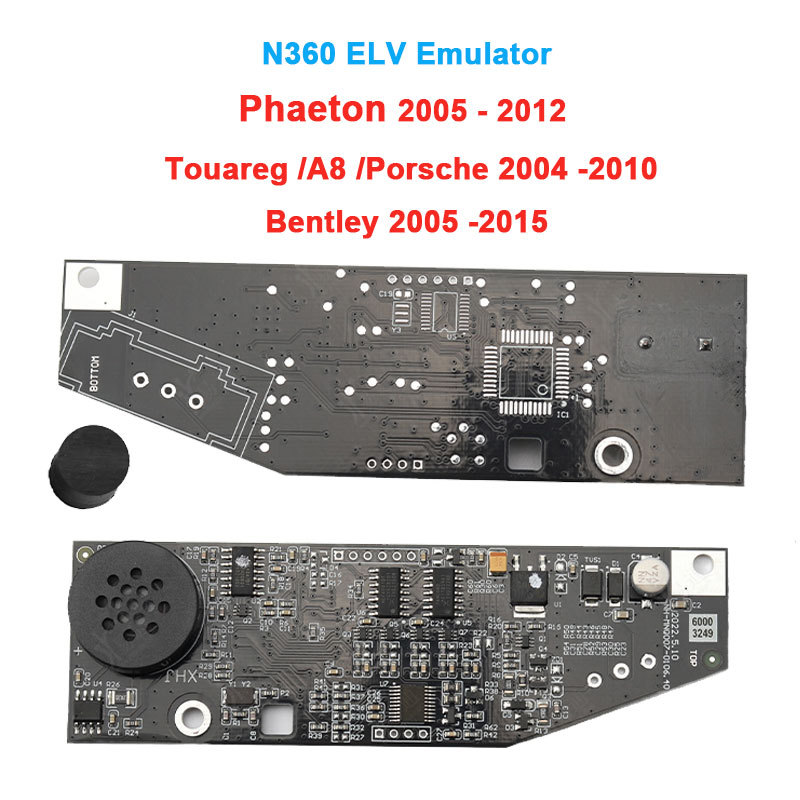

This Volkswagen ELV Simulator is for repairing N360 Steering Column Lock modules. Support car models VW Phaeton 2005-2012, Touareg/A8/Porsche 2004-2010, Bentley 2005-2015. Only need to remove the main chip from the pcb of original escl module then welding it to this new simulator

0.0 (0 Reviews)

2 Sold

$65.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

What is Steering Lock Emulator

It is designed to emulate a working steering lock. This device will fix your problem as long as you have a FAULTY ELV.

How to use this Magotan ELV Emulator?

1. Remove the main chip from the PCB of original ELV lock module, and solder the main chip to the emulator, pay attention to the welding direction

2. Fix the lock tab with the black cylinder

3. Install the emulator to original ELV module. After installing the elv to car, use a obd scanner to read the fault code first, then clear the fault code, and then start the car to see if the function is normal. If the function is normal, there will be a horn sound during the process of starting and stopping the car.

4. After testing, install the emulator in the shell of original steering column lock. the elv faulty was repaired and you get a new working steering lock now.
