PCMtuner ECU Programmer with 67 Modules Free Update Support Checksum Pinout Diagram with Free Damaos for Users

What is PCMtuner?

PCMtuner is a customized read and write device specially used for vehicle engine control system (ECU) and transmission control system (TCU). It supports OBD (bus reading and writing), on Bench read and write without opening ECU or TCU box , in BOOT (read and write with open mode). It can read and write the current most models on the market, covering European cars, Japanese cars, some American cars, Chinese cars etc, including some Volkswagen Audi gearbox, and models equipped with delphi control systems.


- Click "Here" to Download PCMtuner Offline Software No Need To Activate

- PCMtuner Support ECU List

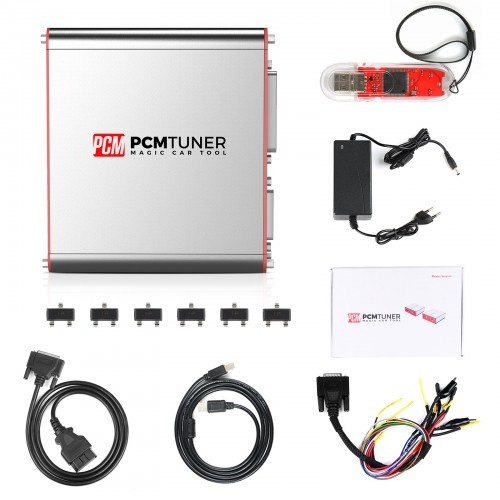

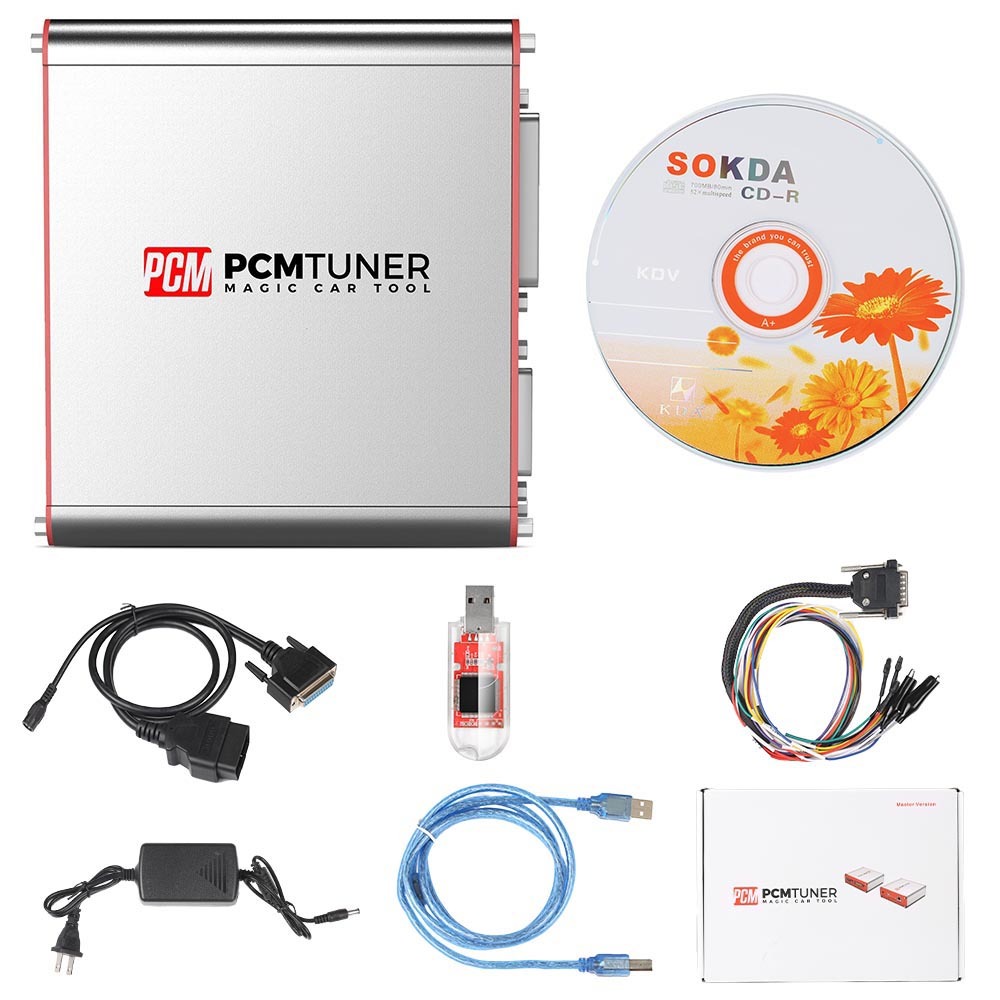

Offline Version PCMTuner Package Includes:

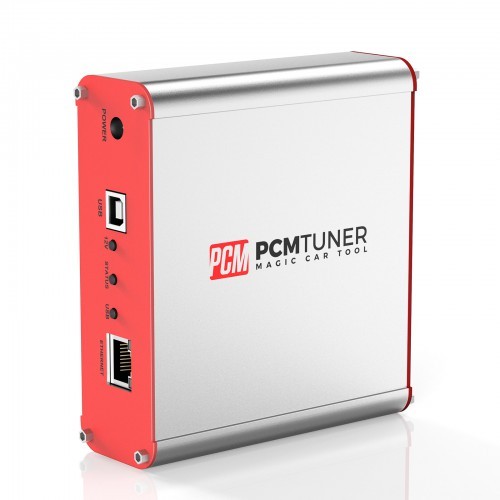

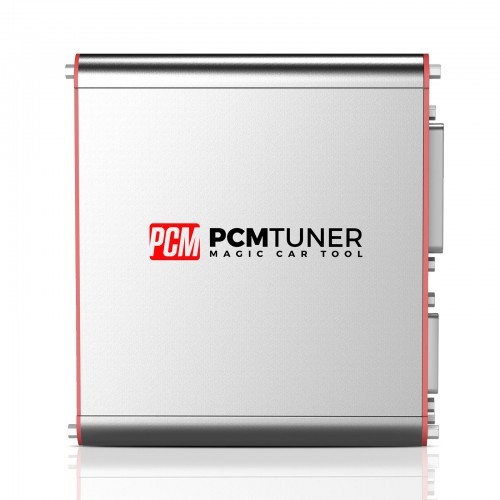

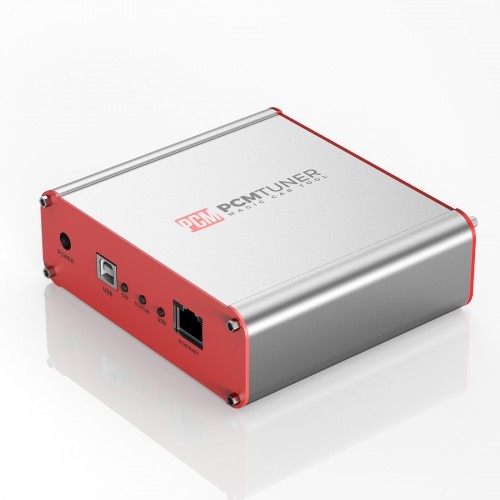

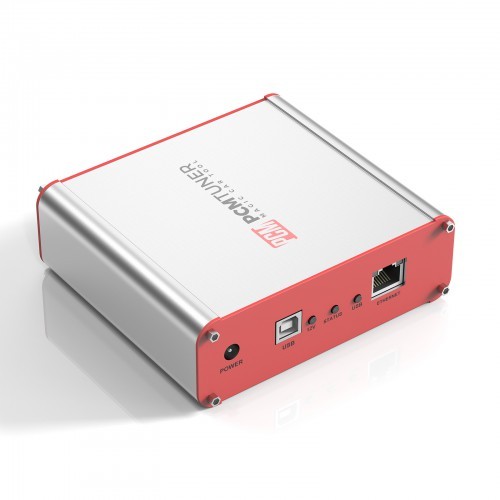

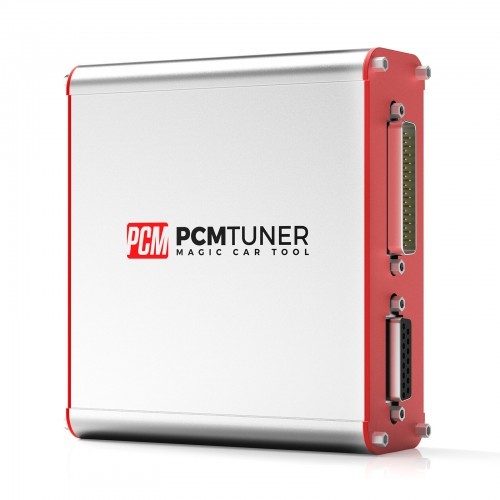

1pc x PCMtuner Master Interface

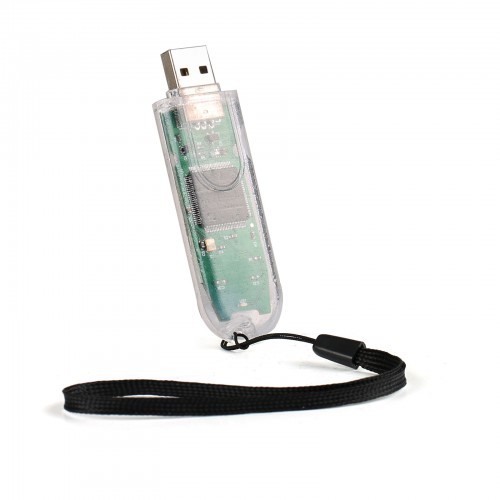

1pc x PCMtuner Dongle
1pc x BENCH / BOOT Cable
1pc x OBD Cable
1pc x Power Adapter
1pc x USB Cable
1pc x Carton Box

Onine Version PCMTuner Package Includes:

1pc x PCMtuner Master Interface
1pc x PCMtuner Dongle
1pc x BENCH/BOOT Cable
1pc x  OBD Cable
1pc x  Power Adapter
1pc x  USB Cable
1pc x Carton Box
6pcs x Repair Chip

PCMTuner Connections:

Notice: Some ECU data must be read by OBD and if these ECU can only be read by OBD are removed from the car, you can't use on bench or in boot connection to read data directly. You need OBD breakout cable to do connection.

PCMtuner ECU Programmer Offline Version Features

• No Need registration, directly run the software after installing.
• 67 Modules in 1. Newly Added 44 new protocols, Read and Write Bosch ECU without opening the shell
• Work offline. and support update free. No subscription, no annual fee. (Note: All upgrade will be told by dealer: Don't do any upgrade if you haven't received any information from us when installing all software, otherwise the hardware will be locked.)
• Read and write ECU/TCU data via OBD, on BENCH, and in BOOT modes.
• Fast read and write, with helpdesk to support the tuner.
• Performs a complete backup of ECU data, easy ECUs clones, and power upgrades.
• Save data in the bin format, the data is not encrypted.
• PCMtuner provides VR files for all legal users and Helpdesk supplies free Damaos for Tuner: Free WinOLS damaos, A2L, MAPPACKGE and VR files.
• PCMtuner software allows you to forcibly write (forcibly clone) without verification. And supports forcibly reading and writing unknown ECUs with supported chip models.
• Provide customers stage1 stage2 stage3, popbangs ,gearbox data to adjust LC, sport display, immo off, adblue off, dpf off, dtc off, vmax, swirl off, restoring ECU.
• With integrated scanmatik2: The smart dongle is compatible with the original scanmatik2 pro

PCMtuner ECU Programmer Online Version Features

●All functions of the online version are same as the offline PCMtuner
● The online version need to activate
PCMTuner Flash Software V1.2.7 Download
PCM Suite Download
PCMtuner Wiring Diagrams
PCMTuner V1.27 Update FAQs and Operation


How to Activate PCMtuner and Get VR Account?

1. Please download software and follow the Online Instruction. (Only need PCMtuner Flash V1.2.7 and PCM Suite at first.)
2. After installation, it will ask"Do you want to Register this device", please click "Yes", then follow the prompts information to register it
3. Send device ID to [email protected] to get a registration key.
What's more, PCMtuner can be used on more than one pc now, just register with a different email on the different pc, no need cancel previous activation.

We Will Generate 2 User Accounts for You:

https://support.vz-performance.com: User Name=Registered Email, Password=Software Serial Number
https://www.tuner-box.com: User Name=Registered Email, Password=Software Serial Number

vzperformance for tuner support. This account will be used for tuner support. It has VR file and many damaos there.
tuner-box account is for create ticket support tool user.

Buy PCMtuner online version from ecutool.com, will Get Free IMMO Universal, DTC Remover, IMMO OFF, ECU Safe Solutions etc with Keygen, please contact our online customer service.



Pay for PCMTuner Extend Modules (Need to buy separately) below, make it more powerful.
--MPM For American ECU TCU like GM, Chrysler, Ford
--Fetrotech Tool For MG1 MD1 ECU, BENCH Read MED9 and EDC16, MEDC17 Series ECUs

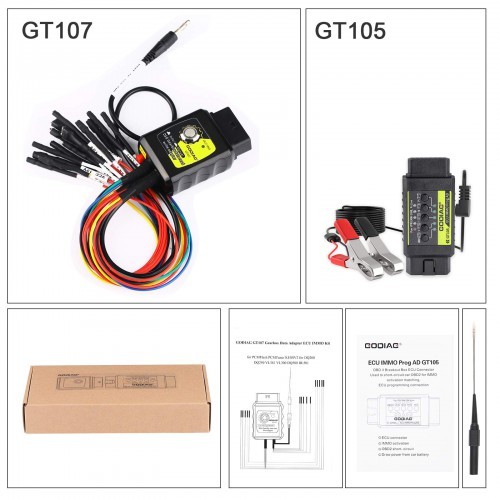

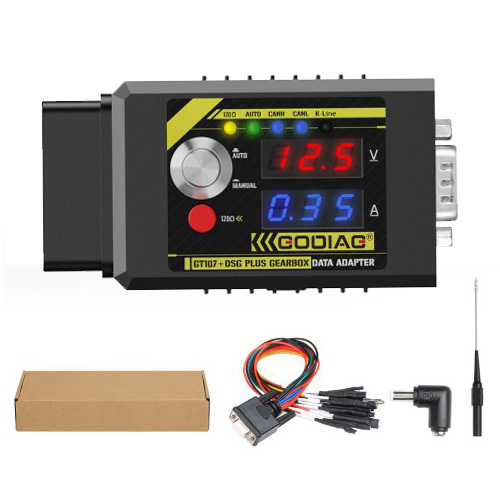

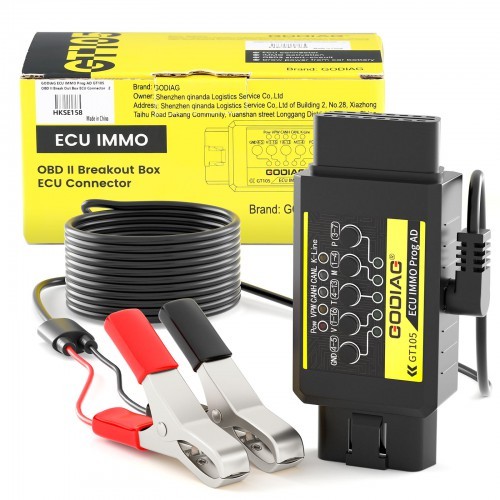

--GODIAG GT105 Plus GT107 For DSG Gearbox Data Read/Write
--GODIAG OBD Breakout Cable  via OBD on Bench

PCMtuner Functions:

PCMtuner performs a complete backup of ECU data, easy ECUs clones, and power upgrades. It can also support read and write TCU. According to the data read out via PCMtuner tool, our engineers can provide customers stage1, popbangs , gearbox data to adjust LC, sport display, immo off, adblue off, dpf off, dtc off, vmax, swirl off, restoring ECU or TCU factory setting service (paid service).
1. Read and write ECU data
2. ECU clone
3. ECU parameter adjustment
4. ECU maintenance engineering
5. Chip turing
6. Read ECU maps
7. Checksum correction
8. Stage1, TCU tuning , LC, sportdisplay , immo off, adblue off, dpf off, dtc off ,vmax ,swirl off (Paid Service)
Stage 1- Stocking Car Function
9. Read flash and ep files
10. Powertrain adjustment
11. VR files supply
12. Pinout comewith
13. Helpdesk and tuner account 15. OBD2 reading
14. Cover-free wielding-free no disassembly data reading, greatly reduce the risk of destroying the ECU, bench mode.
15. Cover-opening data reading, boot mode

Warm Notice:
● Please use the software in our default package only, otherwise PCMtuner may get locked and damaged, which we won't take responsibility in this situation.
● Strongly recommend installing PCMtuner on Windows 10 to get the best performance.
● It's a scanmatik. We have tested PCMTuner as J2534 Passthru for Techstream. You are free to test with Ford ids, Bmw ista, VW odis, etc. It is a bonus feature. We are not responsible for the damage.
●Please use the original power supply which comes with our product). Using other Power Adapter may burn the device transistor or chip.


200 Newly-added Bosch MED / EDC17 Read / Write Protocols Without Opening the Cover.
VAG Simos PCR2.1
FCA GPEC2, GPEC2A, GPEC4, GPEC4LM
Hyundai / KIA SIM2K-240, SIM2K-241, SIM2K-250, SIM2K-251, SIM2K-260, SIM2K-305, MT86
Ford / LR SID208 Flash read
Scania EMS S8 BAM. Just 3 point PCB connection into VIA holes. Can be connected without removing gel.
PSA SID208
MB SID307, SID310
Renault SID307, SID309, SID310
Porsche SDI21.x
Mitsubishi E6T83XXX, E6T32xxx
Isuzu Transtron SH72544R
Isuzu Transtron L4.3
Hino EDC7UC31
Hyundai, Greatwall DCM6.2AP

Coming Soon:
VAG Simos 18.1, 18.2
VAG Simos 18.10
FCA Marelli 8GMK / 8GML, MJ9DF, 10GF
FAL Marelli MJ8DF / 8F2, 8GMB / 8GMC / 8GMF / 8GMW / 8GSF / 8GSW
BMW MSD80, MSV80, MSD81, MSD85.0 / MSD85.4, MSD85.1 / MSD85.3, MSD87.1 / MSD87.2, MSV90

PCMtuner (Software Version: 1.24) Support 67 Modules
Module 1
Ford Focus 3
Ford Focus 3: 1.6L Sigma Ti-VCT 85 / 105/125PS (EMS2204)
Ford Focus 3: 1.6L, 2.0L PowerShift TCM (6DCT250)
Virtual reading, writing, checksum correction. VBF writing and VBF to BIN conversion is supported!
Ford Focus 3: 2.0L Duratec GDI Ti-VCT 150 / 170PS (MED17)
Ford Focus 3 ST: 2.0L Ecoboost GTDI 250PS (MED17)
Reading, writing, checksum correction.
Module 2
Ford Kuga 2, Ford Explorer 2011+
Ford Focus 3: 1.0L Ecoboost 2015+ GTDI 100 / 125PS [FV6A] (MEDG17)
Ford Kuga 2: 1.6L Ecoboost GTDI AWD 150 / 182PS (MEDG17)
Ford Mondeo 5: 1.5L Ecoboost GTDI AT 150 / 180PS (MEDG17)
Ford Mondeo 5: 2.0L Ecoboost GTDI 200PS (MEDG17)
Ford Explorer 2011-: 3.5L Ecoboost V6 GTDI 360PS (MEDG17)
Ford Kuga 2: 2.5L Duratec Ti-VCT 150 / 171PS
Ford Mondeo 5: 2.5L Duratec Ti-VCT 150 / 171PS
Ford Explorer 2011-: 3.5L Cyclone V6 Ti-VCT 294PS
Reading, writing, checksum correction

Module 3
Diesel engines 2.0L, DCM3.5 / DCM6.1 / SID206
Ford Focus 3: 2.0L DW10C STAGE 5 140 / 163PS (DCM3.5)
Ford Kuga 1: 2.0L DW10C STAGE 5 140 / 163PS (DCM3.5)
Ford Kuga 2: 2.0L DW10C STAGE 5 140 / 163PS (DCM3.5)
Ford Mondeo 4: 2.0L DW10C STAGE 5 140 / 163PS (DCM3.5)
Virtual reading, writing, checksum correction.
Ford Mondeo 4: 1.8L Lynx, 2.0L DW10C STAGE 4 (SID206)
Ford Mondeo 5: 2.0L DW10F STAGE 5/6 150 / 180PS (DCM6.1)
Ford Focus 2: 1.8L, 2.0L Duratorq Lynx / DW10C (SID202 / SID206)
Reading, writing, checksum correction.

Module 4
Petrol engines 1.25-1.6L, Ford Fiesta 2008 + , Ford Mondeo 4
Ford Fiesta: 1.25L, 1.4L Sigma Ti-VCT (EMS2102)
Ford Fiesta: 1.6L Sigma Ti-VCT (EMS2101)
Ford Mondeo 4: 1.6L Sigma Ti-VCT 110 / 125PS (EMS2101)
Reading, writing, checksum correction.
Ford Fiesta: 1.6L Sigma Ti-VCT USA [AE81] (EMS2205)
Writing, checksum correction.

Module 5
Petrol engines 1.6L, 2.0L, Ecoboost T-PROT7
Ford Focus 3: 1.6L Ecoboost GTDI 150 / 180PS (MED17)
Ford Mondeo 4: 2.0L Ecoboost GTDI 200 / 240PS (MED17)
Reading, writing, checksum correction. VBF writing and VBF to BIN conversion is supported!

Module 6
Petrol Engines 1.0, 1.6L, Ecoboost T-PROT12
Ford Focus 3: 1.0L Ecoboost GTDI 100 / 125PS (MED17)
Ford Kuga 2: 1.6L Ecoboost GTDI FWD 150PS (MED17)
Ford Fiesta: 1.0L Ecoboost GTDI 100 / 125PS (MED17)
Reading, writing, checksum correction. VBF writing and VBF to BIN conversion is supported!

Module 7
Ford Transit / Tourneo / Ranger, Land Rover Defender
Ford Transit 2007: 2.2L, 2.4L Diesel 85 / 100/115 / 140PS (DCU101-108, DCU201-208)
Reading, writing, checksum correction.
Ford Transit 2012: 2.2L Diesel 100 / 125/140 / 155PS (SID208)
Land Rover Defender 2012: 2.2L TD4 (SID208)
Ford Ranger: 3.2L Diesel (SID209)
Writing after unlocking in BSL, checksum correction.
Ford Transit 2012: 2.2L Diesel 100 / 125/140 / 155PS (SID208 / BSL)
Ford Ranger: 3.2L Diesel (SID209 / BSL)
Reading.
Ford Transit: 2.2L Diesel (SID211) [Unlocked]
Writing after unlocking in BSL with Module 53, checksum correction.
Ford Ranger: 2.5L Duratec (EMS2207)
Writing, checksum correction.

Module 8
Mazda 1st generation (2004– 2008 / 10)
Mazda: 1.6L Z6 AT (Mazda3 2004 + )
Mazda: 1.6L Z6 MT (Mazda3 2004 + )
Mazda: 1.3L ZJ (Mazda Demio 2003 + )
Mazda: 1.8L, 2.0L, 2.3L L8 / LF/L3 (Mazda3 / 6/CX7 2003 + )
Mazda: 1.3L N3 (Mazda RX8 2003 + )
Mazda: 1.3L N3 (Mazda RX8 -2008)
Mazda: 1.3L N3 (Mazda RX8 2009– 2012)
Mazda: 2.0L LF USA (Mazda3 -2009 / 1MB
Reading, writing, checksum correction.

Module 9
Mazda 2nd generation (2008 / 10-2012 / 13)
1.3L, 1.5L ZJ / ZY (Mazda2 2011 + )
1.5L ZY (Mazda2 US 2011 + )
1.6L Z6 (Mazda3 2010 + )
1.8L, 2.0L, 2.5L L8 / LF/L5 (Mazda6 2008 + )
2.0L, 2.3L, 2.5L LF / L3/L5 (Mazda3 / 5/CX7 2010 + )
2.0L LF (Mazda Biante 2013+ / 2MB)
Reading, writing, checksum correction.

Module 10
Mazda 3rd generation (2012 + )
Mazda: 1.5L, 2.0L, 2.5L SKYACTIV-G P5 / PE/PY (Mazda3 / CX5/6 SkyActiv Mitsubishi)
Mazda: 1.5L, 2.0L, 2.5L SKYACTIV-G P5 / PE/PY (Mazda3 / CX5/6 SkyActiv Denso)
Mazda: 2.5T SKYACTIV-G PY (Mazda CX9 SkyActiv Mitsubishi)
Mazda: 2.2L SKYACTIV-D SH (Mazda3 / CX5/6 SkyActiv Denso)
Mazda: 1.6L Z6 (Denso)
Reading, writing, checksum correction.

Module 11.
Mazda 3rd generation (2012 + ) crypto
Mazda: 1.5L, 2.0L, 2.5L SKYACTIV-G P5 / PE/PY (Mazda3 / CX5/6 SkyActiv Denso Crypted)
Mazda: 2.2L SKYACTIV-D SH (Mazda3 / CX5/6 Denso Crypted 2MB)
Mazda: 1.5L, 2.2L SKYACTIV-D S5 / SH (Mazda2 / 3/CX5 / 6 Denso Crypted 3.75MB)
Mazda: 1.6L Z6 (Denso Crypted)
Reading, writing, checksum correction.

Module 12
Honda / Acura CAN-bus
Honda: Honda PGM-FI Generic Read-Only
Honda: Honda AT / CVT/DCT Generic Read-Only
PGM-FI (Keihin SH7058 / 1MB)
PGM-FI (Keihin SH72543 / 2MB)
PGM-FI (Keihin SH72546 / 3.75MB)
PGM-FI (Keihin MPC5566 / 3MB)
PGM-FI (Keihin TC1782 / 2.5MB)
AT / CVT/DCT (Keihin 512KB)
AT / CVT/DCT (Keihin 1MB)
PGM-FI (Matsushita SH7058 / 1MB)
PGM-FI (Matsushita SH72543 / 2MB)
PGM-FI 2013+ (Matsushita SH72543 / 2MB) (Test)
PGM-FI (Panasonic TC179X / 4MB)
AT / CVT/DCT (Matsushita 512KB) (Test)
Honda: PGM-FI (Continental MPC5554 / 2MB)
PGM-FI (Hitachi SH7058 / 1MB) (Test)
PGM-FI (Hitachi SH7059 / 1.5MB) (Test)
PGM-FI (Hitachi SH72543 / 2MB)
PGM-FI (Hitachi MPC5554 / 2MB) (Test)
AT / CVT/DCT (Hitachi SH72531 / 1280KB)
AT / CVT/DCT (Hitachi SH725x3 / 2048KB)
Reading, writing, checksum correction.
UDCT (Continental TC1782 / 2.5MB)
Writing, checksum correction.

Module 13
Honda / Acura K-Line
Honda: Accord 7 2003-2005 (Matsushita RBA / RBB SH7055 / 512KB)
Honda: Accord 7 2006-2007 / TSX 2004-2005 (Matsushita RBA / RBB SH7055 / 512KB)
Acura: TSX 2006 (Matsushita RBB A56-A62 SH7058 / 1MB)
Honda: Accord / CR-V / Element / Legend / Odyssey / Ridgeline (Keihin SH7058 / 1MB)
Honda: Element / Inspire (Keihin SH7055 / 512KB)
Honda: Legend / Acura TL 2005-2007 (Keihin RJA SH7058 / 1MB)
Honda: CR-V 2002 / 2005-2007 (Keihin PPA / PNL SH7058 / 1MB)
Honda: Fit / Jazz / Airwave 2001-2007 (Keihin OKI ML66Q592 / 192KB)
Acura: MDX 2003-2007 (Motorola RDJ SH7055 / 512KB)
Honda: Accord 7 USA (Motorola RCA SH7055 / 512KB SH7058 / 1024K)
Only writing, checksum correction. Stock files database included!

Module 14
Petrol engines 1.6L, 2.0L, 2.3L, 2.5L Ford Mondeo 4
Ford Mondeo 4: 1.6L Sigma Ti-VCT 110 / 125PS (EMS2101)
Ford Mondeo 4: 2.0L Duratec HE (ESU312 Galaxy / S-Max 2006)
Ford Mondeo 4: 2.0L, 2.3L Duratec HE (ESU412 / 415)
Reading, writing, checksum correction.
Ford Mondeo 4: 2.5L Duratec I5 225PS (ME9.0)
Only writing, checksum correction. VBF writing and VBF to BIN conversion is supported!

Module 15
Nissan / Infinity K-Line
EFI SH705415N (Hitachi SH7054 / 384KB)
EFI SH705507N (UJ / Hitachi SH7055 / 512KB)
EFI SH705513N (Hitachi SH7055 / 512KB)
EFI SH705520N (Hitachi SH7055 / 512KB)
EFI SH705821N (Hitachi SH7058 / 1MB)
EFI SH705823N (Hitachi SH7058 / 1MB)
EFI SH705524N Almera Classic (Hitachi SH7055 / 512KB)
EFI SH705529N Almera Classic (Hitachi SH7055 / 512KB)
EFI SH705826N (Hitachi SH7058 / 1MB)
Reading, writing, checksum correction.

Module 16
Subaru Hitachi
Forester, Impreza, Legacy 2000-2002 K-Line (UJ WA12212920 / 128KB)
Forester, Impreza, Legacy 2000-2002 K-Line (UJ WA12212930 / 256KB)
Forester, Impreza, Legacy 2002-2005 K-Line (UJ / Hitachi WA12212940 / 384KB)
Forester, Impreza, Legacy 2002-2005 K-Line (UJ / Hitachi WA12212970 / 512KB)
Reading, writing.
Forester 2006, Impreza 2006-2007 K-Line (Hitachi WA12212970WWW / 512KB)
Forester 2007-2008, Impreza 2008 + , Legacy 2006+ CAN (Hitachi WA12212970WWW / 512KB)
Forester 2009-2011 / Legacy 2010-2011 CAN (Hitachi SH7058 / 1MB)
Forester 2013+ CAN (Hitachi SH7059 / 1.5MB)
Forester 2013+ CAN (Hitachi SH7254 / 2MB)
Reading, writing, checksum correction.

Module 17
Volkswagen K-Line
1.6L CFNA / CFNB / CLRA 7GV K-Line (Marelli 7GV / 832KB)
1.4L CGGB K-Line (Marelli 7GVE / 832KB)
1.6L BFQ K-Line (Simos 3.3A / 512KB)
1.4L BUD / BXW/CGGA / CGGB K-Line (Marelli 4HV / 832KB)
1.6L BSA / BSE/BSF Calibration K-Line (Simos 7.1 / 512KB)
1.6L BSA / BSE/BSF Calibration K-Line (Simos 7PP / 1MB)
1.2L BME / BZG/CGPA Calibration K-Line (Simos 9.1 / 512KB)
Reading, writing, checksum correction.

Module 18
Nissan / Infinity CAN-bus
EFI Generic Read-Only (Hitachi)
EFI SH705519N (Hitachi SH7055 / 512KB)
EFI SH705822N, SH705828N (Hitachi SH7058 / 1MB)
EFI SH705927N (Hitachi SH7059 / 1.5MB)
EFI SH725331N (Hitachi SH72531 / 1.25MB)
EFI S7253332N (Hitachi SH72533 / 2MB)
Koleos / Latitude 2.5 SH705822N (Hitachi SH7058 / 1MB)
Koleos 2 2.5L S7253332N (Hitachi SH72533 / 2MB)
Reading, writing, checksum correction.

Module 19
Kia / Hyundai
Kia / Hyundai: 1.4L, 1.6L (M(G)7.9.8)
Kia / Hyundai: 1.1L-1.6L (M(G)7.9.7)
Only writing, checksum correction.
Kia / Hyundai: 1.4L, 1.6L (ME17.9.11 / 12/13)
Kia / Hyundai: 1.4L, 1.6L (ME(G)17.9.21)
Kia / Hyundai: 1.6L, 3.0L (ME17.9.2 / ME(D)(G)17.9.8)
Reading, writing, checksum correction.

Module 20
Ford Focus 2/Fiesta / Fusion (automatic transfer for VID area)
Ford Focus 2: 1.4L, 1.6L Duratec 85 / 100/115PS (SIM28 / 29)
Ford Focus 2: 1.8L, 2.0L Duratec HE 125 / 145PS (ESU131 / 411/418)
Ford Focus 2: 1.8L, 2.0L Duratorq Lynx / DW10C (SID202 / SID206)
Ford Fiesta / Fusion: 1.4L, 1.6L Duratec 85 / 100PS (SIM210)
Ford Focus 2 ST: 2.5L Duratec I5 225PS (ME9.0)
Reading, writing, checksum correction.
Ford Kuga 1: 2.5L Duratec I5 200PS (ME9.0)
Writing, checksum correction.

Module 21
Ford USA (automatic transfer for VID area)
Mazda6 3.0L AJ 2003-2005
Escape, Explorer, Mazda CX9 -2009 (PCM150F)
Explorer, Mazda CX9 2010-2011 / 2012 (M799G)
Focus 2008-2011 (GreenOak / PCM190)
Escape, Mariner, Tribute 2009-2011 (9L8A)
Ford F350 6.0L (BlackOak / PCM122 / 448KB)
Expedition, Navigator 5.4L (Bosch ME9.8 / 2048KB)
F-150 5.4L (Bosch MEG9.8.1 / 2536KB)
Reading, writing, checksum correction
Mustang 2005-2009 (PCM170F)
Reading, writing.

Module 22
Renault
Valeo V40 / V42 (SH7058 / 1024KB)
Sagem 3000 (SH7055 / 512KB)
EMS3110 (TC1766 / 1504KB)
Logan, Sandero, Fluence, Megane, Almera EMS3120 (TC1738 / 2048KB)
Duster, X-Ray EMS3125 (TC1782 / 2560KB)
Clio 4 1.6T EMS3150 (TC1767 / 2048KB)
Nissan: Juke 1.2T EMS3155 (TC1782 / 2560KB)
Reading, writing, checksum correction.

Module 23
Subaru Denso
2.5L, 3.0L, 2.0T, 2.5T Denso 2003+ K-Line (SH7055 / 512KB)
2.5L, 3.0L, 2.0T, 2.5T Denso 2003+ K-Line (SH7055S / 512KB)
2.5L, 3.0L, 2.0T, 2.5T Denso 2003+ K-Line (SH7058 / 1MB)
2.5L, 3.0L, 2.0T, 2.5T Denso 2007+ CAN-bus (SH7058S / 1MB)
2.0L, 2.5L, 3.0L, BRZ Denso 2013+ CAN-bus (SH72531 / 1.25MB)
1.6L, 2.0L DI Denso 2018+ CAN-bus (1N83M / 1.5MB)
2.0L Denso Diesel Euro 4 CAN-bus (SH7058S / 1MB)
2.0L Denso Diesel Euro 5 CAN-bus (SH7059 / 1.5MB)
2.0L Denso Diesel Euro 6 CAN-bus (SH72543 / 2MB)
Reading, writing, checksum correction.

Module 24
Mitsubishi CAN-bus
MH Generic Read-Only
Colt MT (MH8304F / 512KB)
Colt AT (MH8304F / 768KB)
Colt RallyArt 1.5T (MH8104F / 512KB)
Pajero AT (2007-) (MH8304F / 768KB)
Pajero Sport (2010-) (MH8106F / 1MB)
L200 2.4L MT (2008-) (MH8302F / 512KB)
Lancer X 1.5L (2007-), Outlander XL JDM (MH8104F / 512KB)
ASX (-2013), Lancer X 1.6 / 1.8/2.0L, Outlander XL (MH8106F / 1MB)
ASX (2013-), Mirage, Outlander 3 (2013-) (MH8115F / 1.25MB)
Galant 9 2.4L (2005-) (MH8304F / 768KB)
Pajero MT (2007-) (MH8302F / 512KB)
Eclipse Cross (2018-) (MH8601 / 4MB) (MH8115F / 1.25MB)
Expander (2018-) (MH8611 / 2MB)
Reading, writing, checksum correction.

Module 25
Renault / Nissan 1.5dCi
1.5L dCi Delphi DCM 1.2 (ST10 / 512KB)
1.5L dCi Delphi DCM 3.4 (SH7059 / 1536KB)
1.5L dCi SID 301 / 303/304 (MPC562 / 2MB)
1.5L dCi SID 305 / 306 (TC1766 / 1504KB)
1.5L dCi SID 307 (TC1767 / 2MB)
2.3L dCi SID 309 (TC1767 / 2MB)
Nissan Juke 1.5L dCi SID 310 (TC1767 / 2MB)
Reading, writing, checksum correction.

Module 26
Mitsubishi Diesel CAN-bus
Denso Diesel (SH7058 / SH7058S / 1MB SH7059 / 1.5MB SH72543 / 2MB)
Reading, writing, checksum correction.

Module 27
Nissan CAN-bus 2nd generation
EFI SH72533 Gen 2 (2014 + ) Calibration (Hitachi SH72533 / 2MB)
Renault Samsung 1.6T (Hitachi SH72533 / 2MB)
Reading, writing, checksum correction.

Module 29
Ford PWM (Ford VCM2 or Scanmatik is required)
Mondeo 3 1.8L, 2.0L, 2.5L, 3.0L Duratec HE (LEVANTA)
EEC-V 216K (EEC-V)
3.0L, 4.0L, 4.6L Duratec V6 / V8 (PCM150)
Reading, writing, checksum correction
1.8L, 2.0L, 2.2L Duratorq TDCi (Visteon)
1.8L, 2.0L, 2.2L Duratorq TDCi (Delphi)
Reading, writing

Module 30
Kia / Hyundai SIM2K
2.0L, 2.4L (SIM2K-140)
2.0L, 2.5L (SIM2K-D160)
2.0L, 2.4L (SIM2K-141 / 142/341)
2.0L (SIM2K-C201)
2.0L, 2.0T (SIM2K-240 / 241/242 / 245)
Reading, writing, checksum correction.

Module 31
Mitsubishi K-Line
K-Line / Bootloader (MH720xF / MH810xF / MH820xF / MH830xF / MH8115)
Reading, writing, checksum correction.

Module 32
Ford Focus 3 2015, Ford Explorer 2016, Ford Kuga 2 2017
Ford Fiesta: 1.0L Ecoboost GTDI 100 / 125PS [C1BA] (MED17)
Ford Focus 3 2015: 1.0L Ecoboost 2015+ GTDI 100 / 125PS [DA6A] (MED17)
Ford Focus 3 2015: 1.5L Ecoboost 2015+ GTDI 150 / 180PS [FV6A] (EMS2510 / EMS2511)
Ford Kuga 2 2017: 1.5L Ecoboost 2015+ GTDI 150 / 180PS [FV6A] (EMS2510 / EMS2511)
Ford Explorer 2016: 3.5L Cyclone V6 Ti-VCT 249 / 294PS (2016)
Ford Mondeo 5: 1.5L Ecoboost GTDI MT 150 / 180PS (MED17)
Ford Mondeo 5: 2.5L Duratec Ti-VCT 150 / 171PS [GV6A] (EMS24XX)
Reading, writing, checksum correction.

Module 33
Ford EcoSport / Fiesta 2015 +
2.0L Duratec HE 140PS (IAW 7GFR.HR)
Reading, writing, checksum correction.
1.6L Sigma Ti-VCT 85 / 105/110 / 122PS (EMS2211)
1.6L Sigma Ti-VCT USA [C1BA] (EMS2214)
Writing, checksum correction.

Module 34
Kia / Hyundai EDC15 / EDC16
2.0L, 2.5L CRDI K-Line (EDC15C7)
2.0L, 2.2L, 2.5L CRDI K-Line Calibration (EDC16C39)
3.0L CRDI K-Line Calibration (EDC16CP34)
Reading, writing, checksum correction.
2.0L, 2.2L, 2.5L CRDI (EDC16C39)
3.0L CRDI (EDC16CP34)
Writing, checksum correction.

Module 35
Toyota / Lexus / Scion / Hino
76F0038 / 39/40 / 70/85, MPC565 / SH72512 / SH72544 CAN-bus
76F0038 / 39/40 / 50/70 / 85, 70F4019 GearBox CAN-bus
76F0038 / 39/40 / 50/70 / 85 HV Control CAN-bus
76F0004 / 23/38 / 39/40 / 70/85, MPC565 K-Line
Writing, checksum correction.

Module 36
Kia / Hyundai EDC17
1.6L, 2.0L CRDI (EDC17C08 / TPROT3)
2.0L, 2.2L CRDI (EDC17CP14 / TPROT3)
2.0L, 2.2L CRDI (EDC17CP14 / TPROT11)
1.6L, 2.0L CRDI (EDC17C53)
2.2L CRDI (EDC17C57) (after unlocking with Module 53 or 71)
Reading, writing, checksum correction.

Module 38
Renault K-Line
Duster 1.6L 2WD EMS3130 (ST10 / 512KB)
EMS3132 MT (C167 / 256KB)
EMS3134 AT (C167 / 512KB)
Sagem 3000 (SH7055 / 512KB)
Sirius 35 (C167 / 512KB)
Reading, writing, checksum correction.

Module 40
Kia / Hyundai SIMK
2.0L, 2.7L K-Line (SIMK-41 / 43)
2.0L, 2.4L CAN (SIMK-43 / SIM2K-47)
Reading, writing, checksum correction.

Module 42
Denso SH705X Bootloader
SH7055 / SH7058(S) / SH7059 FLASH (512KB / 1024KB / 1536KB)
Reading, writing, checksum correction.
Mazda3 Z6 -2009 SH7055 / SH7058 EEPROM (56)
Mitsubishi / Nissan / Subaru Diesel SH7058(S) / SH7059 EEPROM (86)
Subaru Metal-Case SH7055 / SH7058 EEPROM (56)
Subaru Plastic-Case SH7058 EEPROM (86)
Subaru Plastic-Case SH7058S EEPROM (56)
Subaru Plastic-Case SH7058S EEPROM (86)
Suzuki Liana / Jimny SH7055 EEPROM (56)
Suzuki SH7055 / SH7058 EEPROM (56)
Suzuki SH7058S EEPROM (56)
Volvo SH7058 EEPROM (56)
Opel 1.7L CDTI SH7058 / SH7059 EEPROM (86)
Trucks SH7058(S) / SH7059 EEPROM (25A320 / 640/128)
Reading, writing.

Module 43
Land Rover EDC17СP42 / MED17
Freelander 2/Evoque / Discovery Sport 2.2L I4 Diesel (EDC17CP42)
Ford Mondeo 4 2.2L DW12C STAGE 5 (EDC17CP42)
Freelander 2 2.2L I4 Diesel (EDC16CP39)
Freelander 2/Evoque 2.0L Ecoboost GTDI (MED17)
Jaguar XF (X250) 2.0L Ecoboost GTDI (MED17.9.7)
Reading, writing, checksum correction.

Module 45
MB Sprinter 906 / 909 EDC16CP31
Sprinter (906) 2.2L CDI (EDC16CP31-6)
Sprinter (909) 2.2L CDI (EDC16CP31-8)
Dodge Sprinter (906) 3.0L CDI (EDC16CP31-6)
Reading, writing, checksum correction.

Module 46
Toyota / Lexus / Scion / Hino 2 Generarion
76F0196 / 198/199 / 219 CAN-bus
Writing, checksum correction.
76F0196 / 198/199 / 219 P5-CAN-bus
76F0199 GearBox P5-CAN-bus
Reading, writing, checksum correction.

Module 47
Mitsubishi Gearbox CAN-bus
CVT Lancer X/ASX 1.8 / 2.0L, Outlander XL / 3 2.0 / 2.4L (MH8104F / 512KB MH8106F / 1MB)
AT Pajero Sport (2010-), Lancer X 1.5 / 1.6L (MH8102F / 512KB)
AT Outlander XL 3.0L (MH8104F / 512KB)
Reading, writing.
TC-SST Getrag 6DCT470
Getrag 6DCT470 Boot (MICRO)
Getrag 6DCT470 Boot (EEPROM
Reading, writing, checksum correction.
CVT ASX / Outlander 3/Eclipse Cross 1.5T / 2.0L / 2.4L (MH8115F / 1.25MB)
Reading, writing, checksum correction.

Module 48
VAG ME(D)17 UDS
1.4L, 1.8L TSI (MED17.5 / MED17.5.2 / MED17.5.5)
1.0L, 1.2L, 1.4L TSI (MED17.5.21 / MED17.5.25 / MED17.1.27)
1.0L, 1.6L MPI (ME17.5.20 / ME17.5.24 / ME17.5.26)
1.4L TSI, 2.0L, 2.5L, 4.0L TSI, 4.2L FSI (MED17.1 / 17.1.1 / 17.1.10 / 17.1.61 / 17.1.62)
1.4L TSI, 3.6L FSI (MED17.1.6 / MED17.1.21)
5.2L FSI Master / Salve (MED17.1.1)
Virtual reading, writing, checksum correction.

Module 50
VAG EDC17CP44, EDC17C46, EDC17C64
2.0L, 3.0L TDI (EDC17CP04 / EDC17CP14 / EDC17CP20 / EDC17CP24)
3.0L TDI (EDC17CP44)
4.2L TDI (EDC17CP24 / EDC17CP44)
2.0L TDI (EDC17C46)
2.0L TDI (EDC17C54)
1.6L, 2.0L TDI (EDC17C64)
2.0L TDI (EDC17C74)
3.0L TDI (EDC17CP54)
Virtual reading, writing, checksum correction.

Module 52
Kia / Hyundai Delphi MT38 / 86
2.7L, 3.3L, 3.8L (MT38 / CAN)
Writing, checksum correction.
2.7L, 3.3L (MT38 / K-Line)
2.7L, 3.3L, 3.8L (MT38 / BSL)
3.3L, 3.8L, 5.0L (MT86)
Reading, writing, checksum correction.

Module 53
Infineon Tricore BSL
TC1762 / TC1766 MICRO (1504KB)
TC1762 / TC1766 EEPROM (32KB)
TC1792 / TC1796 MICRO (2048KB)
TC1796 MICRO + EXT (4096KB / 6144KB)
TC1796 EXT (2048KB / 4096KB)
TC1792 EEPROM (64KB)
TC1796 EEPROM (128KB)
TC1738 / TC1767 MICRO (2048KB)
TC1738 / TC1767 EEPROM (64KB)
TC1797 MICRO (4096KB)
TC1797 EEPROM (64KB)
TC1797 MICRO + EXT (6144KB / 8192KB)
TC1797 EXT (2048KB / 4096KB)
TC1724 / TC1728 MICRO (1536KB)
TC1724 / TC1728 EEPROM (64KB)
TC1782 / TC1784 MICRO (2560KB)
TC1782 / TC1784 EEPROM (128KB)
TC1791 / TC1793 MICRO (4096KB)
TC1791 / TC1793 EEPROM (192KB)
TC1791 / TC1793 MICRO + EXT (6144KB / 8192KB)
TC1791 / TC1793 EXT (2048KB / 4096KB)
Delphi MT86 EEPROM (16KB)
Delphi CRD3.1 EEPROM (32KB)
Bosch, Siemens / Continental, Delphi ECUs, etc. Reading, writing, checksum correction for most ECUs.
Possible password reading for SIM2K-24x, Ford EMS22XX, Ford SID20X, Bosch, Bosch GPT, etc.

Module 54
Delphi DCM3.7 / AP (SH72513 / 72543 / 72544)
Kia / Hyundai 2.5L CRDI (DCM3.7AP)
Opel / Chevrolet 2.0L, 2.2L CDTI (DCM3.7)
SsangYong 2.0L XDI (DCM3.7AP)
VAG 1.2L TDI (DCM3.7)
Great Wall / Haval 2.0L TD (DCM3.7)
Reading, writing, checksum correction.

Module 55
Kia / Hyundai Kefico / Denso
Kia / Hyundai 2.5L CRDI (SH72546)
Hyundai Euro 5 (Denso SH7058S)
Hyundai Euro 6 (Denso SH72543)
Reading, writing, checksum correction.

Module 56
Ford SID807EVO / EDC17C10 / EDC17C70
Ford Focus 3: 1.6L DV6C (SID807EVO)
Ford Mondeo 4: 1.6L DV6C (SID807EVO)
Writing after unlocking, checksum correction.
Ford 1.6L DV6C (SID807EVO / BSL) Reading.
Ford Focus 3: 1.6L ECOnetic 105PS 2012+ (EDC17C10)
Ford Fiesta: 1.4L, 1.6L DV4 / DV6 75 / 95PS 2010-2011 (EDC17C10)
Ford Fiesta: 1.5L, 1.6L DV5 / DV6 70 / 75/95PS 2012+ (EDC17C10)
Ford Focus 3: 1.5L DV5F 90 / 105/120PS (EDC17C70)
Ford Fiesta: 1.5L DV5F 90 / 105/120PS (EDC17C70)
Reading, writing, checksum correction.

Module 57
SIMOS 8/10 / 11/12 / PCR2.1
2.8L V6 FSI (SIMOS8.1)
3.2L V6 FSI (SIMOS8.2)
Reading, writing, checksum correction.
3.0L V6 TFSI (SIMOS8.3)
3.0L V6 TFSI (SIMOS8.4)
3.0L V6 TFSI (SIMOS8.5)
Virtual reading, writing, checksum correction.
2.8L V6 FSI (SIMOS8.6)
Reading, writing, checksum correction (map area reading / writing after unlocking in BSL! )
SIMOS8.6 (EEPROM / UNLOCK / BSL)
Reading, writing (EEPROM reading / writing, ECU unlocking)
1.2L TSI (SIMOS10)
1.2L MPI (SIMOS11)
Virtual reading, reading, writing, checksum correction.
1.6L TDI (PCR2.1)
Reading, writing, checksum correction (map area reading / writing after unlocking in BSL! )
PCR2.1 (EEPROM / UNLOCK / BSL)
Reading, writing (EEPROM reading / writing, ECU unlocking).

Module 58
VAG DSG / CVT
DQ200MQB / G2 (0CW)
DQ250MQB (0D9)
Reading, writing, checksum correction
VL381 / DL382 (0AW / 0CK)
DL501 / G2 (0B5)
DQ200 (0AM)
DQ250E / F (02E)
VL300 / V30 (01J / 0AN)
Writing, checksum correction
DQ200 / MQB/G2 Boot (EEPROM)
DQ250E / F/MQB Boot (EEPROM)
DL501 / G2 Boot (EEPROM)
VL381 Boot (EEPROM)
DL382 Boot (EEPROM)
Honda UDCT Boot (Continental TC1782 / EEPROM)
Reading, writing
DQ200 / MQB/G2 Boot (MICRO)
DQ250E / F/MQB Boot (MICRO)
VL381 Boot (MICRO)
DL501 / G2 Boot (MICRO)
DQ500 (0BH / 0BT)
VL300 / V30 BSL (FLASH)
VL300 / V30 BSL (EEPROM)
DQ250C (02E)
DL382 Boot (MICRO)
Honda UDCT Boot (Continental TC1782 / MICRO)
Reading, writing, checksum correction.
Module 59
Renault / Nissan UDS
1.2T EMS3155 UDS (TC1782 / 2.5MB)
1.5L dCi SID309 UDS (TC1767 / 2MB)
1.5L, 2.3L dCi SID310 UDS (TC1791 / 3MB)
1.6L dCi EDC17C84 UDS (TC1782 / 2.5MB)
1.8T, 2.0T Hitachi UDS (RH850 / 4MB)
Reading, writing, checksum correction.
1.6L dCi EDC17C84 UDS (Injectors)
Reading, writing.

Module 60
Citroen / Peugeot (PSA) SID208
Citroen / Peugeot 2.2L HDi (SID208)
Reading, writing, checksum correction (reading / writing after unlocking in BSL! )
Citroen / Peugeot 2.2L HDi (SID208 / BSL)
Reading, unlock.

Module 61
Kia / Hyundai CPGDSH / CPEGD
1.6L (CPGDSH2.24.1 / CPEGD2.20.1 / UDS
Reading, writing, checksum correction.
1.4T, 1.6L (CPEGD2.20.3 / CPEGD2.20.4 / UDS) - requires direct connection to the ECU
1.0L, 1.2L (CPEGP2.10.1 / CPGPSH2.14.1 / UDS)
Reading, writing, checksum correction, unlocking

Module 62
Ford / Getrag 6DCT450
PowerShift TCM (6DCT450)
PowerShift 6DCT450 Boot (MICRO)
PowerShift 6DCT450 Boot (EEPROM)
PowerShift 6DCT451 TCM GGDS
PowerShift 6DCT451 [XPS6 Gen3] Boot (MICRO)
PowerShift 6DCT451 [XPS6 Gen3] Boot (EEPROM)
Reading, writing.

Module 63
Renault DC4
EDC DC4 Gearbox (TC1766 / 1506KB)
Reading, writing, checksum correction.

Module 64
Mitsubishi Fuso Canter
Fuso Canter (EDC7C4-6 / EDC16C31)
Fuso Canter Euro 5 CAN-bus (EDC17CP15)
Fuso Canter Euro 5 CAN-bus (EDC17CP52)
Reading, writing, checksum correction.

Module 65
VAG MED17 / EDC17 CAN TP2.0 / K-Line
EDC17U01 / U05/CP04 / CP14 K-Line
ME17 / MED17 / EDC17 CAN TP2.0
EDC17CP20 VW Crafter 2.5L TDI
Virtual reading, writing, checksum correction.

Module 66
Honda Bosch
PGM-FI (Bosch EDC17CP06 / EDC17CP16 / 2MB)
Writing, checksum correction.
PGM-FI (Bosch EDC17CP50 / 4MB) [Unlocked]
PGM-FI (Bosch EDC17C58 / 4MB) [Unlocked]
PGM-FI (Bosch EDC17C72 / 2.5MB) [Unlocked]
PGM-FI (Bosch MED17.9.3 / 4MB) [Unlocked]
PGM-FI (Bosch ME17.9.55 / 1.5MB) [Unlocked]
Writing after unlocking with Module 53 or 71, checksum correction.

Module 67
Nissan Bosch
EFI ME7.9.20 Calibration (Bosch ST10F275 EXT / 512KB)
Writing, checksum correction.

Module 68
JLR Denso
Freelander 2 (L359) 3.2L V6 233PS (Denso)
Jaguar XF / XJ/XK (X250 / X350 / X351 / X150) 3.0L V6, 3.5L V8, 4.2L V8 / SC (Denso)
Range Rover / Sport / Discovery 3 4.0L V6, 4.4L V8, 4.2L V8 / SC (Denso)
Range Rover (L320 / L322 / L319), Jaguar (X150 / X250 / X351) 5.0L V8 / SC (Denso)
Reading, writing, checksum correction.

Module 69
Mercedes-Benz MED17 / EDC17
MED17.7.1 / 17.7.2 / 17.7.3 / 17.7.3.1 / 17.7.5
Virtual reading, writing, checksum correction.
MED17.7.1 / 17.7.2 / 17.7.3 / 17.7.3.1
Writing, checksum correction.
EDC17CP01 / CP10 (only ECUs with extrenal FLASH memory)
EDC17CP46 / CP57 / CP60 / C66
Reading, writing, checksum correction.

Module 70
Jeep EDC17
2.8L CRDI (EDC17CP27) [Test]
3.0L CRDI (EDC17C49 / C79) reading may require direct connection to the ECU
Reading, writing, checksum correction.

Module 71
Bosch MEDC17 Bootloader
(direct connection to the ECU connector, Scanmatik 2 Pro, a connection cable and a power supply are required)
MEDC17 (TC1762 / 1766 / 1792 / 1796) FLASH
MEDC17 (TC1724 / 1728 / 1767 / 1782 / 1784 / 1797) FLASH
MEDC17 (TC1791 / 1793) FLASH
Reading, writing, checksum correction.
MEDC17 (TC1762 / 1766 / 1792 / 1796) EEPROM
MEDC17 (TC1724 / 1728 / 1767 / 1782 / 1784 / 1797) EEPROM
MEDC17 (TC1791 / 1793) EEPROM
Reading, writing.
MEDC17 BSL PASSWORD
Reading.

Module 72
Mazda Gen 4
1.5L, 2.0L, 2.5L SKYACTIV-G P5 / PA/PE / PY MY2019 (Mitsubishi) [PYFA]
1.5L, 2.0L, 2.5L SKYACTIV-G P5 / PA/PE / PY MY2019 (Denso) [PYFB]
Reading, writing, checksum correction.

Module 73
Ford MG1
Ford F-150: 3.5L Ecoboost V6 (MG1CS015) [HL3A]
Ford Fiesta 8: 1.5L Ecoboost MT (MG1CS016) [JX6A]
Ford Focus 4: 1.0L, 1.5L Ecoboost MT (MG1CS016) [JX6A]
Ford Focus 4: 1.5L Ecoboost AT (MG1CS017) [JX6A]
Ford Mustang 6: 2.3L Ecoboost (MG1CS017) [JR3A]
Ford Edge: 2.7L Ecoboost (MG1CS018) [K2GA]
Ford F-150: 2.7L Ecoboost (MG1CS018) [JL3A]
Ford Mustang 6: 5.0L Coyote V8 (MG1CS019) [JR3A]
Ford F350: 6.2L, 7.3L Boss V8 (MG1CS019) [LC3A]
Reading, writing, checksum correction

Module 74
Toyota / Lexus Gen 3
R7F701202 / R7F701216 P5-UDS
Reading, writing, checksum correction

About the Extend Modules, Adapters, USB Dongle for PCMtuner

1. the OBDII Breakout Box GODIAG GT105

1. Also be named as GODIAG ECU IMMO Prog AD GT105

2. Can indicate data communication.

3. Activate/wake up instrument or immo ECU when all keys lost.

4. Realize the uninterruptible power supply during the battery replacement, so it can prevent data loss, key failure or re-matching caused by power interruption during the battery replacement.

5. Suitable for outdoor work, taking power from the car battery and converting it into a DC12V power supply for 12V charging, programming power, or independent power supply for diagnostic equipment.

2. the Curent display dsg gearbox adapter GODIAG GT107+

Features:

1. It is the upgraded version of Godiag GT107,added voltage current display.

2. Suitable for connecting VAG series gearbox ECUs, supporting gearbox ECU DQ250, DQ200, VL381, VL300, DQ500, DL501, Benz, BMW

3. the OBD Breakout box + DSG Gearbox Adapter = GODIAG GT105 ECU IMMO Kit + GODIAG GT107 DSG Gearbox Data Read/Write Adapter for DQ250, DQ200, VL381, VL300, DQ500, DL501
Features:

1. Combined package with Godiag GT105+GT107

2. Compatible with PCMTuner, Kess V2, PCMFlash, KTMBench etc



4. the PCM Tuner Smart Dongle Features:

1. Compatible with Old KTM BENCH, KTM100, KTMOBD, Original Scanmatik2 Pro.

2. PCMtuner Dongle can work for J2534 obd, V1.20 original pcm flash software

3. Free update. No subscription, no annual fee.

4. Containing 67 software modules, all licenses for the modules are on the dongle.

5. Master version, save data in bin format, data not encrypted.

6. Work offline, VR NEED online. Read/Write VR (have VR account for users).

7. With integrated scanmatik2

8. Helpdesk supply free Damaos for tuner (Free damaos as WinOLS damaso file ,WinOLS damaos and MAP package)
